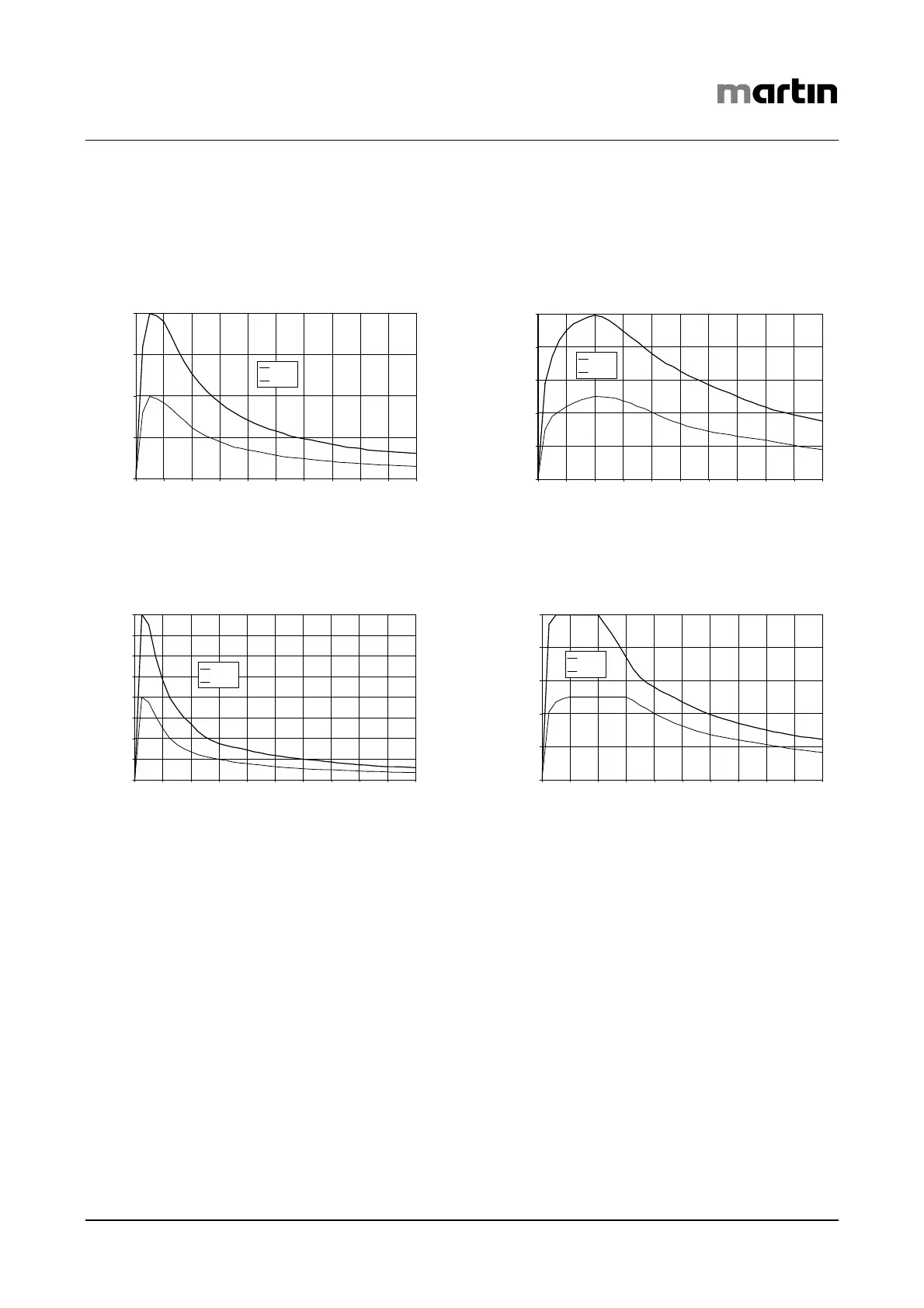

15.4 Performance Diagrams / Bipolar Coagulation Currents
100% = maximum power setting
50% = half of maximum power setting
maxium Macro Coag, maxium Macro Stop,
maxium Auto Macro
maxium Micro Coag, maxium Micro Stop,
maxium Auto Micro
HF output power in watts HF output power in watts
Connection resistance in ohms Connection resistance in ohms
maxium Seal Safe* maxium Endo Seal*
HF output power in watts HF output power in watts
Connection resistance in ohms
*Power within coag pulse
Connection resistance in ohms
*Power within coag pulse
