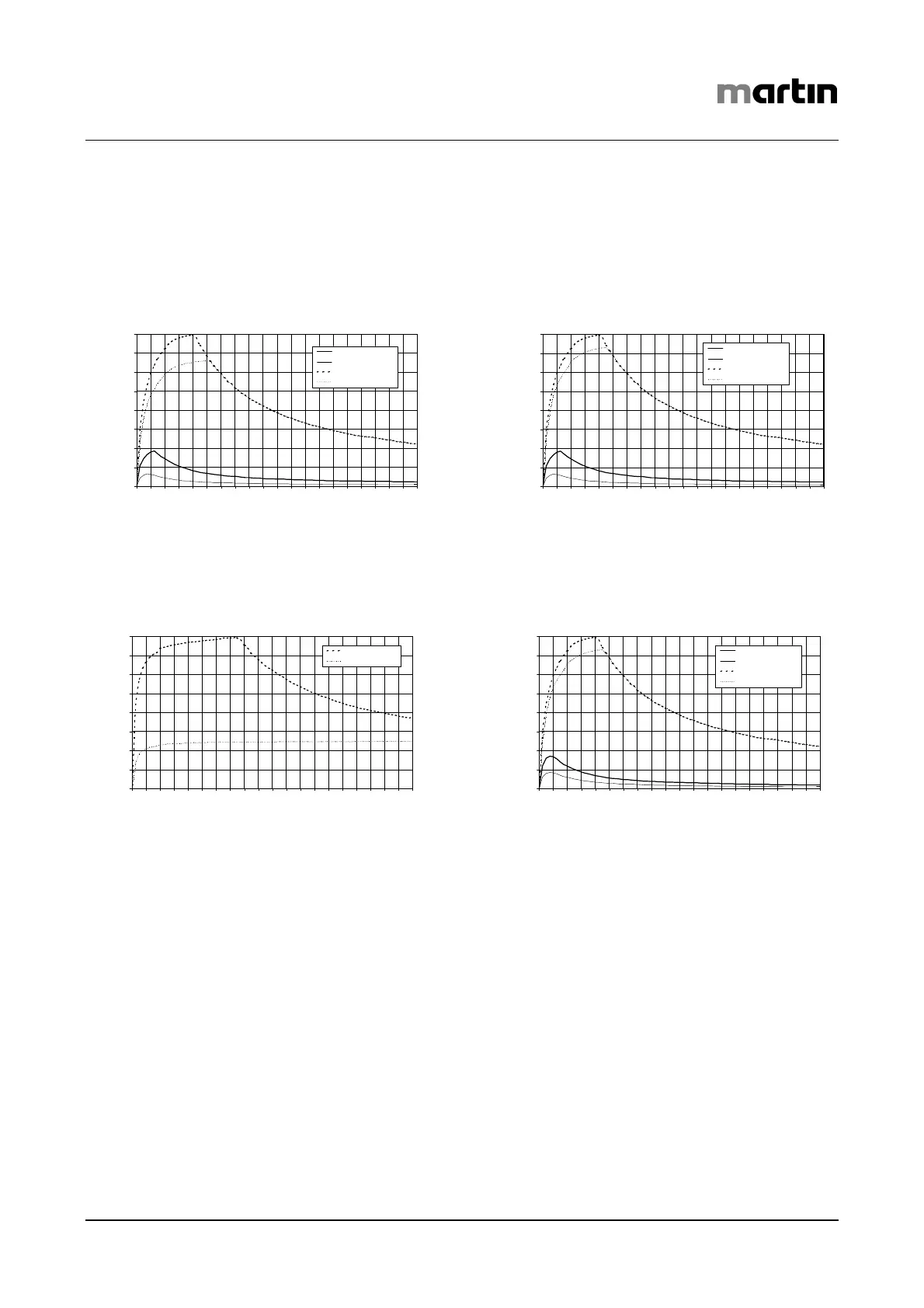

Fractionated monopolar cutting currents
1 = maximum power setting
2 = half of maximum power setting
maxium Polyp I* maxium Polyp II*
HF output power in watts HF output power in watts
Connection resistance in ohms Connection resistance in ohms
maxium Papilla I* maxium Papilla II*
HF output power in watts HF output power in watts
Connection resistance in ohms Connection resistance in ohms
* Intermittent currents. Specified power output relates to starting phase of pulse. Average output
power is lower.
