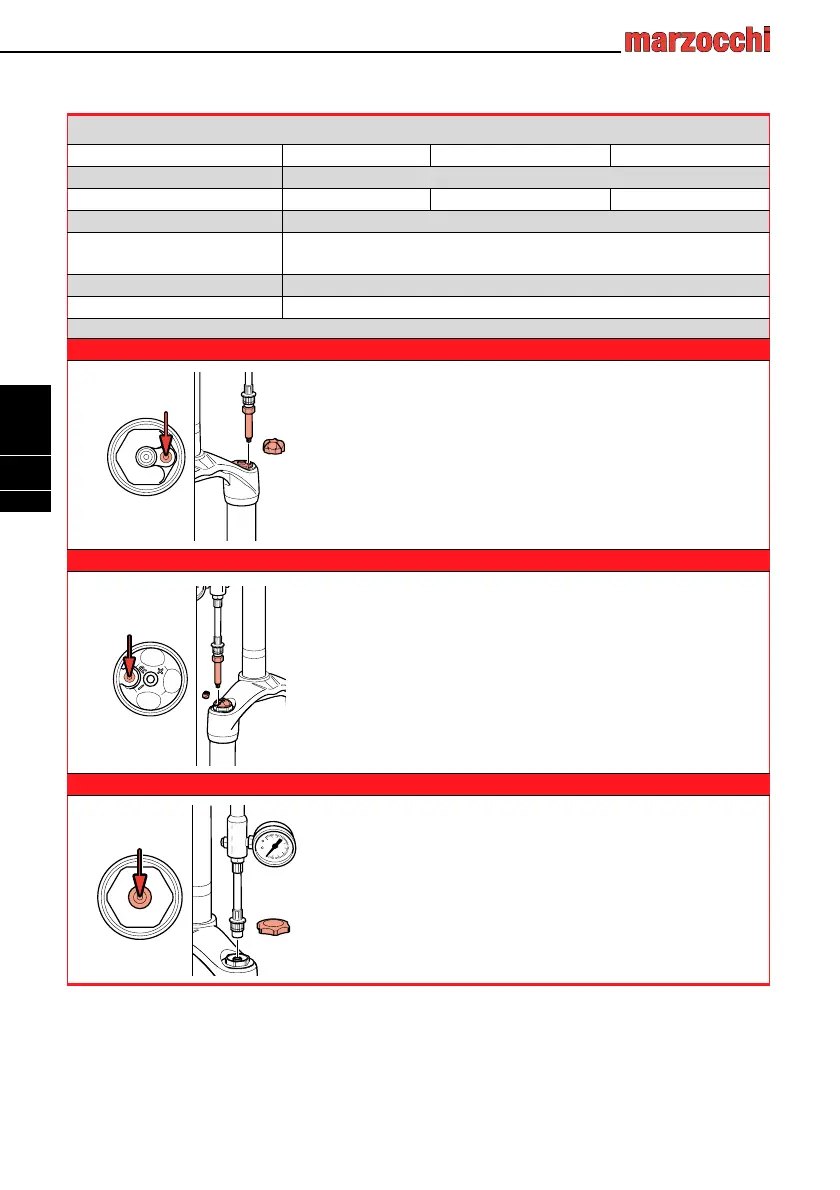

Table 14 - Z1
Z1
Z1 SL Doppio Air Z1 Light Z1 Sport
Legs’ diameter ø 32 mm
Available travels 130 mm - 150 mm*
Wheel dropout type ø 20mm through-hole axle
Max disk dimension
XC INTL STD 6” (The installation of 8" disk is only possible when the
specific adapter is supplied by the brake system manufacturer
)
V-brake fit No
Max wheel dimensions 2.8” x 26”
* adjustable by changing the negative air
Z SL Doppio Air
Positive air - DOPPIO-AIR cartridge - Left leg
Unscrew and remove the protection cap.
Tighten the pump adapter on the external valve and inflate till
reaching the pressure you wish. Retighten the protection cap
Z1 SL Doppio Air Z1 Light
Positive air - RC2 cartridge - Right leg
Remove the rubber protection cap marked with “AIR” and turn
the adjuster till uncovering the air valve.
Tighten the pump adapter on the valve and inflate till reaching
the pressure you wish. Refit the rubber protection cap and re-
adjust with the adjuster
Z1 Light
Spring preload with air - Left leg
(Not present in the version with + ETA option)
Remove the protection cap.
Tighten the pump on the valve and inflate till reaching the
pressure you wish. Refit the protection cap
AIR
AIR
AIR
