Summarizing tables
MZ034
English
6
161

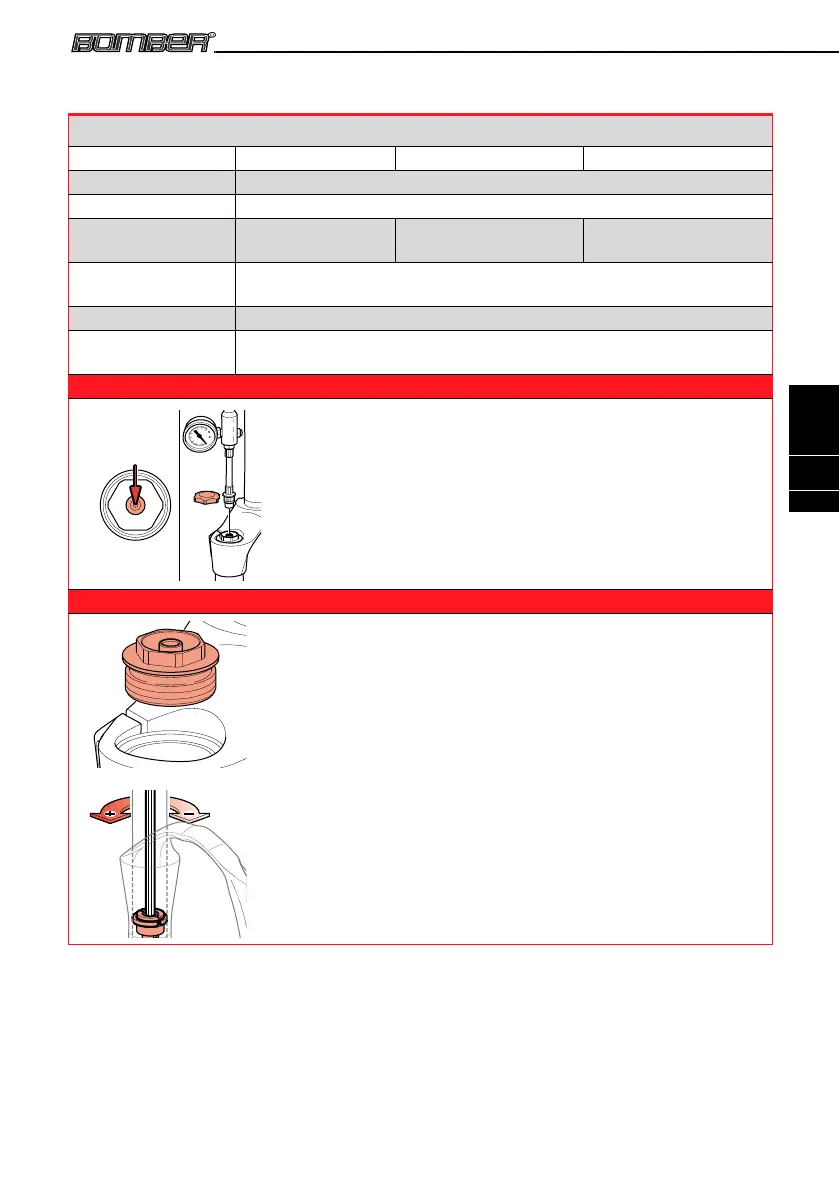

Table 16 - Dirt Jumper
Dirt Jumper
Dirt Jumper I Dirt Jumper II Dirt Jumper III
Legs’ diameter ø 32mm
Available travels 80 mm - 100 mm
Wheel dropout type
ø 20mm through-
hole axle
ø 20mm through-hole
axle
Standard (ø 20mm through-
hole axle as an optional
)
Max disk dimension
XC INTL STD 6” (The installation of 8" disk is only possible when the specific
adapter is supplied by the brake system manufacturer
)
V-brake fit No
Max wheel
dimensions
2.8” x 26”
Dirt Jumper I Dirt Jumper II Dirt Jumper III
Spring preload with air - Both legs
Remove the protection cap.
Tighten the pump on the valve and inflate till reaching the pressure
you wish.
Refit the protection cap
Dirt Jumper III
Rebound adjustment by internal adjuster - Right leg
Using a small pin extractor eliminate any pressure from the right leg.
Unscrew and remove the protection cap with a 21mm cap key.
Insert a 12mm tee-key into the stanchion being very careful to
center the notch of the adjuster.
By turning the adjuster counter-clockwise, you increase the
hydraulic damping making the fork slower during the rebound
phase.
By turning the adjuster clockwise, you reduce the hydraulic damping
making the fork more reactive during the rebound phase.
After adjustment, refit and tighten the protection cap to the
recommended tightening torque.
Re-inflate to the recommended air pressure value
AIR
