Summarizing tables
MZ034
English
6
165

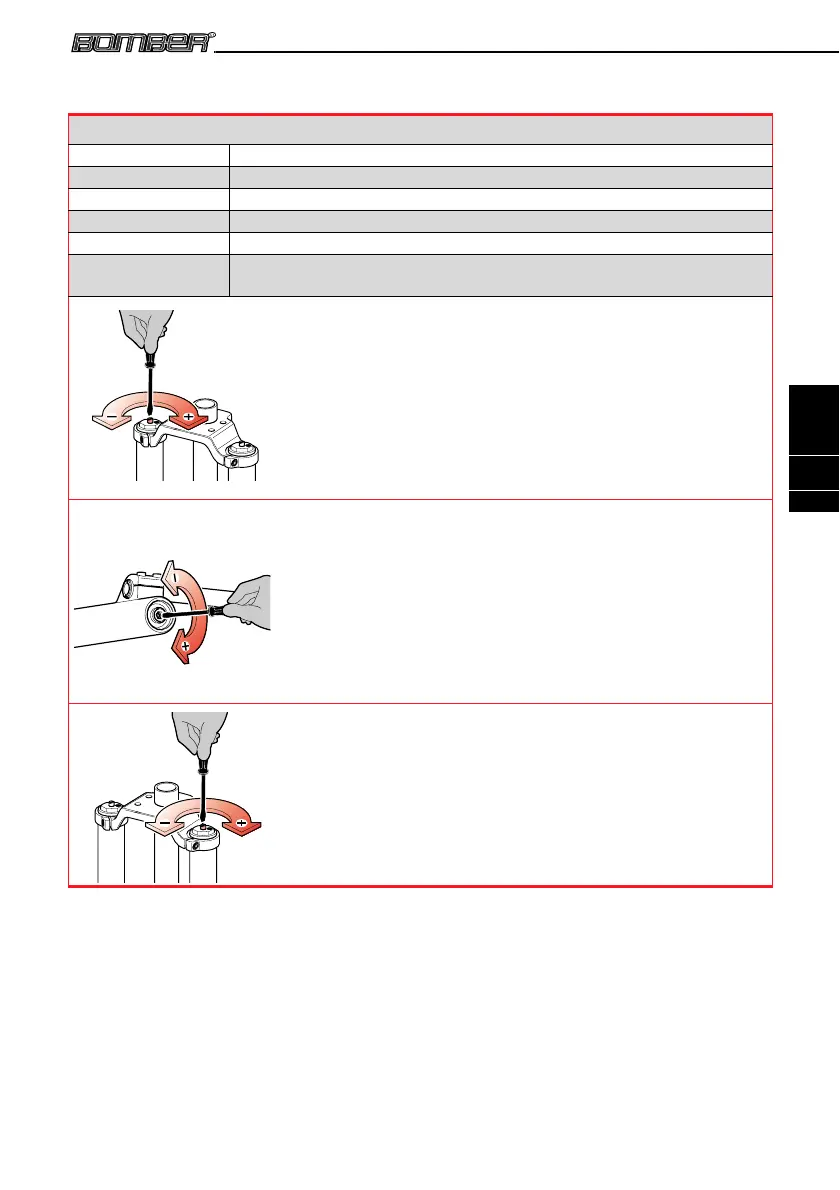

Table 19 - Monster
Monster
Legs’ diameter ø 40 mm
Available travels 200 mm
Wheel dropout type ø 20mm through-hole axle
Max disk dimension Post Mount 8”
V-brake fit No
Max wheel
dimensions
3.0” x 26”
Rebound adjustment by external adjuster – HSCV cartridge
Right leg
By turning the adjuster clockwise with a small screwdriver, you
increase the hydraulic damping making the fork slower during the
rebound phase.
By turning the adjuster counter-clockwise with a small screwdriver,
you reduce the hydraulic damping making the fork more reactive
during the rebound phase.
Compression adjustment by external adjuster – HSCV cartridge
Right leg
By turning the adjuster clockwise with a small screwdriver, you
increase the hydraulic compression damping and, with the same
load, you reduce the travel of the fork.
By turning the adjuster counter-clockwise with a small screwdriver,
you reduce the hydraulic compression damping making the fork more
reactive when hitting obstacles
Compression adjustment at travel end - HSCV cartridge - Left leg
By turning the adjuster clockwise with a small screwdriver, you
increase the hydraulic compression damping at the fork’s legs travel
end.
By turning the adjuster counter-clockwise with a small screwdriver,
you reduce the hydraulic compression damping at the fork’s legs
travel end
