Summarizing tables
MZ034
English
6
166

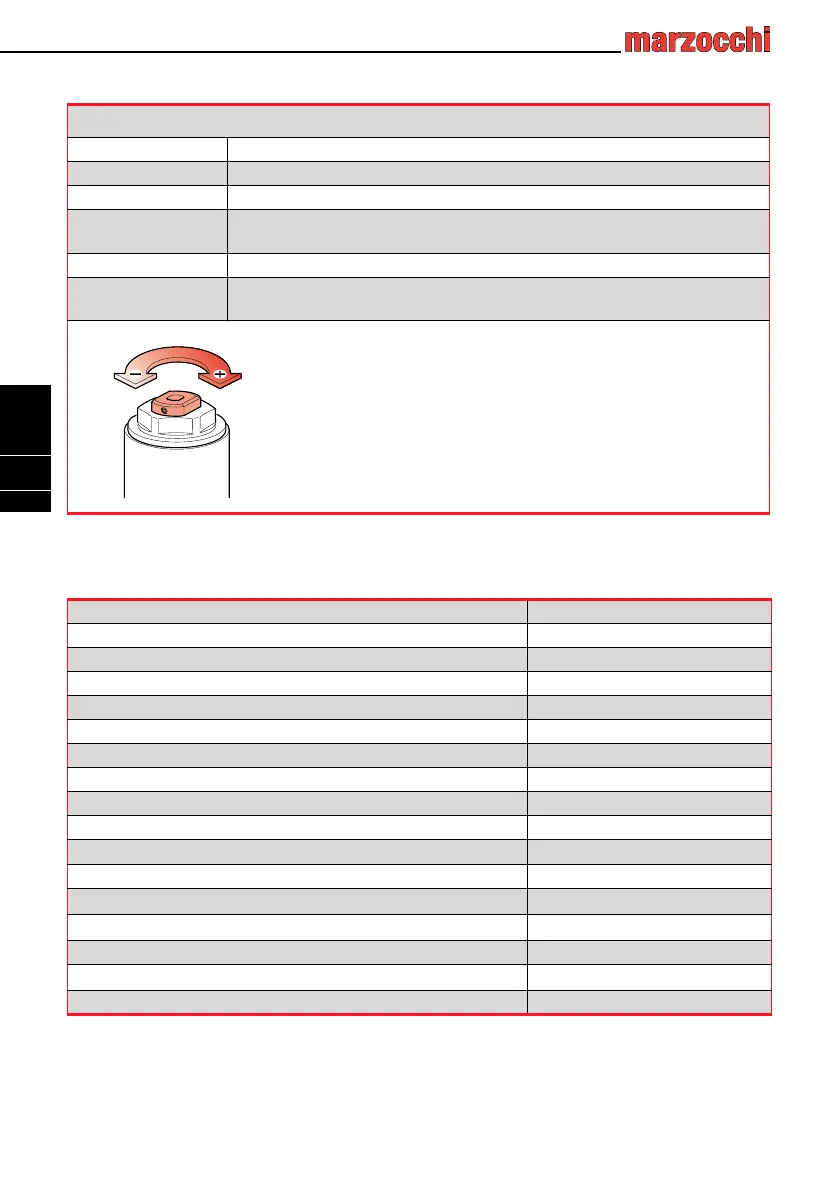

Table 20 - Junior T
Table 21 - Tightening torque
Junior T
Legs’ diameter ø 32 mm
Available travels 170 mm
Wheel dropout type Standard (ø 20mm through-hole axle as an optional)
Max disk dimension
XC INTL STD 6” (The installation of 8" disk is only possible when the specific
adapter is supplied by the brake system manufacturer
)
V-brake fit No
Max wheel
dimensions
2.8” x 26”
Spring preload by external adjuster - Both legs
By turning the knob clockwise, you increase the preload value.
By turning the knob counter-clockwise, you reduce the preload value
Part to be tightened Tightening torque (Nm)
V-brake locking pins 9 ± 1
Fork's top caps 10 ± 1
Air bleed screw (Monster) 2 ± 0,5
Adjuster locking screws 2 ± 0,5
Cartridge bottom screws (Monster) 25 ± 1
Pumping rod/cartridge bottom nut/screw 10 ± 1
Lower crown fixing screws (888, Junior T) 6 ± 1
Lower crown fixing screws (Monster, Dirt Jumper) 10 ± 1
Fender fixing screws 6 ± 1
Handlebar clamp fixing screws (Monster, Junior T)
10 ± 1
Handlebar clamp fixing screws (888) 6 ± 1
Upper crown fixing screws (888, Junior T)
6 ± 1
Upper crown fixing screws (Monster)
10 ± 1
Wheel axle screws 15 ± 1
Allen screws for wheel axles
6 ± 1
Allen screws for wheel axles (Monster) 10 ± 1
