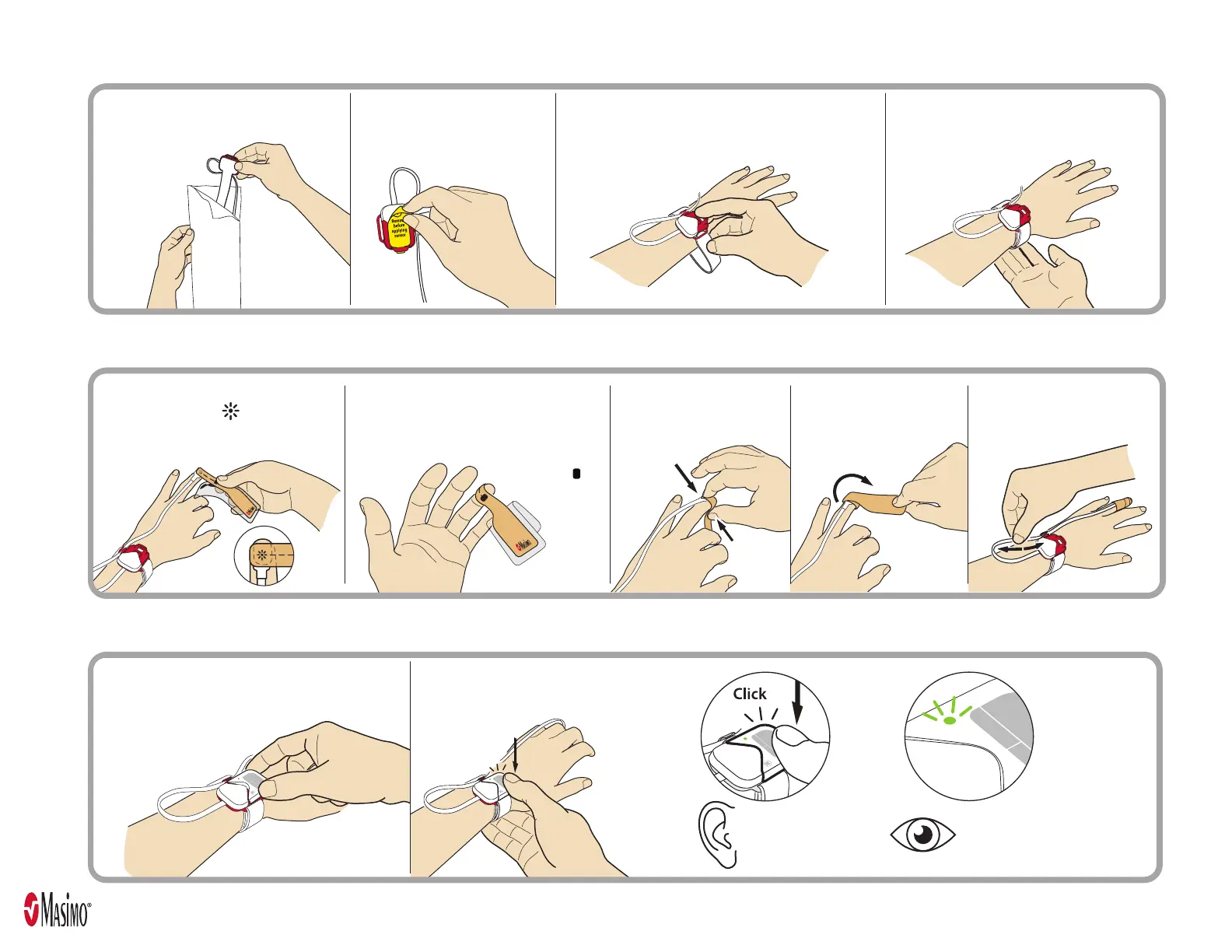

2.1 Sensor Set Up
How to Apply your Sensor
2.2 Apply Finger Sensor
2.3 Insert Chip
3. Place sensor on wrist as shown and
carefully thread the tip of the strap
through the open red loop
4. Wrap the loose end of the strap
around your wrist and press
1. Remove sensor from pouch 2. Peel off yellow label
to activate battery
Listen for
click to secure.
Look for light
to confirm
connection.
1. Insert the chip into the open
compartment on the sensor
2. Press down on the chip to secure
page 2 of 2
Place black
square ( )
on finger pad
1. Remove part of release liner
and place star ( ) on top
of fingernail of ring finger
2. Wrap halfway around finger. Make
sure the star and square are lined
up directly across from each other
4. Remove release liner
and continue to
wrap remainder
around finger
3. Squeeze top and
bottom of wrap
to secure
5. Adjust cable to
comfortable length
