Page 25

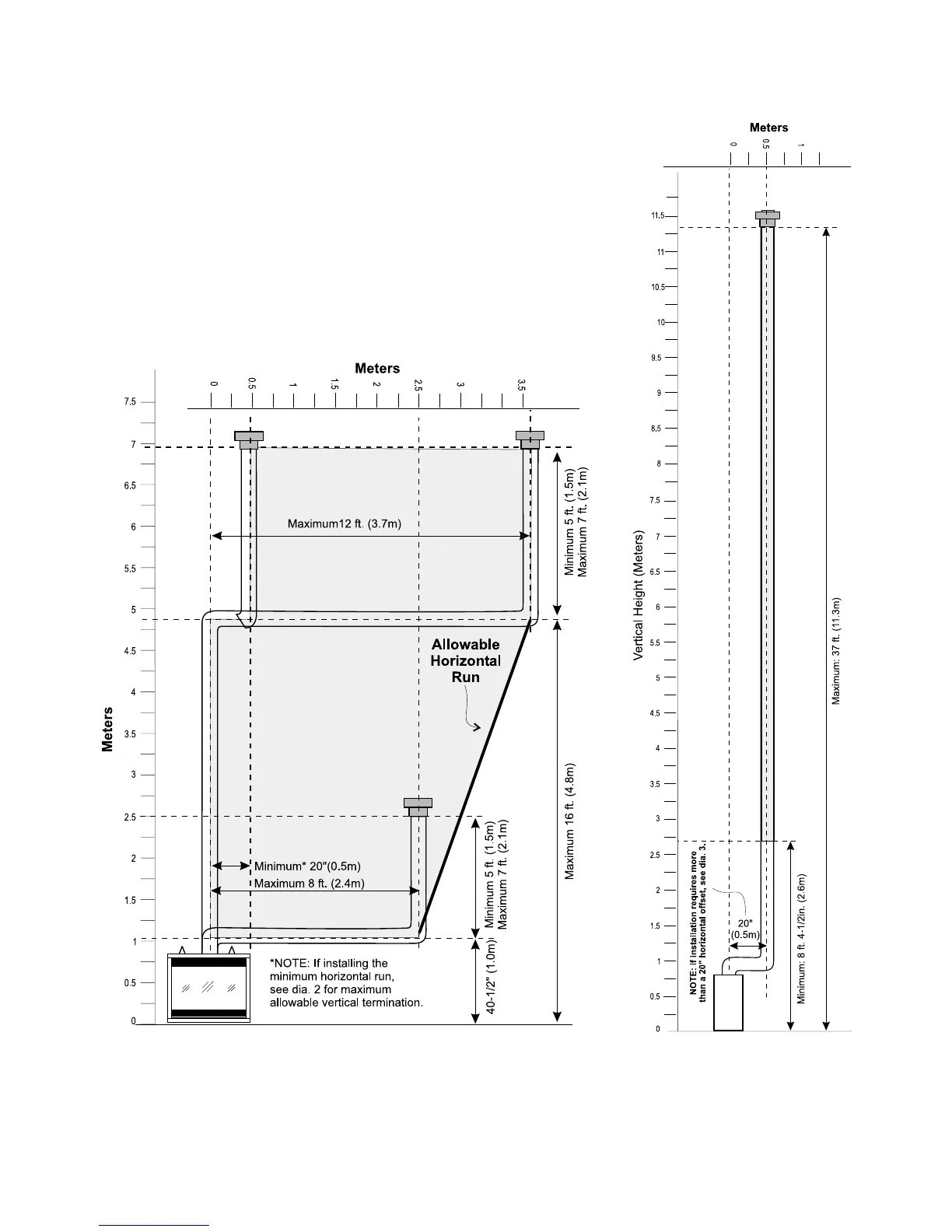

FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
The Grenada/Calais is approved for a 23 ft. (7.0m) vertical, with a maximum
12 ft. (3.7m) horizontal offset using two 90
o
elbows (two 45
o
elbows equal one
90
o
elbow)
The Grenada/Calais is approved for a 37 ft. (11.3m straight vertical, including
a 510mm horizontal offset using two 90
o
elbow (two 45
o
elbows equal one 90
o
elbow)
• Flue must be supported at offsets
• Maintain clearances to combustibles as listed.
Note:Flexi Direct Vent System is only approved for horizontal terminations.
Diagram 1
Diagram 2
