The Grenada/Calais is approved for a 37 ft. (11.3m)
straight vertical.

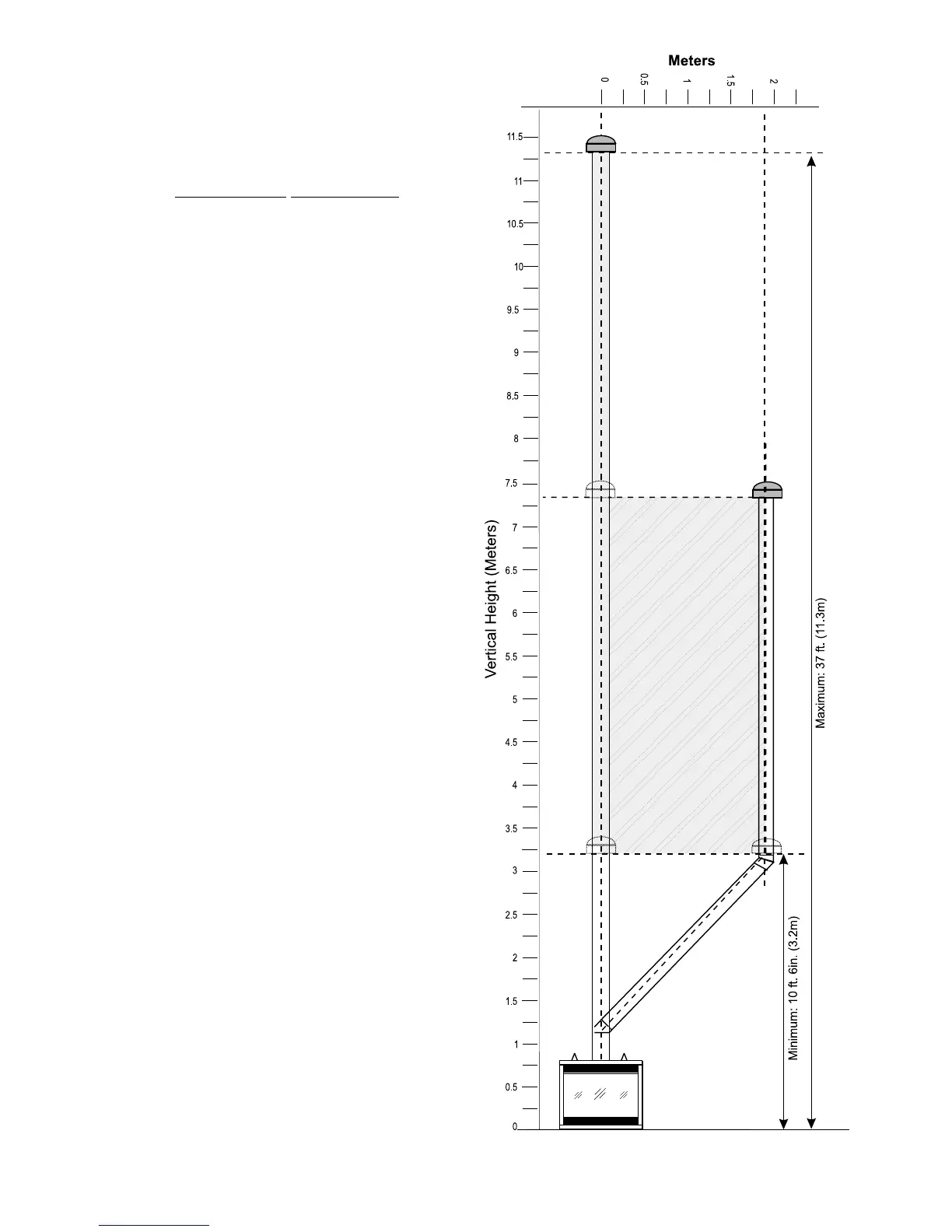

The shaded area in the diagram 3 shows all allowable
combinations of straight vertical and offset to vertical
terminations. Maximum two 45
o
elbows allowed.
• Flue must be supported at offsets
• Maintain clearances to combustibles.
Diagram 3
