Page 37
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
• Flue must be supported at offsets
• Maintain clearances to combustibles.
The Newport/Newport Pier is approved for a maximum 35 ft. (10.7m) straight vertical flue systems for Propane
and Natural Gas, as per diagram 7 below.

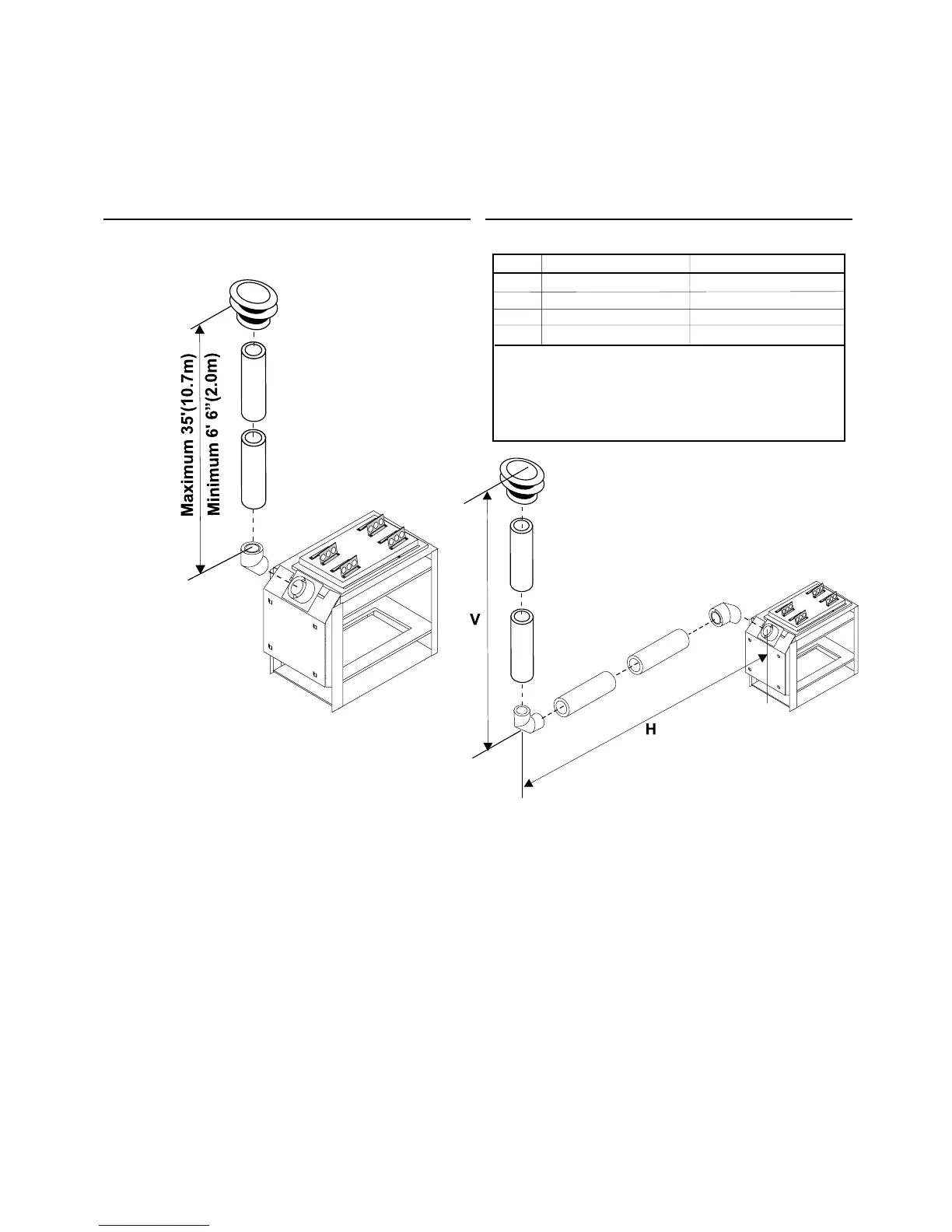

Diagram 7
Diagram 8
Straight Up Vertical Flueing Vertical Flueing with One (1) 90
o
Elbow
Option V H
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
With the above options, maximum total pipe length
if 37 feet with minimum of 4 feet total vertical and
maximum 8 feet total horizontal.
Please note minimum 305mm between 90
o
elbows is required.
