Page 38

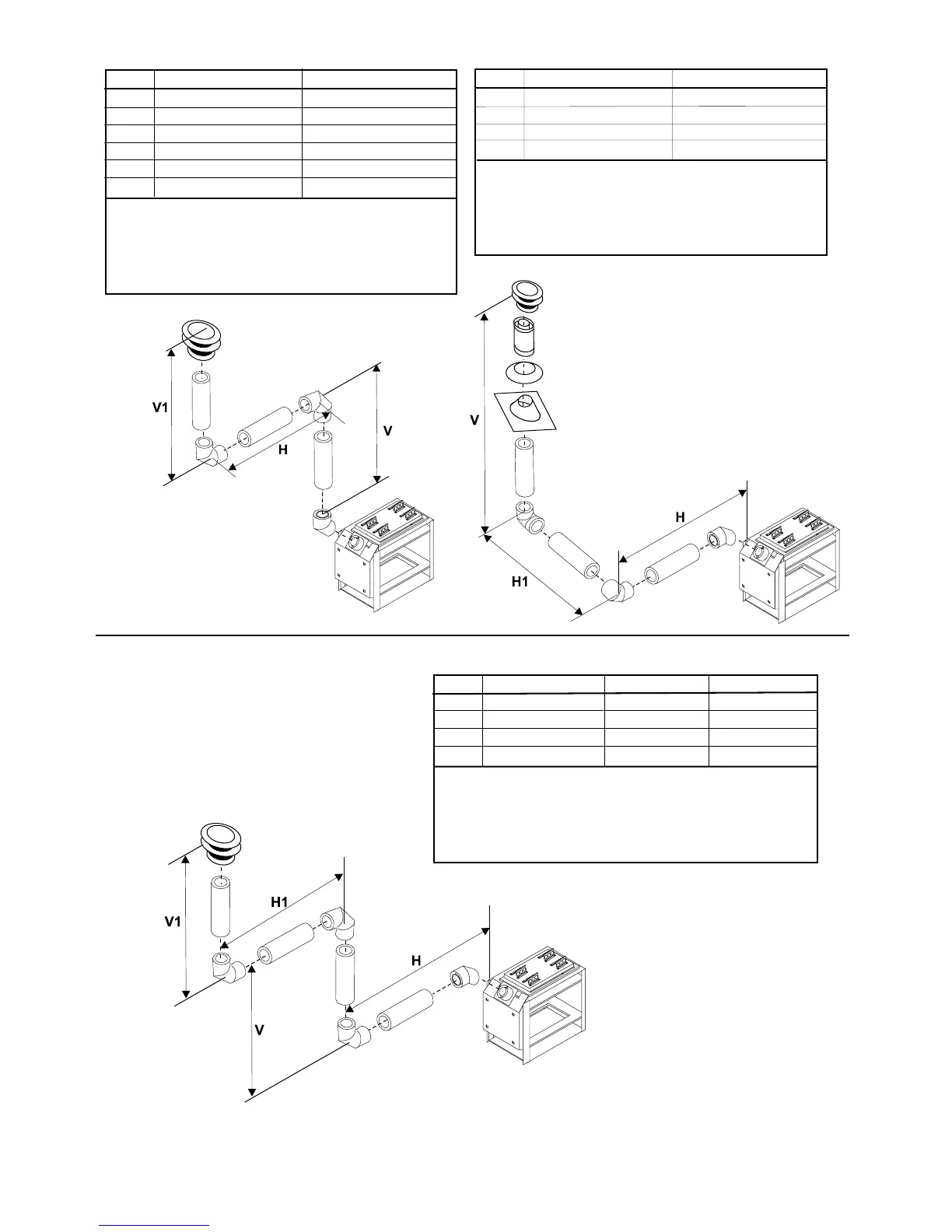

Vertical Flueing with Two (2) 90
o
Elbows
Option V H
A) 1' (305mm) Minimum 4' (1.22m) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum
Vertical Flueing with Two (2) 90
o
Elbows
Vertical Flueing with Three (3) 90
o
Elbows
Diagram 9
Diagram 10
Diagram 11
Option V + V1 H H + H1
A) 2' (610mm) Min. 1' (305mm) Max. 2' (610mm) Max.
B) 3' (914mm) Min. 4' (1.22m) Max. 5' (1.5m) Max.
C) 4' (1.22mm) Min. 6' (1.86m) Max. 8' (2.4m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.
With the above options, maximum total pipe length if
37 feet with minimum of 6 feet total vertical and
maximum 17 feet total horizontal.
Please note minimum 305mm between 90
o
el-
bows is required.
Option V H + H1
A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum
With the above options, maximum total pipe length
if 37 feet with minimum of 4 feet total vertical and
maximum 8 feet total horizontal.
Please note minimum 305mm between 90
o
elbows is required.
With the above options, maximum total pipe length is
37 feet with minimum of 5 feet total vertical and
maximum 12 feet total horizontal.
Please note minimum 305mm between 90
o
elbows
is required.
