OWNER’S/OPERATOR’S MANUAL 20.0
16. MAINTENANCE
16- 22
DRIVE CHAIN LUBRICATION AND ADJUSTMENT
Lubricate the drive chain with an approved chain lube at the interval
specified in the Periodic Maintenance Chart. Lubricate more often
under severe use, such as in dirty or wet conditions.
IMPORTANT
Washing the drive chain with a high pressure washer or solvents can
cause premature wear and chain failure. Do not use a high pressure
washer or gasoline to clean the drive chain. Operating the vehicle with
improper rear drive chain deflection can result in severe damage to the
transmission and drive components. Always make sure the chain
adjusted within the stated specifications

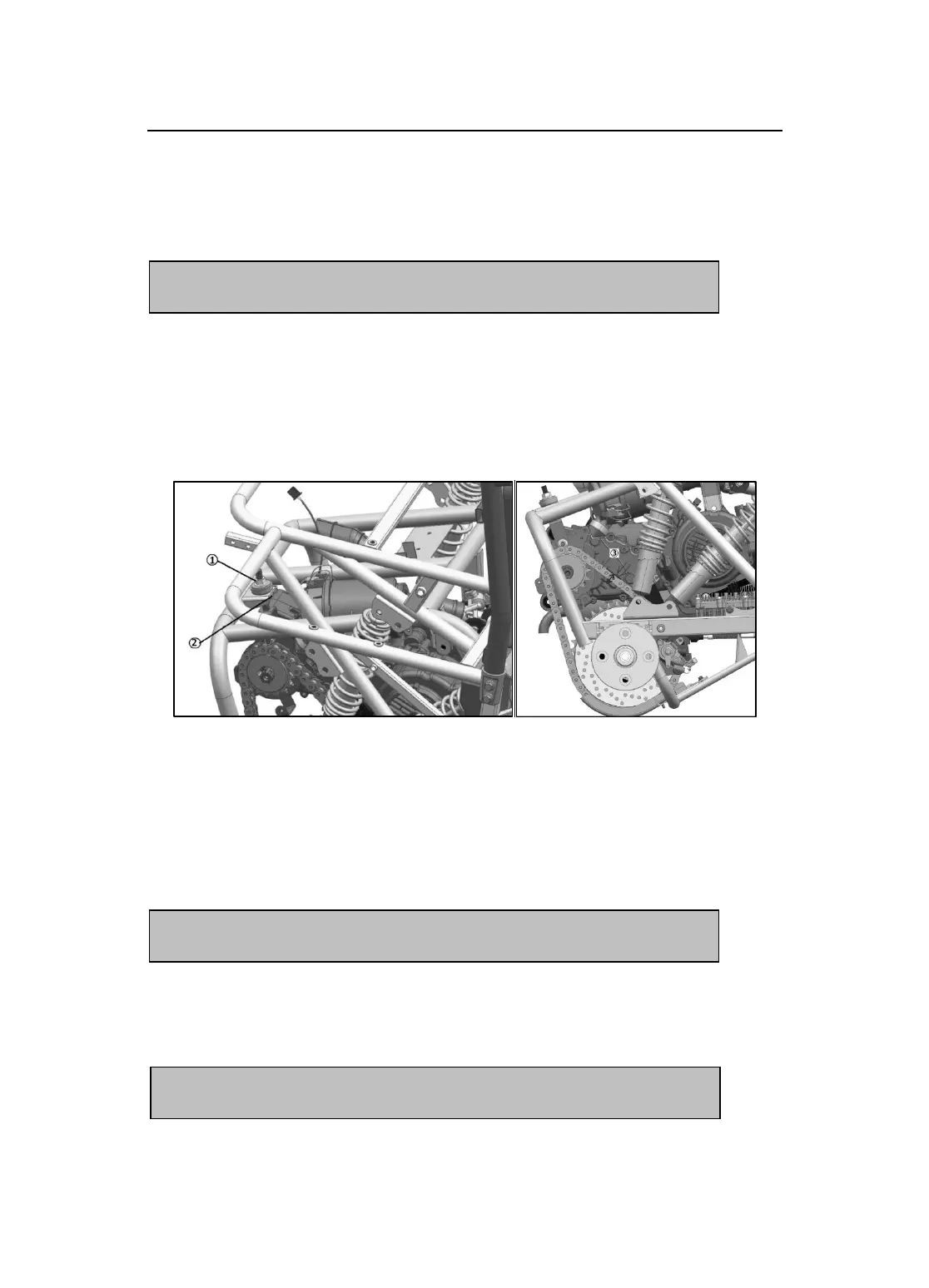

1. Loosen upper nut ① on the chain tensioner bracket.
2. Turn lower nut ② clockwise in 1/2 turn increments, then turn upper
nut until tight. Follow this procedure until chain is at proper tension. To
check for proper tension, press the down on the middle of the chain with
thumb using 22 lbs (100N) of force. Chain deflection ③ should be
within specification.
MEASUREMENT
Chain Deflection
Using 22 lbs(100N) of force
New Chain:3/16-13/32”(5-10mm)
Broken In Chain:13/32-19/32”（10-15mm）
NOTE
3 .A new chain will stretch after the vehicle is used for a period of time
Repeat these steps until chain is adjusted to desired deflection.
