DIGITAL MULTIMETER
OPERATING INSTRUCTION
the 10A jack.
4.12.2 Set the transform switch at the desired μA
,
mA or A
range position.
4.12.3 Put down the ‘FUNC.’ to enter the AC measurement.
Auto range or manual range can be transformed by
putting the ‘RANGE’.
4.12.4 Connect test leads in series with the load under
measurement.
4.12.5 You can get reading from LCD.
NOTE:
• When only the figure ‘OL’ is displayed, it indicates
overrange situation and the higher range has to be
selected.
• When the value scale to be measured is unknown
beforehand, set the range selector at the highest position.
• ‘ ’ means the socket of INPUT maximum current is
200mA, over current will destroy the fuse. 10A’s maximum
current is 10A, no fuse protection.

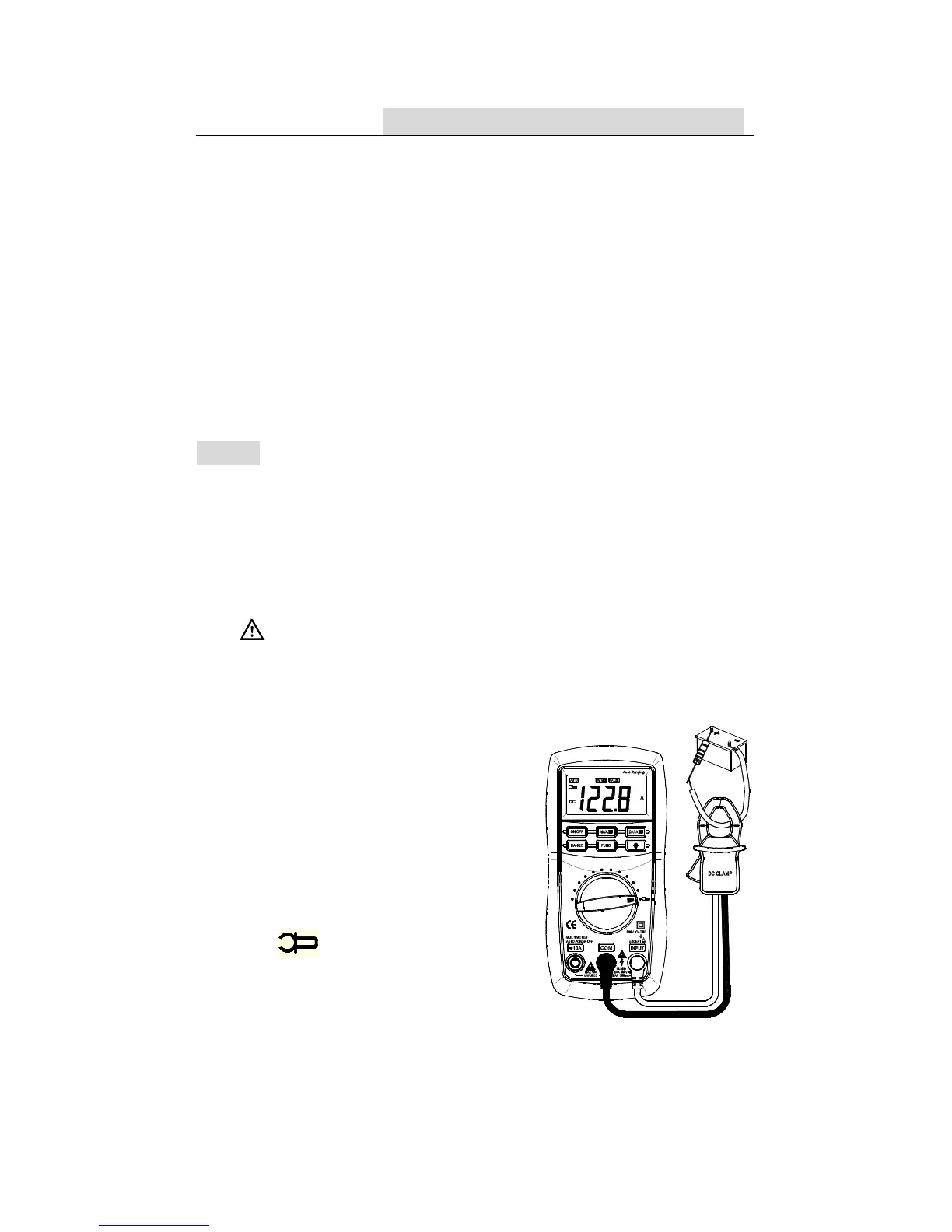

4.13 DC CURRENT MEASURING
(WITH CLAMP, OPTIONAL)
4.13.1 Connect the black output
lead of clamp to the COM
jack and the red one to the
INPUT jack of the meter.
4.13.2 Set the transform switch at
the range position.
4.13.3 Put down the ‘FUNC.’ to
enter the DC measurement.
Auto range or manual range
- 20 -
