29
DIGITAL MULTIMETER
OPERATING INSTRUCTION
discharged fully.
4.17.5 You can get reading from LCD.
4.17.6 When frequent capacitor testing is needed, put the
plug of multifunction test socket into COM and INPUT
and put the capacitor foot into two long socket of
capacitor testing equipment, capacitor testing is ready.
NOTE:
• At the small capacitor range, the reading will include the
small value because some influence from the distribution
of test leads. It will not influence the accuracy of
measuring.

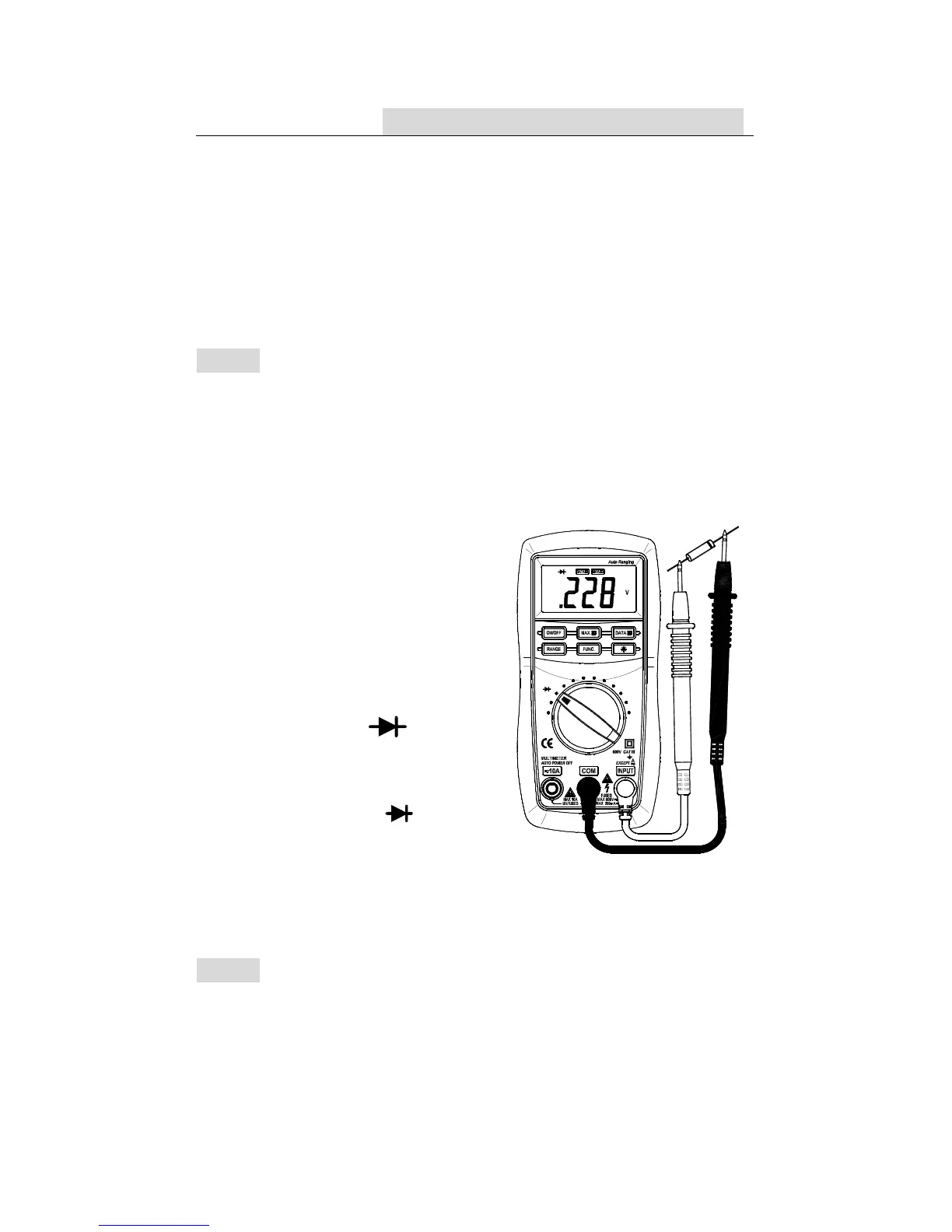

4.18 TESTING DIODE
4.18.1 Connect the black test
lead to the COM jack and
the red test lead to the
INPUT jack. (The polarity
of red lead is ‘+’)
4.18.2 Set the transform
switch at the
range
position.
4.18.3 put down the ‘FUNC.’
transformed at
test.
4.18.4 Connect the red lead to
the anode, the black lead
to the cathode of the diode under testing.
4.18.5 You can get reading from LCD.
NOTE:
• The meter will show the approximate forward voltage drop
of the diode.
- 26 -
