Owner’s Manual
10

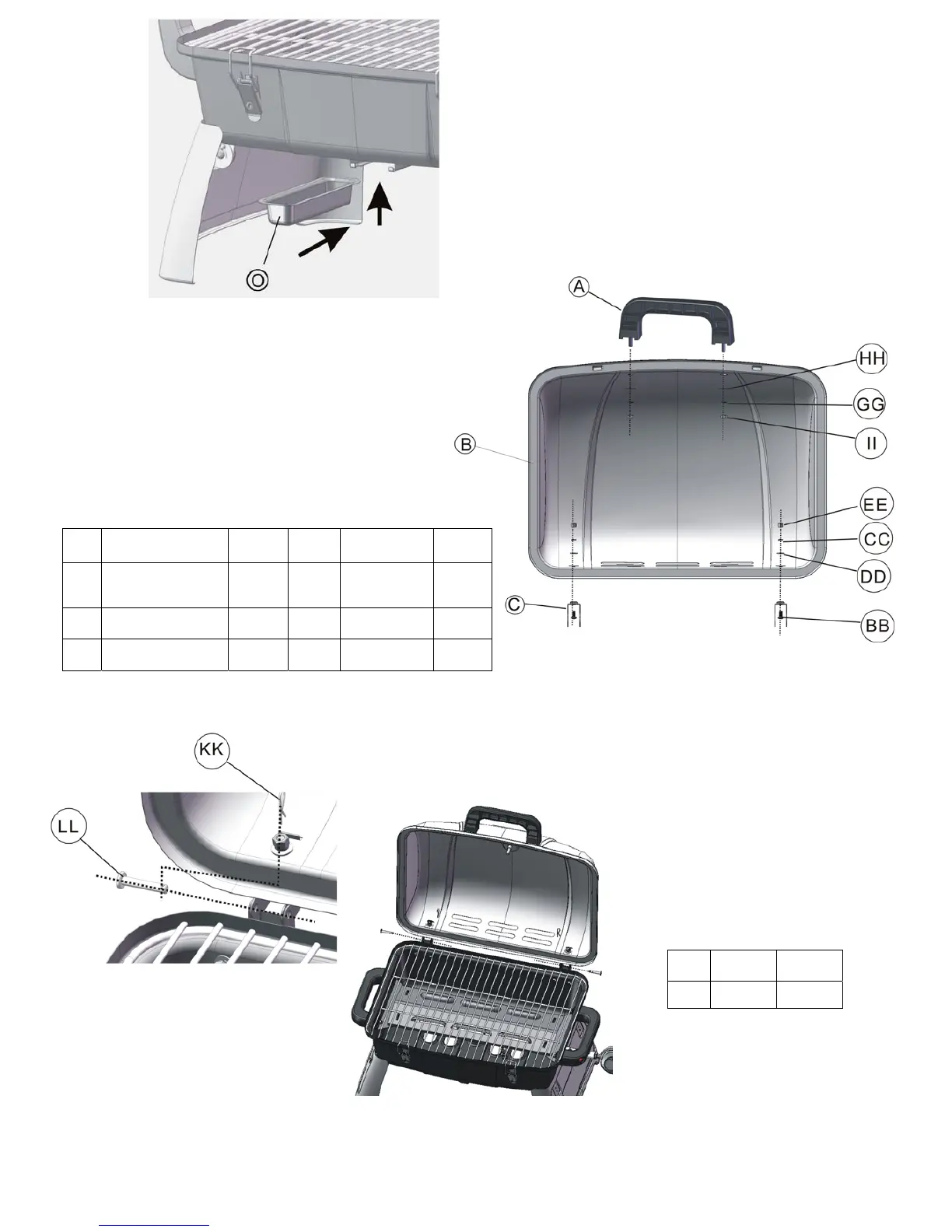

Step 6
a) Insert the grease cup (O) into the two guides underneath the
body and push forward until it is in place.
BB M5 × 10 Bolt 2 PCS HH Flat washer 2 PCS
DD Flat washer 2 PCS GG
M6 Spring
washer
2 PCS
CC M5 Spring washer 2 PCS II M6 Nut 2 PCS
EE M5 Nut 2 PCS
Step 8
a) Align the holes of the upper hinges on
the back of the lid with the holes of the
lower hinges on the back of the body.
b) Insert one lid pin (LL) into each hole.
c) Insert one R pin (KK)
into the hole on
the front of the lid pin.
LL Lid pin 2 PCS
KK R pin 2 PCS
Step 7
a) Insert the pre-attached bolts on the lid handle (A) into
the holes on the front of the lid and seal with one flat
washer (HH), one spring washer (GG), and one nut (II).
b) Align the holes on the back side of lid with the holes on
the upper hinge (C).
c) Insert one bolt (BB) into each pre-drilled hole and seal
with one flat washer (DD), one spring washer (CC) and
one nut (EE)
d) Go back and tighten all the bolts using the screwdriver
provided.
