Master Chef 085-3602-8 - Master Chef Barbecue: Parts List; Component Identification

Owner’s Manual 6

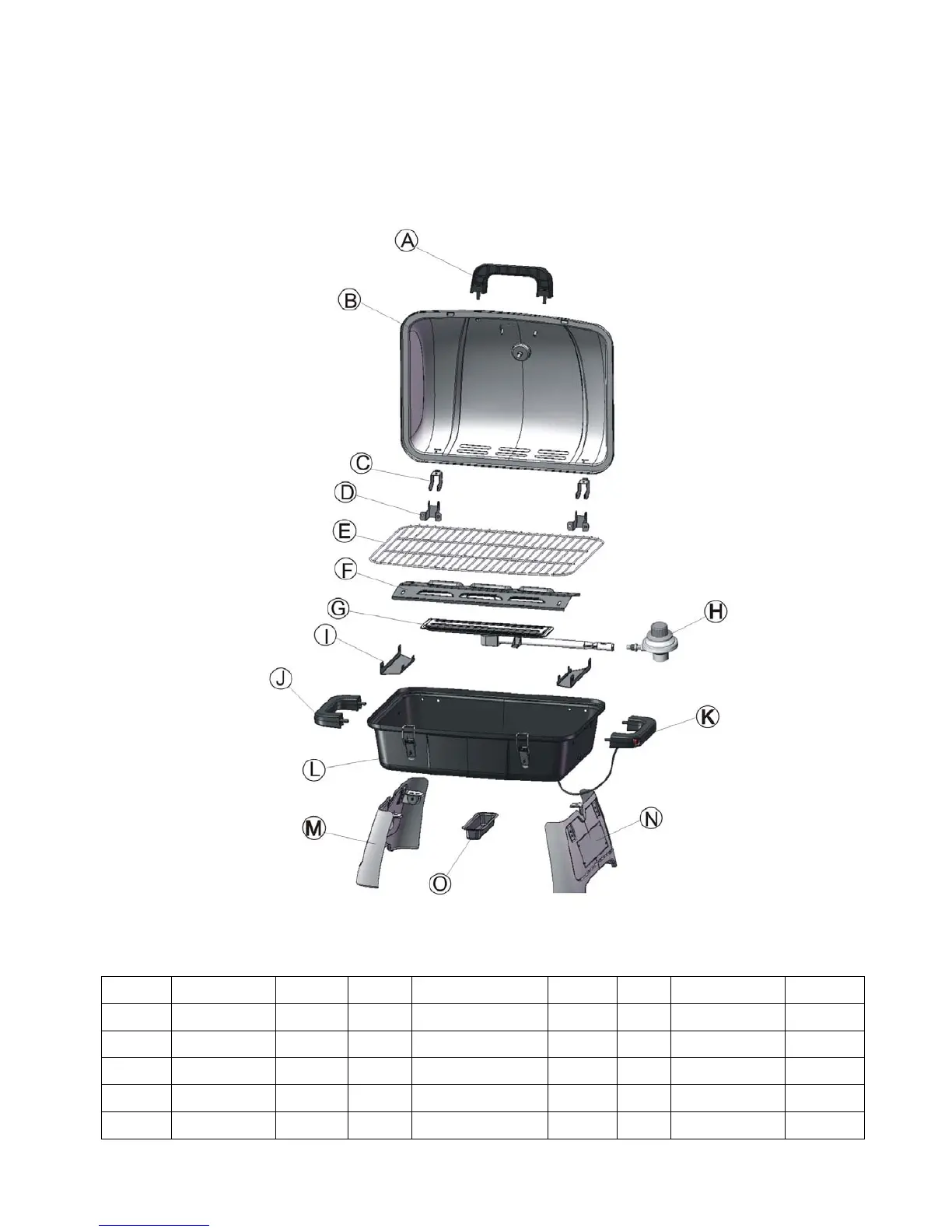

Illustrated Parts List
Part Description QTY Part Description QTY Part Description QTY
A
Lid handle 1 PC
F
Heat plate 1 PC
K
Right handle 1 PC
B
Lid 1 PC
G
Burner 1 PC
L
Body assembly 1 PC
C
Upper hinge 2 PCS
H
Regulator 1 PC
M
Left leg 1 PC
D
Lower hinge 2 PCS
I
Heat plate support 2 PCS
N
Right leg 1 PC
E
Cooking grill 1 PC
J
Left handle 1 PC
O
Grease cup 1 PC
