Master Chef 085-3602-8 User Manual

Owner’s Manual 8
Assembly Instructions
Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the
barbecue is fully assembled, go back and check to make certain all the bolts are secure. Tighten again using the
screwdriver provided if necessary.
Estimated Assembly
Time: 20 minutes.

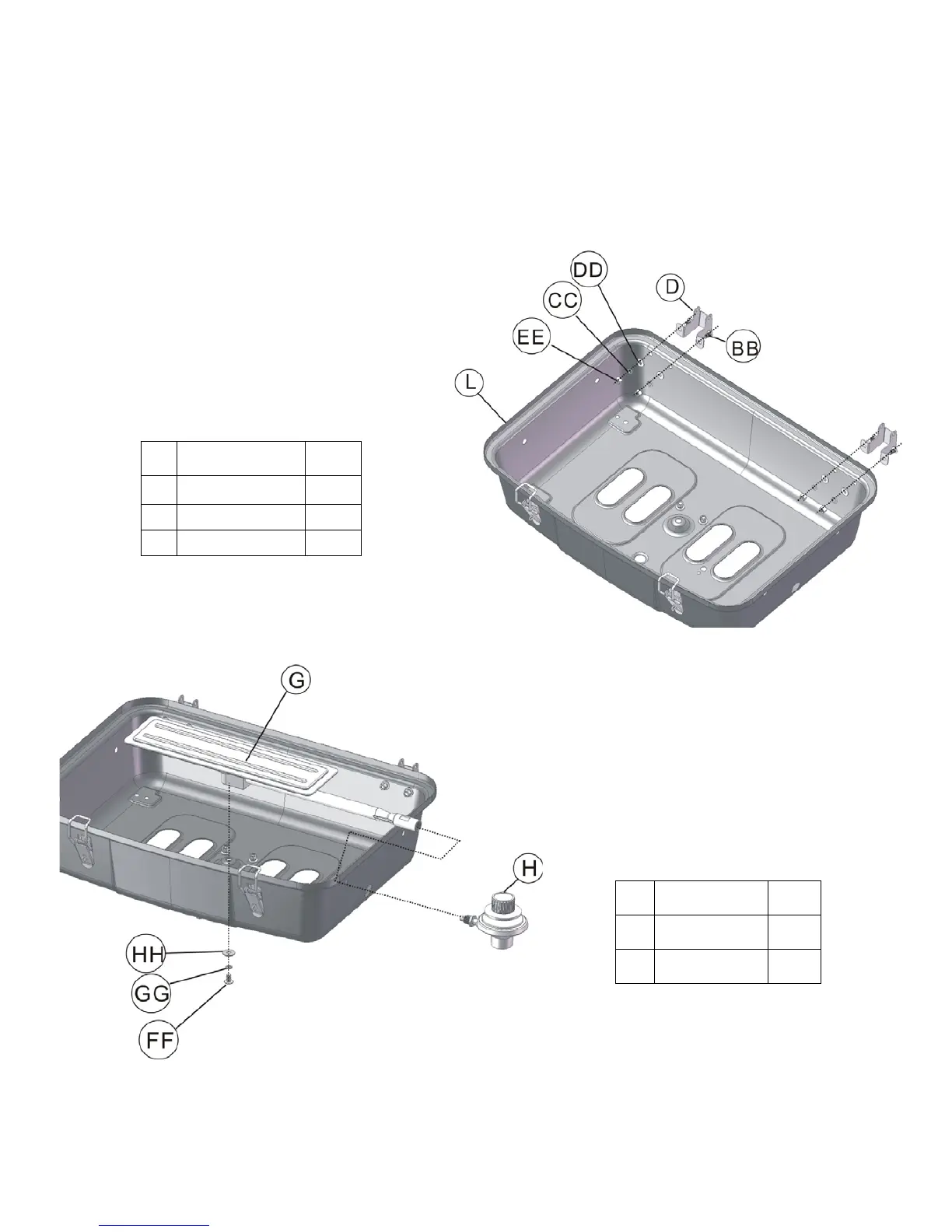

Step 1
a) Align the holes on the right back side of body
assembly (L) with the holes on the lower hinge (D).
b) Insert one bolt (BB) into the pre-drilled hole, sealing it
with one flat washer (DD
) one spring washer (CC)
and one nut (EE)
c) Repeat the procedure for the left back side of body
assembly.
d) Go back and tighten all the bolts using the
sc
r
e
w
d
riv
e
r
p
r
o
vi
ded
.
BB
M5 × 10 Bolt
4 PCS
DD
Flat washer
4 PCS
CC
M5 Spring washer 4 PCS
EE
M5 Nut
4 PCS
Step 2
a) Insert the venturi side of the burner (G) through
the hole on the right side of body.
b) Align the pre-drilled hole under the burner with
the hole on the bottom of body.
c) Insert one flat washer (HH
), one spring washer
(GG)
and one bolt (FF) into the pre-drilled hole.
d) Tighten the bolt using the screwdriver provided.
e) Screw the regulator valve (D) into the threaded
venturi tube of the burner.
HH
Flat washer
1 PC
GG
Spring washer
1 PC
FF
M6 × 7 Bolt
1 PC
