3
GAS HOOK-UP AND WARNINGS

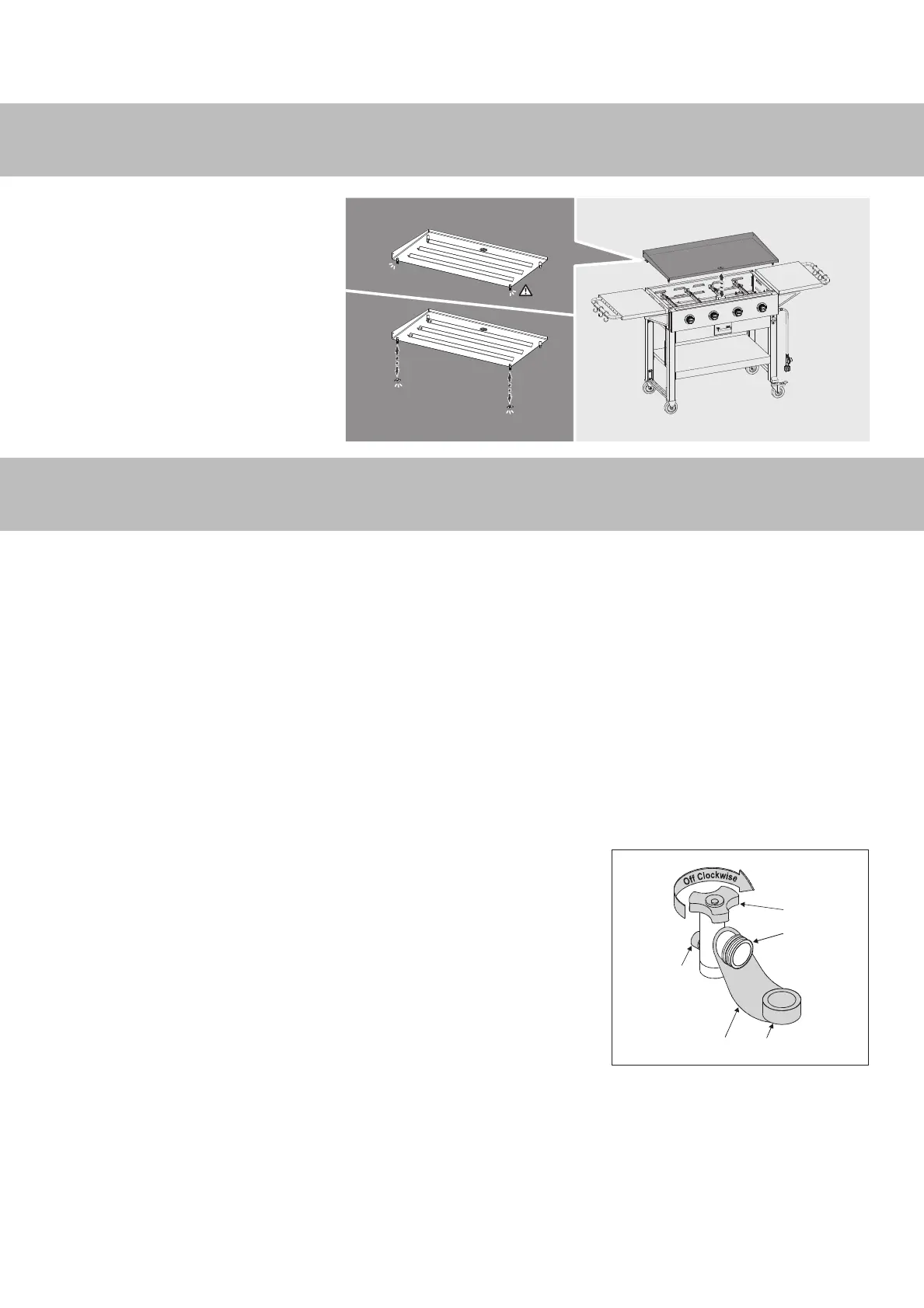

SETTING UP YOUR GRIDDLE
c. Adjust the griddle top height
by turning the levelling nut on the
griddle feet to ensure flow of grease
to the grease catch.
(LP) LIQUID PETROLEUM GAS:
• LP gas is nontoxic, odourless and colourless when produced. For your safety, LP gas has been given an odour
(similar to rotten cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when mixed with air.
LP CYLINDER REQUIREMENTS:
• 12”(30.5 cm) diameter x 18” (45.7 cm) tall with 20 lb (9 kg) capacity maximum.
• LP cylinders must be constructed and marked in accordance with specifications for LP cylinders of the US
Department of Transportation (DOT) or the National Standard of Canada, CAN /CSA-B339, cylinders spheres
and tubes for transportation of dangerous goods. See LP cylinder collar for marking.
LP CYLINDER VALVE MUST HAVE:
• Shut-o valve with a correct cylinder valve output as specified in
current standards. ANS Z21.58-2018/CSA1.6-2018 Outdoor Cooking
Gas Appliances.
• Type 1 outlet compatible with regulator or grill. The type 1 valve is easily
recognized by the large external thread on the outside of the valve.
• Safety relief valve with direct connection to the vapour space of the
cylinder.
• UL listed Overfill Protection Device (OPD). This OPD safety feature
is identified by a unique triangular hand wheel. Use only LP cylinders
equipped with this type of valve.
• A device for vapour withdrawal.
• A collar to protect the LP tank shut o valve.
• A ring on the bottom of the LP tank to secure it to the support assembly.
• Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap
on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in
leakage of propane.
Safety Relief
Valve
Strap and Cap
Type 1 outlet
with thread on
outside
OPD Hand Wheel
