Masterclock GMR1000 User Manual

The GMR1000 is a compact time and frequency generator/server that can reference
a variety of timing sources and provide a range of outputs to meet customer needs.
The base model includes both NTP client and server functionality compatible within
IPv4/IPv6 networks and oering Secure-Socket-Host (SSH) encrpyption for secure
communications. Properly congured and using standard NTP polling rates, the device
can support and synchronize hundreds of thousands of NTP clients.
FEATURES
Standard Inputs/Reference Sources
> NTP client via RJ45 10/100 Mb Ethernet
> NMEA 0183 via RS232/422 or USB
> NENA format 0,1,8 via RS232/422 or USB
> Internal high-stability TCXO oscillator ± 3 sec./year
> Conguration via USB or Ethernet
Input Options
> GPS or GPS/GLONASS receiver
> Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS), IRIG-A1 (AM),
IRIG-E0 (DCLS), IRIG-E1 (AM), SMPTE 12M, 309M, 24/25/30 fps
and 29.97 drop frame
> Internal high-stability OCXO oscillator ± 0.25 sec/year
> VITC input
> Synchronizing signals: PPS, PPM, PPH
> IEEE 1588 Precision Time Protocol
Standard Outputs
> NTP server with 10/100 Mb Ethernet
> NMEA 0183 via RS232/422 or USB
> NENA format 0,1,8 via RS232/422 or USB
Output Options
> Time codes: IRIG-B0 (DCLS), IRIG-B1 (AM), IRIG-A0 (DCLS), IRIG-A1 (AM),
IRIG-E0 (DCLS), IRIG-E1 (AM), SMPTE 12M, 309M, 24/25/30 fps
and 29.97 drop frame
> 5V at 20mA Pulse Per Second (PPS)
> Programmable Pulse Output (PPO)
> 10MHz sine wave
> IEEE 1588 Precision Time Protocol
Other Features
> Internal TXCO maintains time during loss of external sync within ± 3 seconds/year
> WinDiscovery conguration software included
> Fully congurable osets for time zone and DST
> Programmable relay closure - one event per day with NO/NC dry contact relay
> Relay alerts loss of sync by default
> Telnet/SSH communication
> SNMP with custom MIB
> IPv4/IPv6 compatible
Other Options
> DB9 breakout adapter
> Six-digit display
> DIN rail mount available
Power, Physical Dimensions, Operating Parameters
> DC input (9-28 VDC)
> Includes external 12 VDC wall mount power supply with locking DC plug
> Size: 6.44 x 4.06 x 1.44 in (16.35 x 10.32 x 3.65 cm), Weight: 16 oz (453.6 g)
> Temperature: 0 to 60°C
> Humidity: Up to 90% (non-condensing)
Compliance
> FCC, ROHS, CE Marked, ANSI
MASTERCLOCK, INC. 5-YEAR LIMITED PARTS & LABOR WARRANTY MADE IN THE USA
phone (USA and Canada): phone (international): email: online:
1-800-940-2248 +1-636-724-3666 sales@masterclock.com www.masterclock.com
Multi-Functional Master Clocks
GMR1000

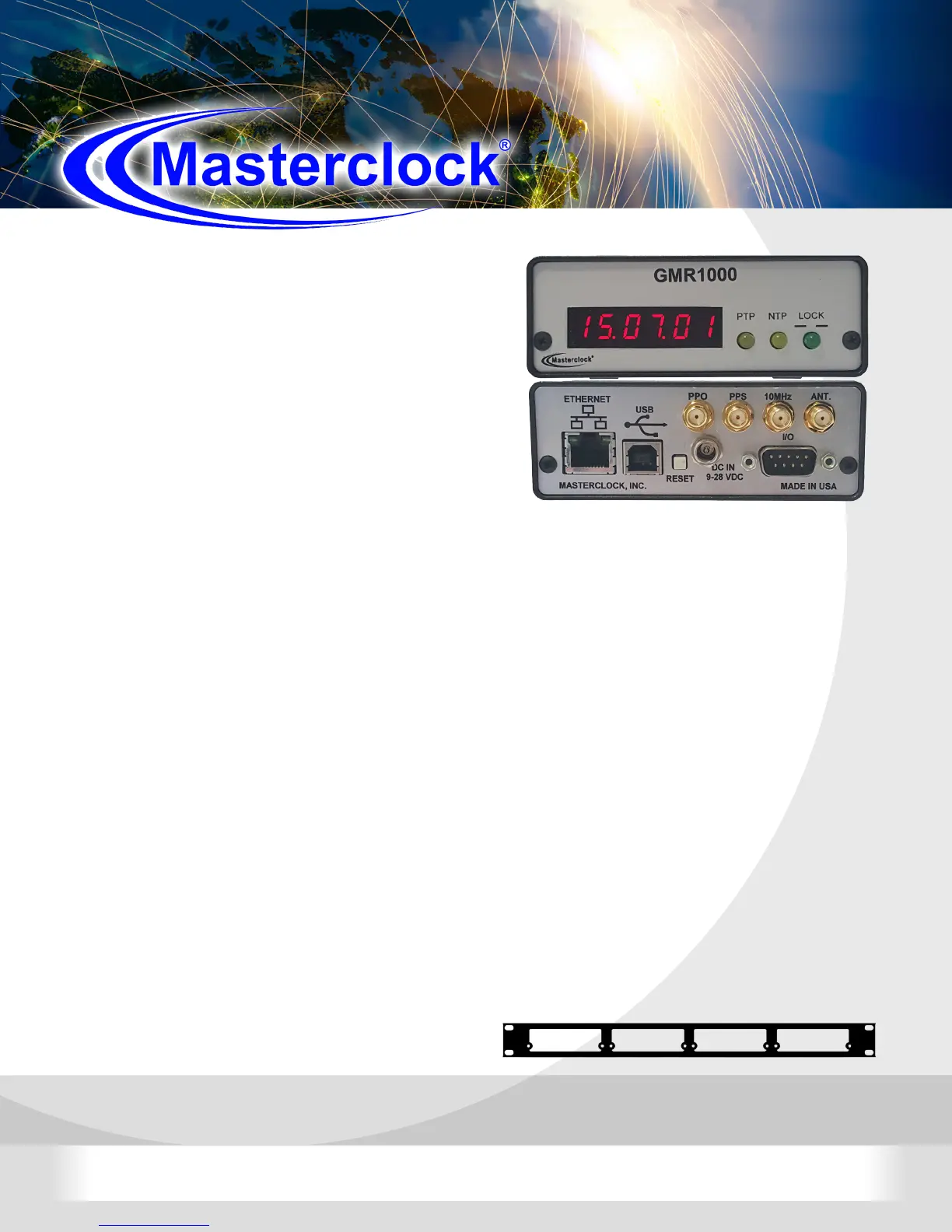

Rack mountable with RM4

Masterclock GMR1000 Specifications
