20V max* LITHIUM-ION CORDLESS CIRCULAR SAW - 054-8332-4
19
OPERATING INSTRUCTIONS
5PNBLFUIFTBGFTUBOECFTUQPTTJCMFDVUGPMMPX
UIFTFIFMQGVMIJOUT
1. Draw a guideline along the desired cutting line
before beginning the cut.
2. Support the workpiece so that the cut is always
on the operator’s side and not directly in line with
the operator’s body.
3. Support the workpiece near the cut.
4. Clamp the workpiece securely so that the
workpiece will not move during the cut (g 10).
5. Hold the saw rmly with both hands. Avoid
placing your hand on the workpiece while
making a cut (g 12).
6. Always place the weight of the saw on the
portion of the workpiece that is supported, as
shown in (g 10), and not on the “cut-off” piece,
as shown in (g 11).
7. Place the workpiece with the “good” side down.
8. Align the cutting line with the blade-guide notch
on the base (g 10).
NOTE:
The saw blade aligns with the middle of the blade guide notch. Make a trial cut in scrap material
along a guideline to determine how much to offset the cutting guideline on the cutting material.
9. Rest the front edge of the base on the workpiece without touching the blade to the workpiece.
10. Start the saw and allow the blade to reach full speed.
11. Guide the saw into the workpiece, and make the cut.
12. Release the trigger switch and allow the blade to come to a complete stop.
WARNING!
If the blade comes in contact with the workpiece before it reaches full speed, it could cause
the saw to “kickback” towards you, which could result in serious injury.
WARNING!
Do not bind the blade in the cut. It could cause the saw to “kickback” towards you, which
could result in serious injury.

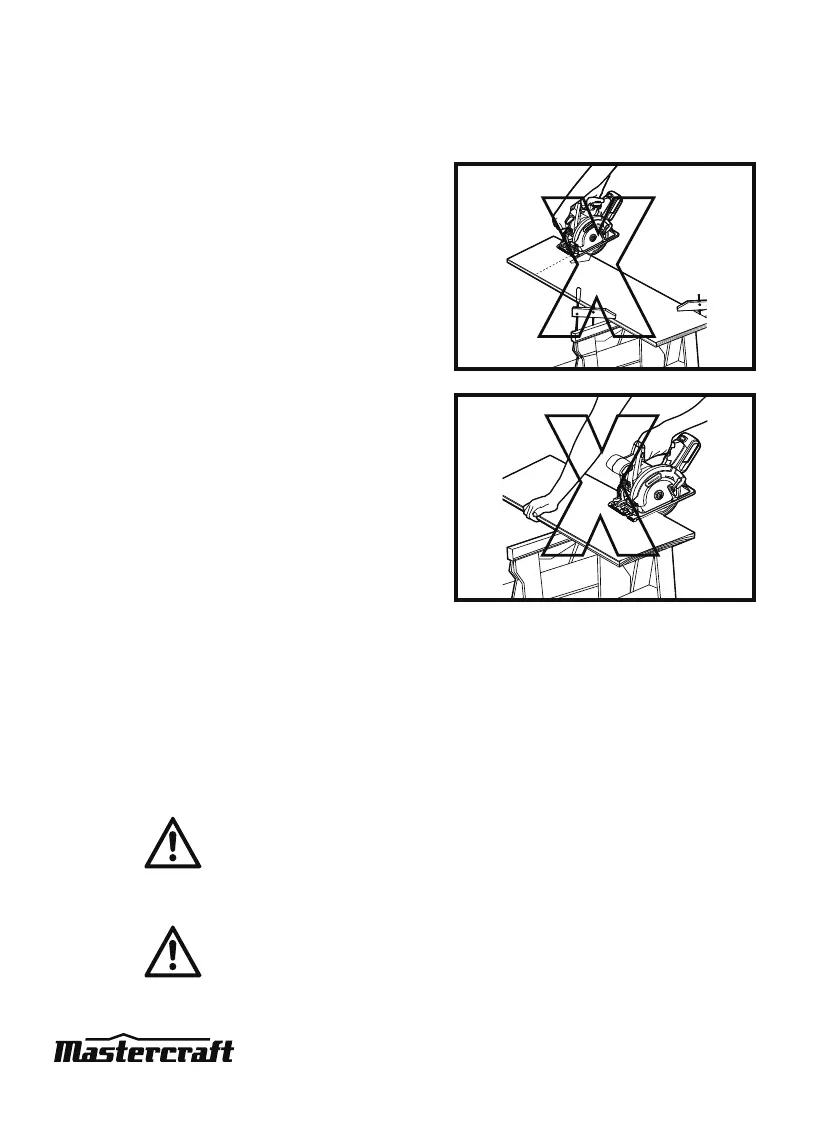

fig 11
