V. Assembly and adjustments(continued)
11
ATTACH THE TABLE SAW TO THE STAND (FIG.1, 2)
WARNING: DO NOT OPERATE THIS MACHINE ON THE FLOOR. THIS IS A VERY
DANGEROUS POSITION.
1. Place cardboard or an old blanket on floor in order to protect the surface of the saw table.
2. Place the saw upside down on the protective material (see Fig. 2).
3. Position the stand upside down on the saw base.
4. Line up the four holes in saw base and the stand.
5. Fasten the saw to stand using four bolts (9), washers (10), and nuts (11) (see Fig. 1)
NOTE: Place a washer on each bolt before inserting it into the saw base and through the
support. The nut must be snug against the bracket (see Fig. 1).
6. Tighten all four nuts.
NOTE: DO NOT OVER-TIGHTEN THE NUTS THAT HOLD THE SAW TO THE STAND.
DOING SO WILL DAMAGE THE SAW BASE.
7. Carefully set the saw in its upright position on a clean level surface.

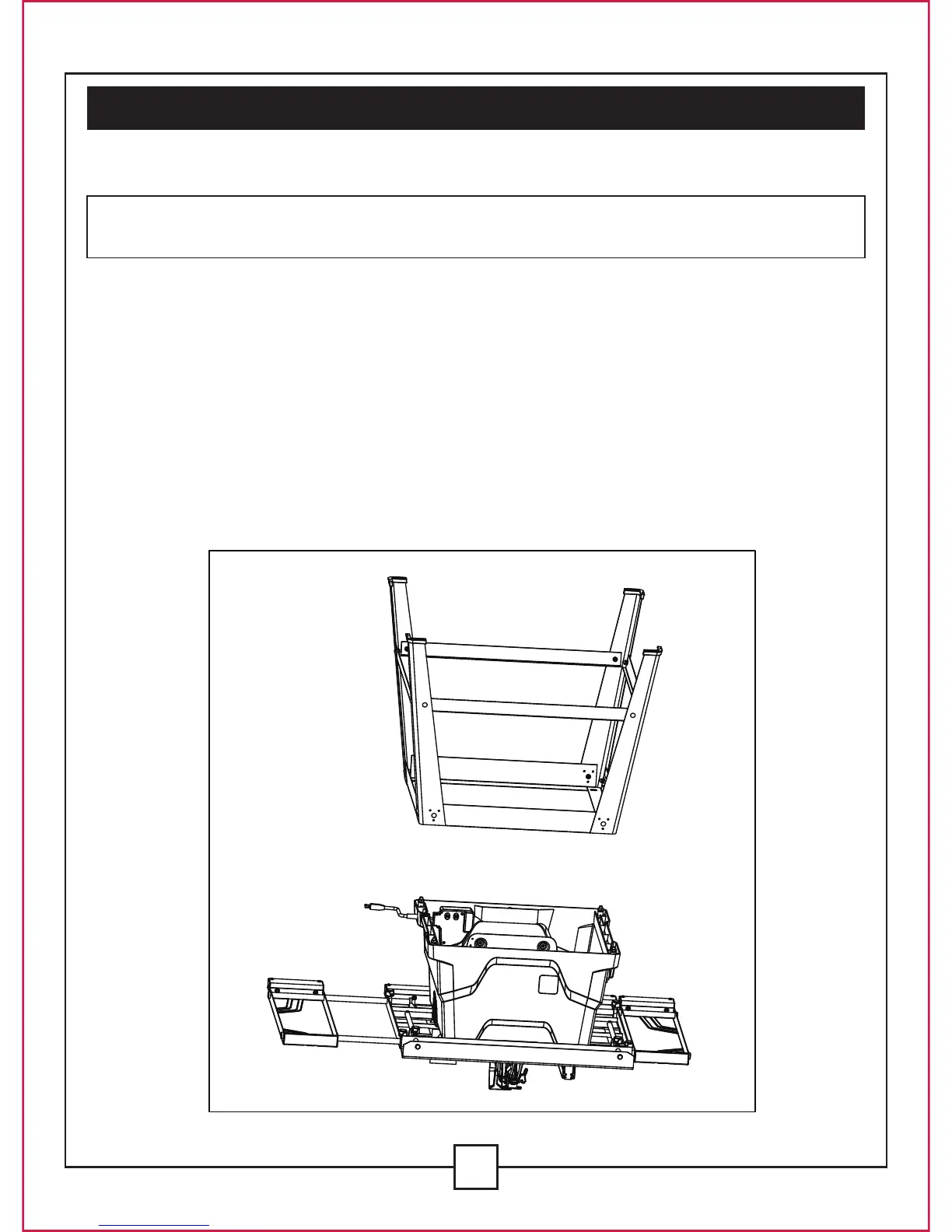

Fig. 2
