12/75-3, 12/100-3, 24/40-3, 24/60-3 – User and Installation Manual
3.9 Commissioning after installation
Note that when your ChargeMaster Plus is not new, former
users may have changed the settings. Reset the
ChargeMaster Plus back to factory settings when there is
any doubt (see section 4.2).
DIP switches, if required, must be set prior to
commissioning. All other settings can only be set after
commissioning. See section 4.1 for DIP switch settings.
1 Check the wiring; positive connected to positive (red
cables), negative connected to negative (black
cables).
2 When all wiring is OK, place the DC fuse(s) to
connect the batteries to the ChargeMaster Plus.
When placing this fuse, a spark might
occur, caused by the capacitors used in
the ChargeMaster Plus. This is particularly
dangerous in places with insufficient
ventilation. Due to the gassing of the
batteries, an explosion can occur. Avoid
having flammable materials close by.
3 Switch on the AC power supply.
4 Press and hold the MODE button (Figure 5) for 3
seconds to switch the charger on and initiate the
charging process.

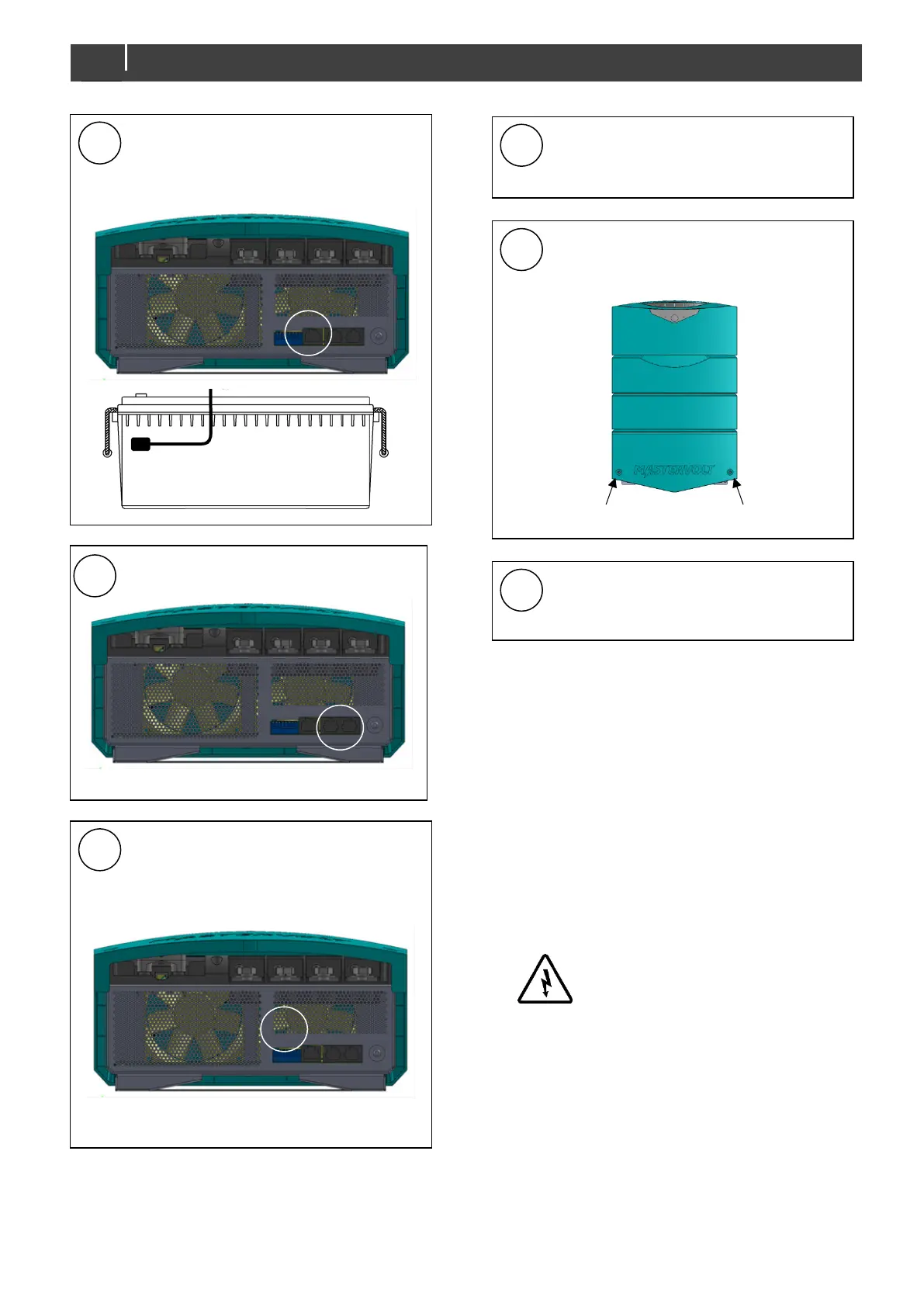

Attach the battery temperature sensor to the
casing of battery bank 1.
Plug the temperature sensor cable into the
“temp.sensor” jack.
Option: Connect the ChargeMaster to the
MasterBus network.
If required, use a small screw driver to
change DIP switch settings. See section 4.1.
Use a small screw driver for adjustment of
the DIP switches.
Check all wiring; see also Figure 3 for wiring
details.
Close the connection compartment by fixing
the four screws.
Continue with section 3.9 for commissioning
of the ChargeMaster.
