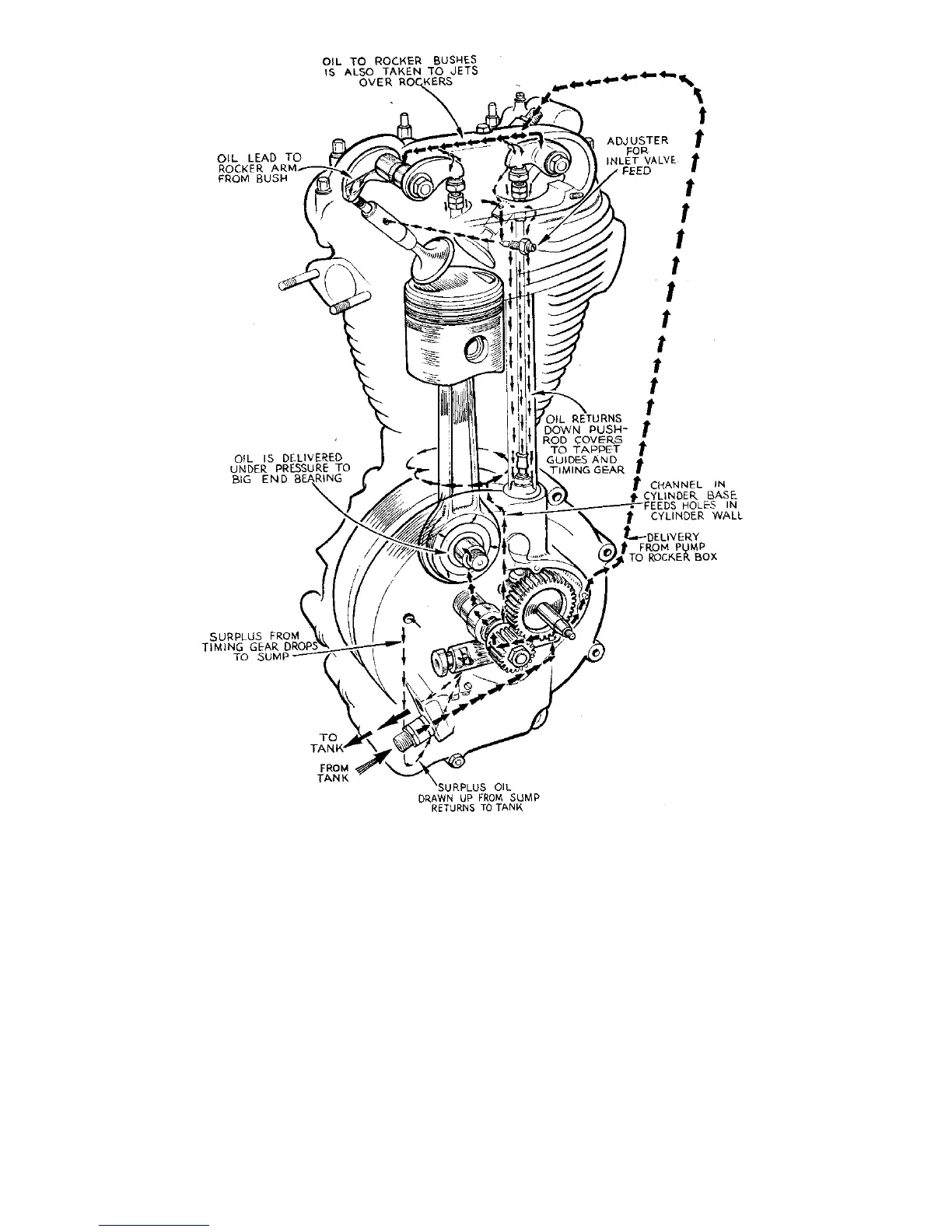

Illustration 4
Engine Oil Circulation
THE OIL TANK AND FILTERS
The level of oil in the supply tank should never be allowed to fall below the low level
mark and, upon replenishment, should not be higher than the top level mark other-
wise, when starting the engine, the bulk of oil in the crankcase sump may be greater
than the space available in the tank.
The oil filter is made in cylindrical form of thick felt and is supported by a tubular wire
cage. The felt is not detachable from the cage.
16
