About the Scan Tool
CONTROLS AND INDICATORS
2
CONTROLS AND INDICATORS

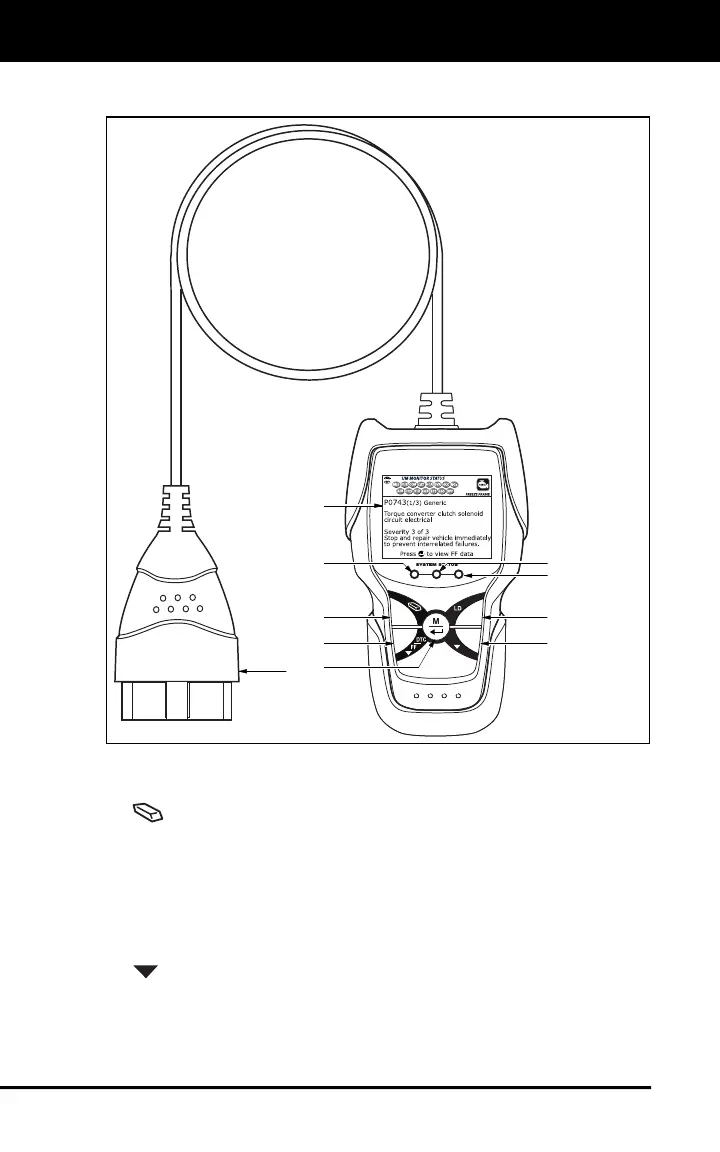

Figure 1. Controls and Indicators
See Figure 1 for the locations of items 1 through 9, below.
1.
ERASE button - Erases Diagnostic Trouble Codes (DTCs) and
"Freeze Frame" data from your vehicle's computer, and resets
Monitor status.
2. DTC/FF button ā Displays the OBD2 DTC View screen and/or
scrolls the LCD display to view DTCs.
3. LD button ā When pressed while linked to a vehicle, places the
Scan Tool in Live Data mode.
4.
DOWN button - When in MENU mode, scrolls down through the
menu options. When LINKED to a vehicle, scrolls down through the
current display screen to display any additional data.
1
6
2
5
9
3
8
7
4
10
