10.2 RFID INSTALLATION - CONTINUED
CHAPTER 10: CONSOLE SPECIFICATIONS AND ASSEMBLY GUIDE
1.

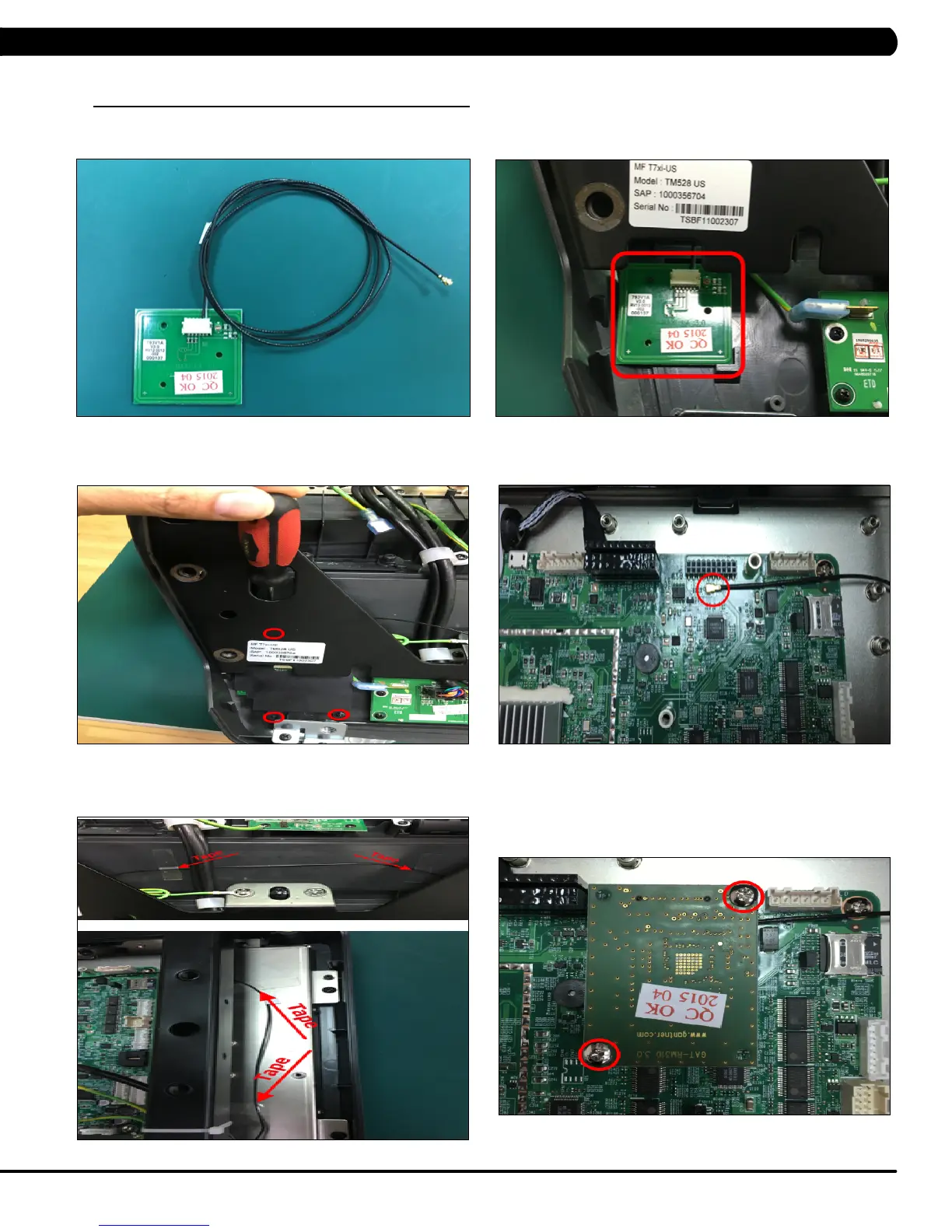

Remove the console back cover. Connect the Signal connected wire to the Antenna board (Figure A).
2. Put the Antena board on the front cover (Figure B).
3.
Put the Fixing Bracket on the Antenna board
and use the three screws to secure it (Figure C).
4.
Connect the Signal connected wire to the UCB (Figure D).
5.
Use the Tape to hold the Signal connected wire (Figure E).
6.
Plug in the Reader board to the UCB and use the two screws to secure it. (Figure F).
FIGURE DFIGURE C
FIGURE BFIGURE A
FIGURE F
FIG
URE E
