Matrix 7xe User Manual

55
1.

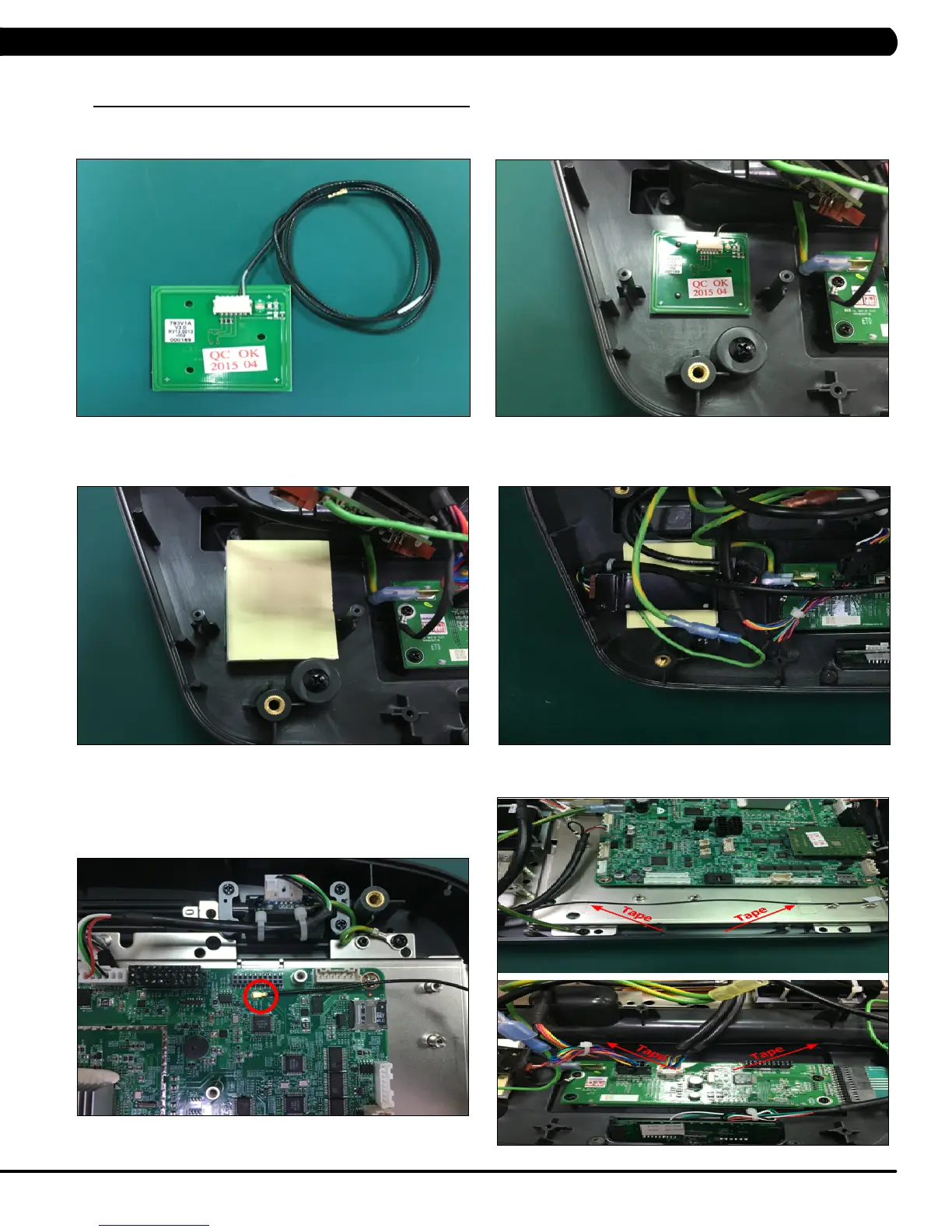

Remove the console back cover. Connect the Signal connected wire to the Antenna board (Figure A).
2. Remove the HR board and put the Antenna board on the front cover (Figure B).
3.
Put the Foam Tap on the Antenna board (Figure C).
4.
Install the HR board on top of the Antenna board (Figure D).
5.
Connect the Signal connected wire to the UCB (Figure E).
6. Use the Tape fto hold the Signal connected wire (Figure F).
FIGURE DFIGURE C
FIG
URE BFIGURE
A
FIGURE F
FIG
URE E
10.2 RFID INSTALLATION - CONTINUED
CHAPTER 10: CONSOLE SPECIFICATIONS AND ASSEMBLY GUIDE
