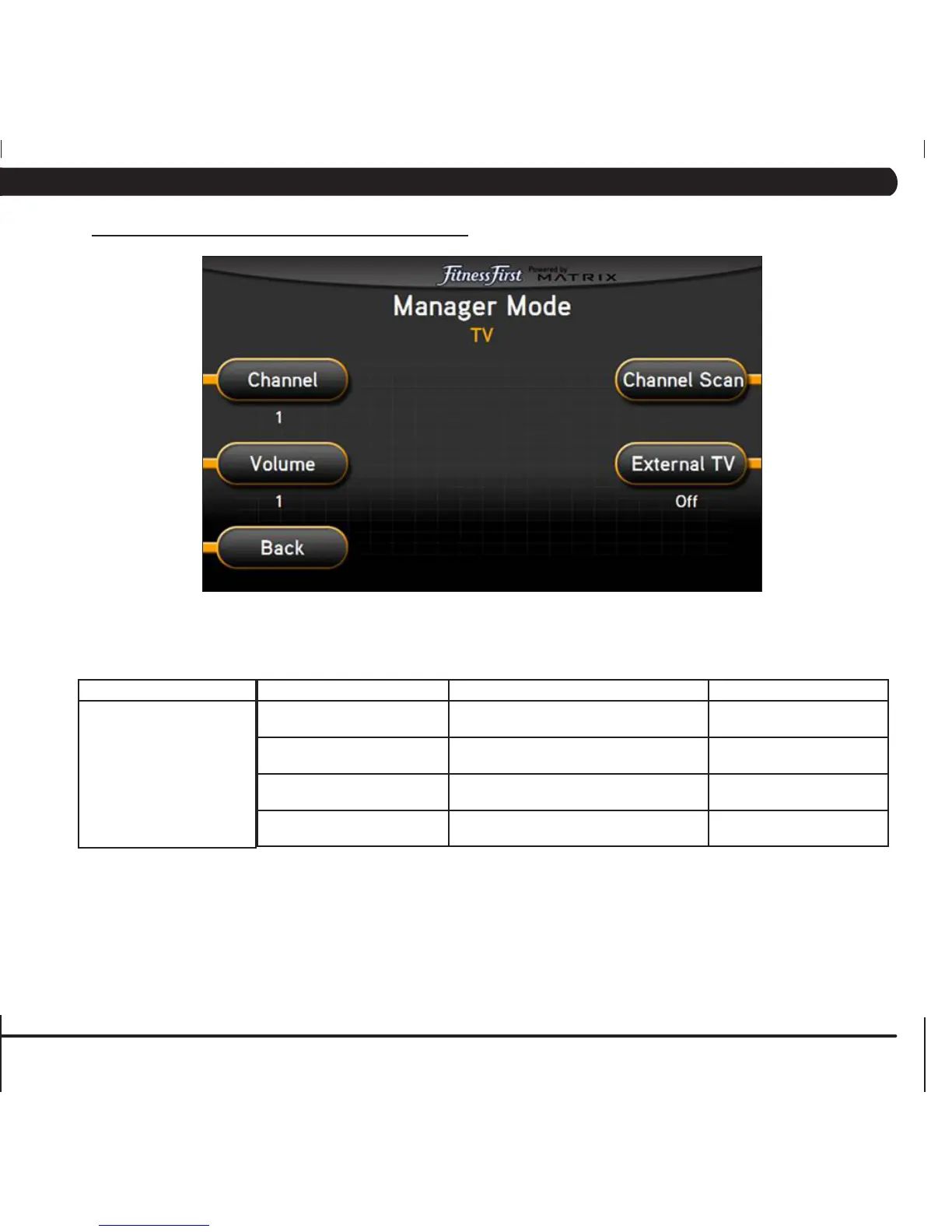

5.5 MANAGER
MODE
- TV
T
AB
FUNCTION &
DEF
AUL
TS
DESCRIPTIONS
MODIFIED
Channel
Default: 1
This option
controls
the default TV
channel
on start
up.
Channels 1-999
V
olume
Default: 1
This option
controls
the default TV
volume
on start
up.
Maximum: 17
Minimum: 1
Channel Scan
This option
scans
the local TV
system for
channels.
N/A
External TV
Default: Off
This option
controls
the external TV
power
.
On /
Off
MANAGER MODE
TV
CHAPTER
5:
MANAGER
MODE
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Serial Number Location
5
Chapter 2: Important Safety Instructions
7
Moving the Unit
7
Read and Save These Instructions
8
Electrical Requirements
9
Chapter 3: Preventative Maintenance
10
Recommended Cleaning Tips
10
Check for Damaged Parts
10
Care and Maintenance Instructions
11
Preventative Maintenance Checklist
11
Chapter 4: Console Overlay and Workout Description
12
Console Description
12
Workout Setup Steps - Manual
13
Workout Setup Steps - Fat Burn
13
Workout Setup Steps - Training Workout
13
Workout Setup Steps - Cooper Fitness Test
14
Workout Setup Steps - Target Heart Rate
15
Workout Setup Steps - Constant Watts
15
Auto Calibration Procedure
16
Chapter 5: Manager Mode
17
Manager Mode Overview
17
Manager Mode - about Tab
18
Manager Mode - Time Tab
19
Manager Mode - Defaults Tab
20
Manager Mode - Language Tab
21
Manager Mode - TV Tab
22
Chapter 6: Engineering Mode
23
Engineering Mode Overview
23
Engineering Mode - Calibration Tab
24
Engineering Mode - Errors Tab
25
Engineering Mode - Statistics Tab
26
Engineering Mode - Self Power Tab
27
Engineering Mode - Clubs Tab
28
Engineering Mode - Club ID Tab
29
Chapter 7: Service Mode
30
Service Mode Overview
30
Service Mode - Setup Tab
31
Service Mode - Test Tab
32
Service Mode - Date / Time Tab
33
Service Mode - Log Tab
34
Chapter 8: Troubleshooting
35
Electrical Diagram
35
LCB Error Indicators
36
Console Error Codes
37
Troubleshooting Various Issues
38
Troubleshooting - Entertainment Keypad Issues
39
TV Troubleshooting
40
Chapter 9: Part Replacement Guide
41
Front Disk Replacement
41
Front Shroud Removal
44
Lower Control Board (LCB) Replacement
45
ECB (Electromagnetic Brake) Replacement
46
ECB Belt Replacement
48
Drive Belt Replacement
49
Pulley Axle Set Replacement
50
Drive Axle Set Replacement
51
Console Replacement
52
Overlay & Keypad Replacement
53
Handlebar Assembly Replacement
56
Rear Shroud Replacement
57
Incline Motor Replacement
58
Dual Action Handlebar Replacement
60
Foot Pedals Replacement
61
Pedal Arm Replacement
62
Link Arm Replacement
63
Swing Arm Replacement
65
Rear Pivot Arm Replacement
67
Testing the Ascent Trainer
68
Chapter 10 : Exploded Diagrams
69
Ascent Trainer Specifications
69
Fasteners & Assembly Tools
70
Ascent Trainer Assembly Steps
71
Stabilizing the Ascent Trainer
75
TV Programming Instructions
76
Chapter 11: Upgrades
78
Belt Tensioner Bearing Replacement
78
Bearing Assembly Shimming
79
Upgrading Handgrips with Resistance Buttons
80
Installing Adjustable Tensioner
81
Chapter 12: Software Upgrade Procedure
85
Software Upgrade Procedure
85
5
