9.19 REAR PIVOT ARM REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off the power and disconnect the cord from the machine.
2) Remove the rear shrouds as outlined in Section 9.11.
3) Remove the bolts holding the rear pivot arm to the incline motor (Figure A).
4) Remove the 4 bolts that hold the upper pivot arm assembly to the lower pivot arm (Figure B) and carefully swing the upper arm assembly
forward and out of the way.
5) Remove the pivot shaft bolt and taper washer from the pivot assembly (Figures C).
6) Remove the pivot shaft and rear pivot arm from the frame (Figure D).
7) Reverse Steps 1-6 to install a new pivot arm assembly. note: Tighten the pivot shaft bolt to 40 N-m torque.
8) Test the Ascent Trainer for function as outlined in Section 9.19.

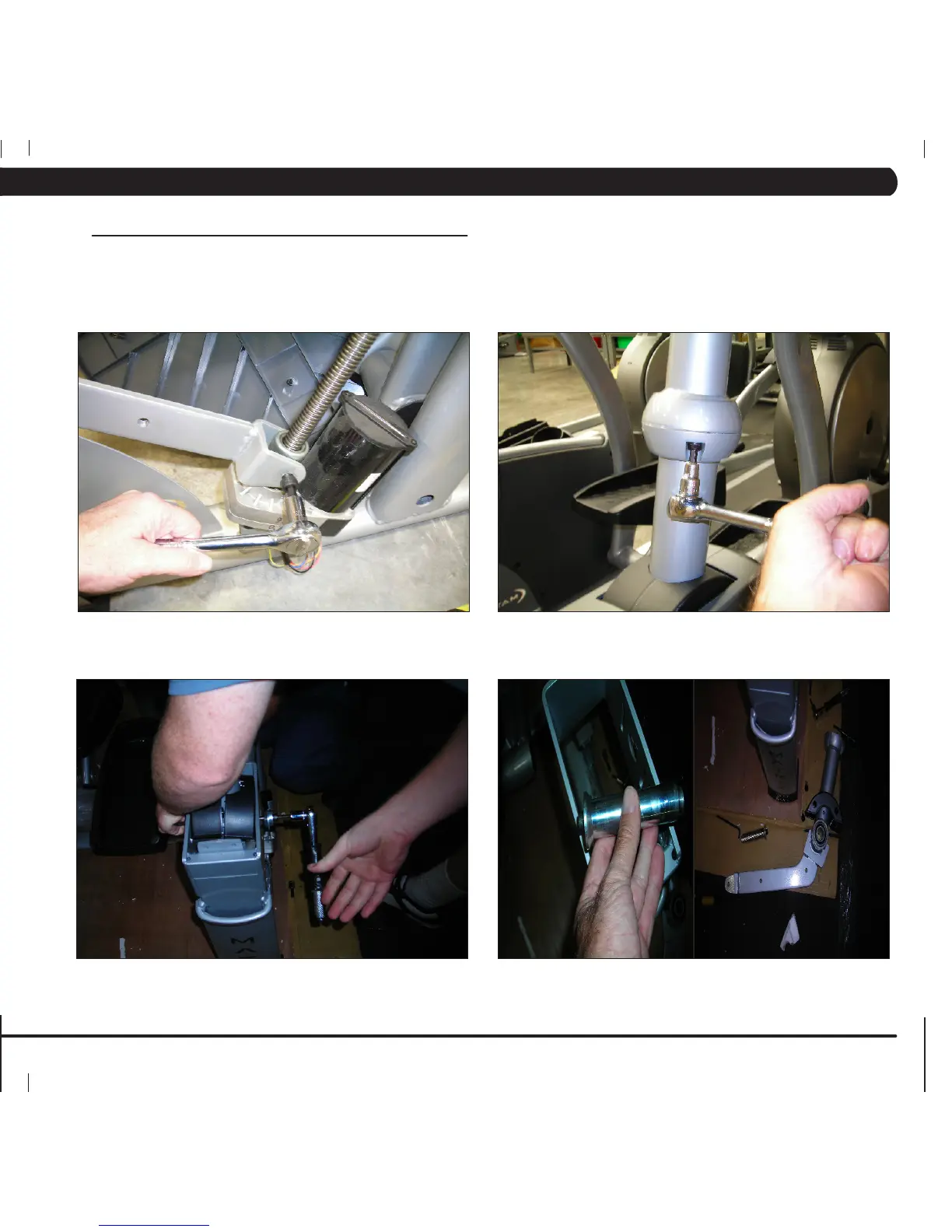

FIGURE A FIGURE B
