9.4 ECB (ELECTRONIC BRAKE) REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power and disconnect the cord from the machine.
2) Remove the front disks as outlined in Section 9.1.
3) Remove the front shrouds as outlined in Section 9.2.
4) Unplug the ECB (under mast connection point) from the wire harness (Figures A & B).
5) Loosen the 11mm nut on the tension loop bolt (Figure C).
6) Remove the tension loop bolt from the ECB bracket. (Figure D).

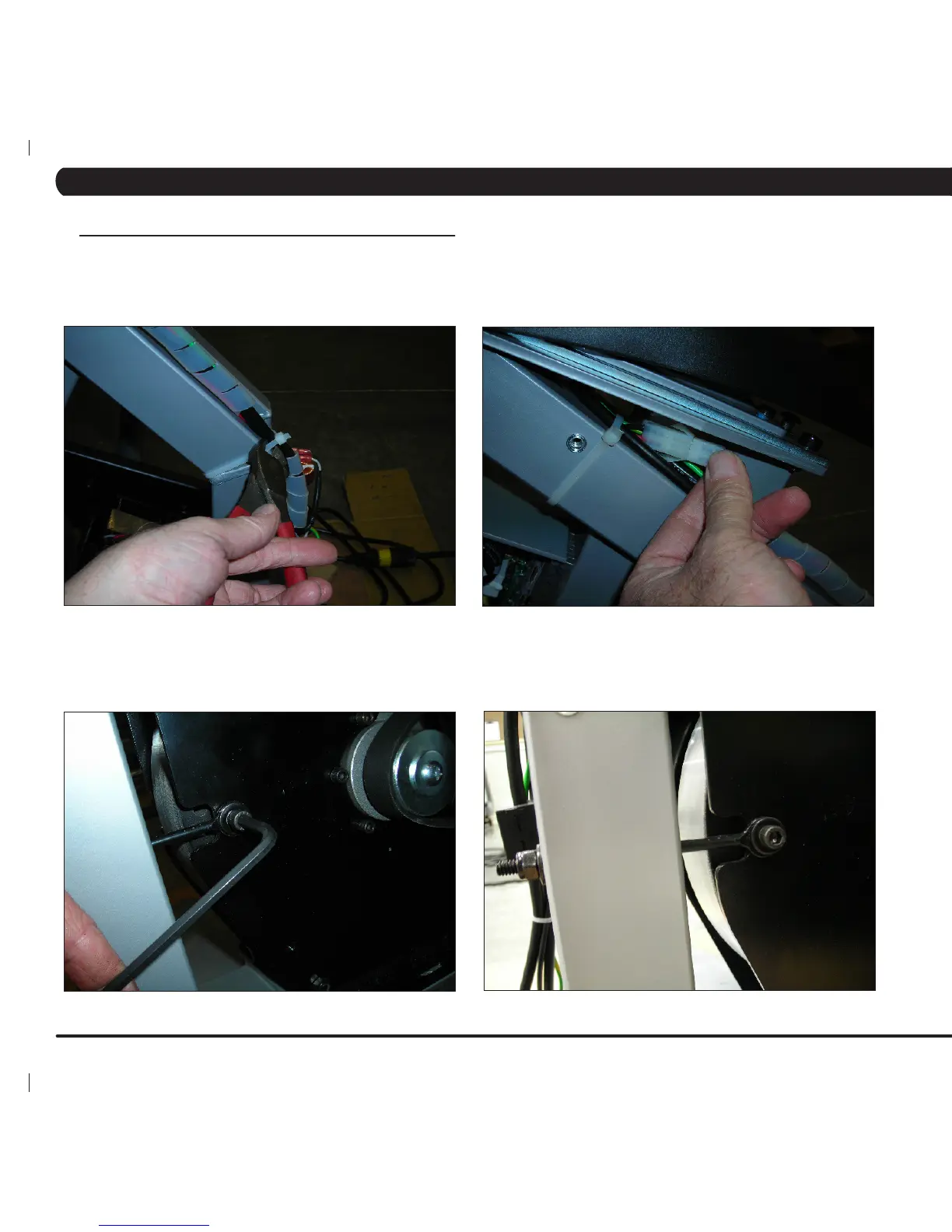

FIGURE A FIGURE B
FIGURE C
FIGURE D
