9.13 INCLINE MOTOR REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off the power and disconnect the cord from the machine.
2) Remove the rear shrouds as outlined in Section 9.11.
3) Disconnect the incline motor ground wire from frame. (Figure A).
4) Carefully remove the two 8mm bolts that hold the swing arm to the motor assembly (Figure B).
5) Secure the swing arm as once the bolts are removed it will fall (Figure C)
6) Move the swing arm up to rest against the frame so it is clear of the motor.
7) Remove the motor by disassembling the pivot bolt (Figure D).

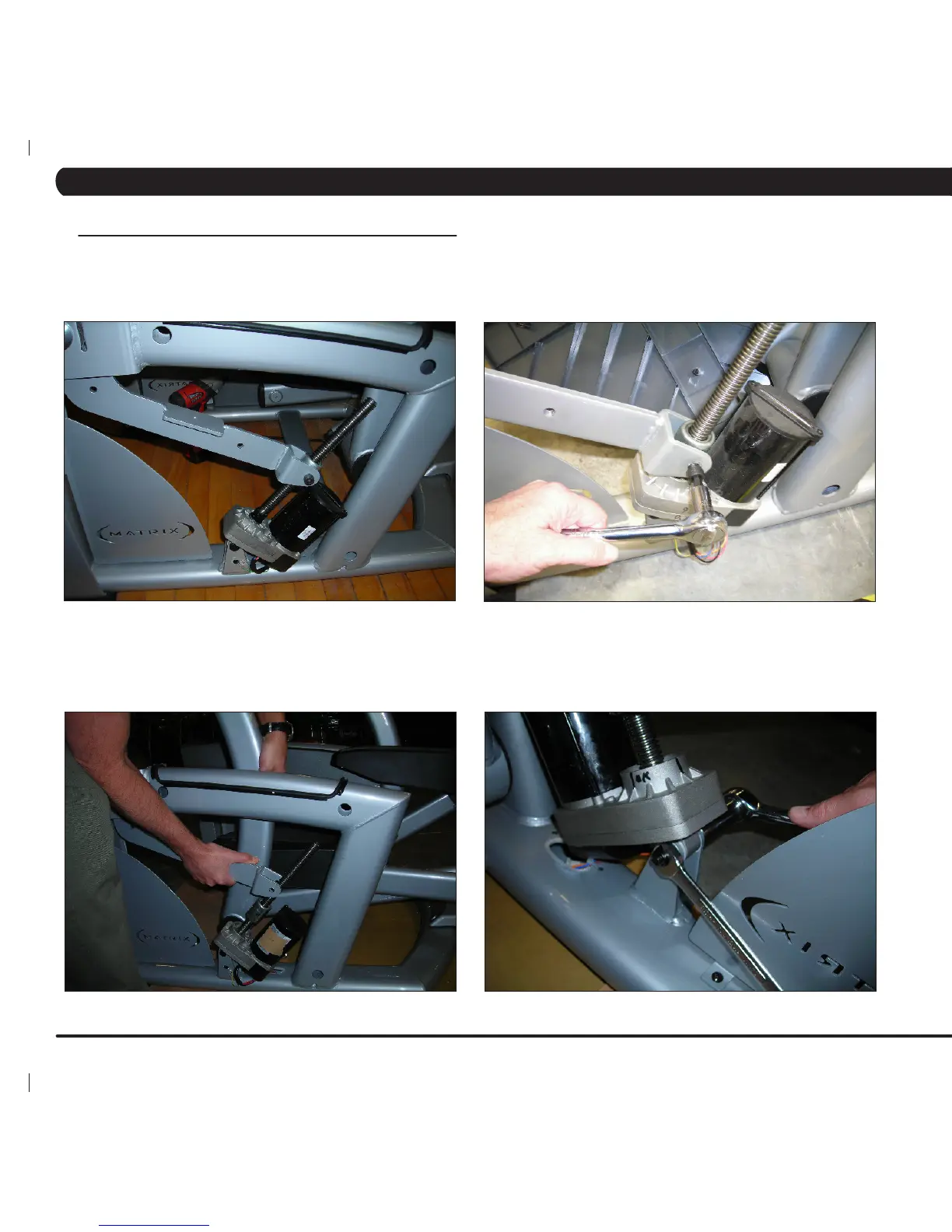

FIGURE A
FIGURE B
FIGURE DFIGURE C
