Matrix A7X-01 User Manual

53
9.12 REAR SHROUD REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE

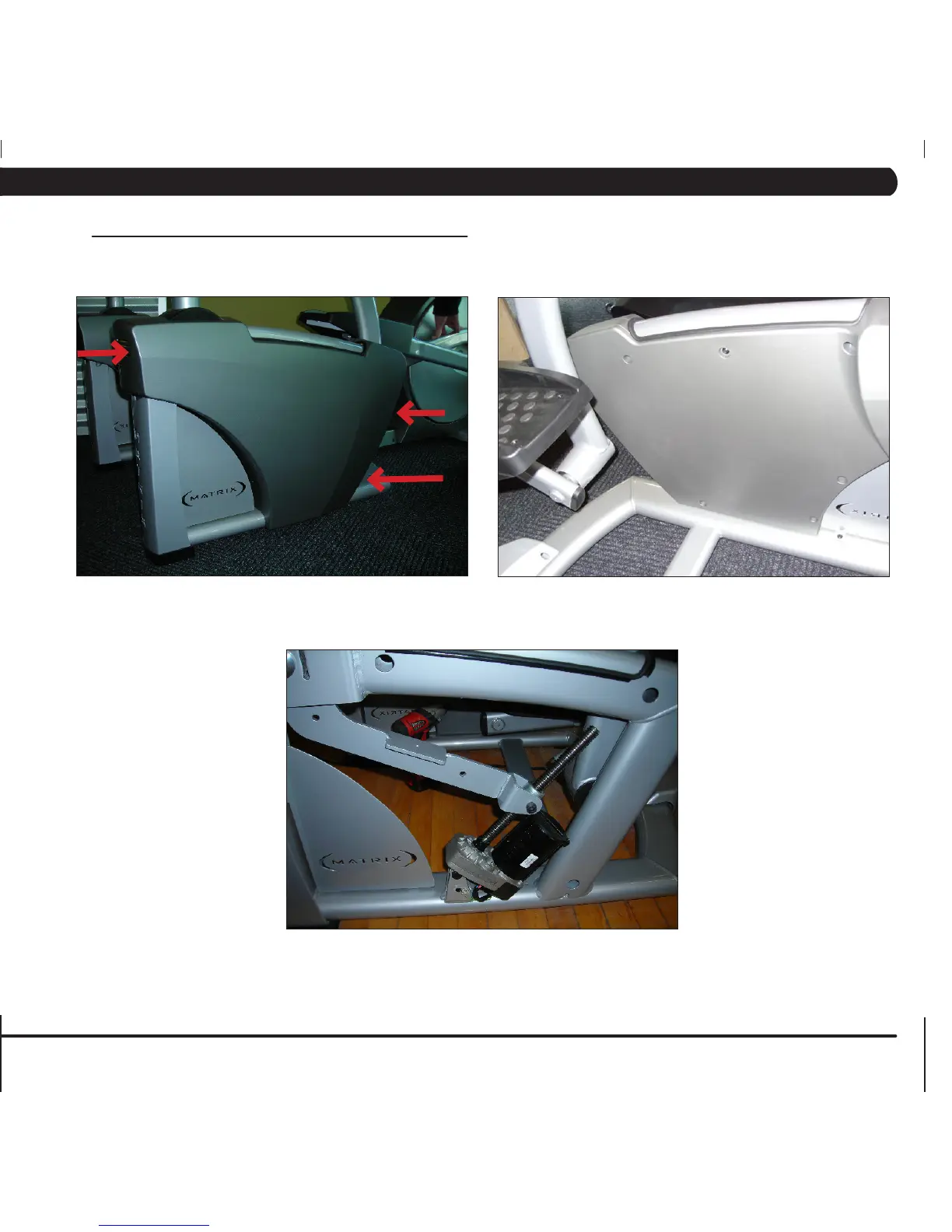

1) Remove the 3 screws on the outer shroud (1 at the rear of the machine and 2 at the front) (Figure A).
2) Remove the 6 screws on the inner shroud (Figure B).
3) Remove the shrouds from the machine. (Figure C).
4) Repeat the same steps for the other side of the machine.
5) Reverse steps 1-4 to install new shrouds.
6) Test the Ascent Trainer for function as outlined in Section 9.19.
FIGURE A
FIGURE B
FIGURE C
