62
9.18 SWING ARM REPLACEMENT - CONTINUED
CHAPTER 9: PART REPLACEMENT GUIDE

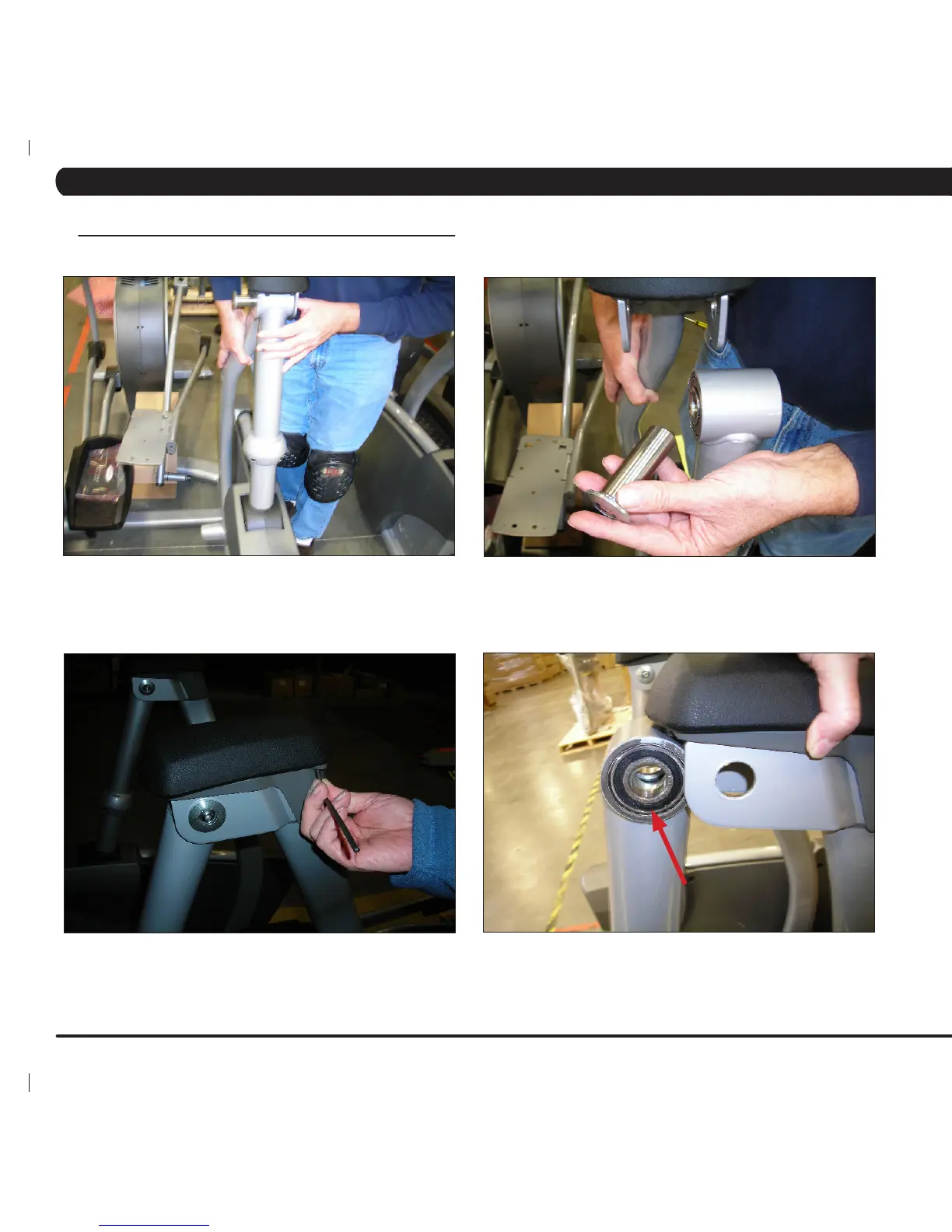

FIGURE F FIGURE G
FIGURE H FIGURE I
5) Holding onto the swing arm, push / pull the pivot shaft out of the bearing housing (Figures F and G).
6) Transfer the rubber arm pad and plastic parts to the new swing arm. (Figure H).
7) Reverse Steps 1-6 to install the new swing arm. note: Be aware of the spacer between the bearings that the shaft passes through (Figure I).
8) Test the Ascent Trainer for function as outlined in Section 9.19.
