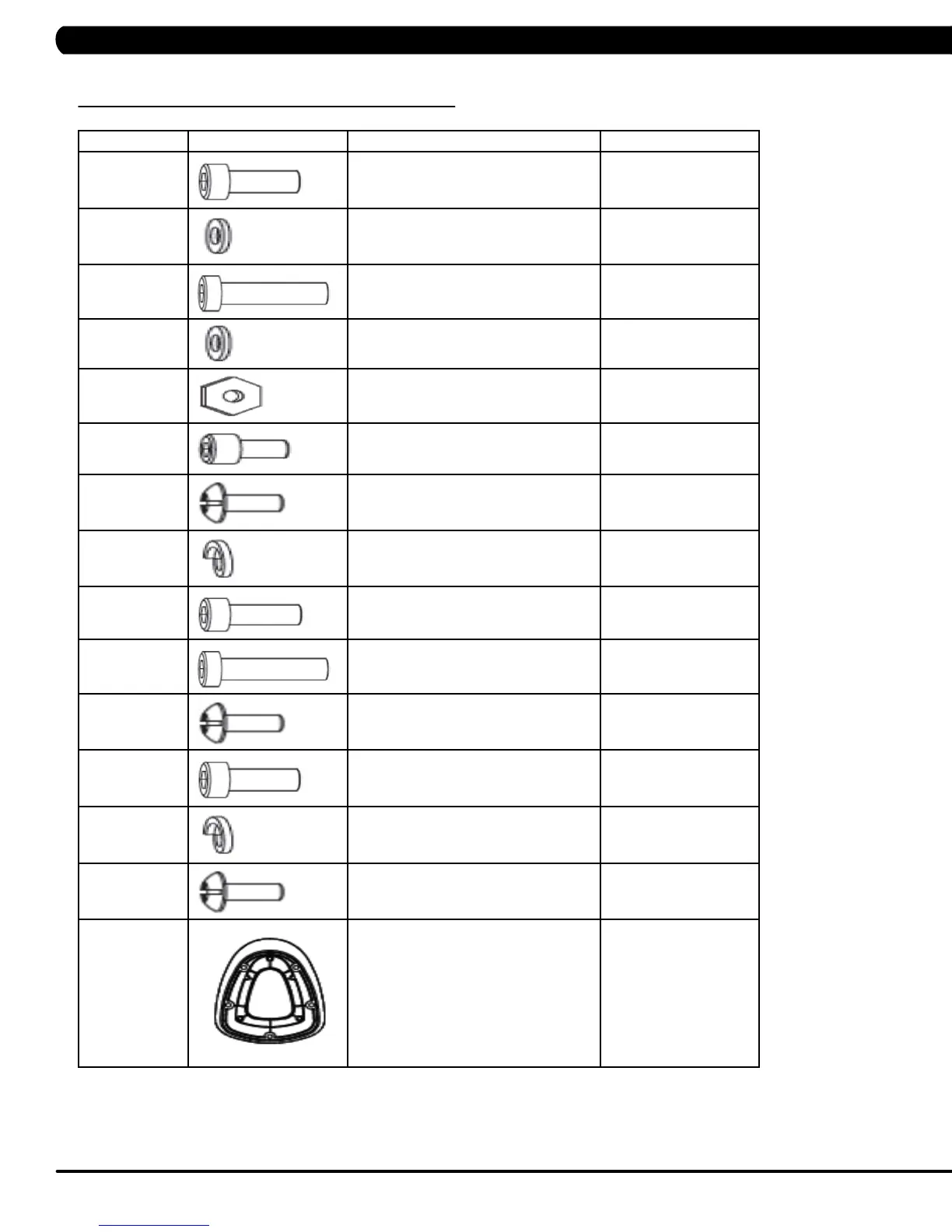

CHAPTER 10: ASCENT TRAINER SPECIFICATIONS AND ASSEMBLY GUIDE
10.2 ASSEMBLY HARDWARE
QUANTITY SKETCH DESCRIPTION PACKAGE COLOR
4
SOCKET HEAD CAP SCREW
(M10 X 1.5P X 25L)
10.9 GRADE MINIMUM
RED (2 BAGS)
4
FLAT WASHER
(10.2 X 20 X 2.0T)
RED (2 BAGS)
1
SOCKET HEAD CAP SCREW
(M10 X 1.5P X 100L)
12.9 GRADE MINIMUM
GREEN
2
FLAT WASHER
(10.2 X 20 X 2.0T)
GREEN
1
HEX NUT
(M10)
10.9 GRADE MINIMUM
GREEN
5
SCREW
(M5 X 0.8P X 10L)
YELLOW
2
SCREW
(M5 X 0.8 X 12L)
BLACK (2 BAGS)
4
SPRING WASHER
(8.2 X 15.4 X 2.0T)
BLACK (2 BAGS)
4
SOCKET HEAD CAP SCREW
(M8 X 1.25P X 20L)
10.9 GRADE MINIMUM
BLACK (2 BAGS)
1
SOCKET HEAD CAP SCREW
(M8 X 1.25P X 45L)
10.9 GRADE MINIMUM
BLUE (2 BAGS)
3
SCREW
(M5 X 0.8P X 16L)
BLUE (2 BAGS)
4
SOCKET HEAD CAP SCREW
(M8 X 1.25P X 25L)
WHITE
4
SPRING WASHER
(8.2 X 13.5 X 2.0T)
WHITE
12
SCREW
(M5 X 0.8P X 16L)
PINK
1
ADAPTOR PLATE
(ONLY USED ON PREMIUM AND LA
CONSOLE INCLUDING E5X FRAME)
