Matrix A7XI-01 - LCB Error Indicators

60

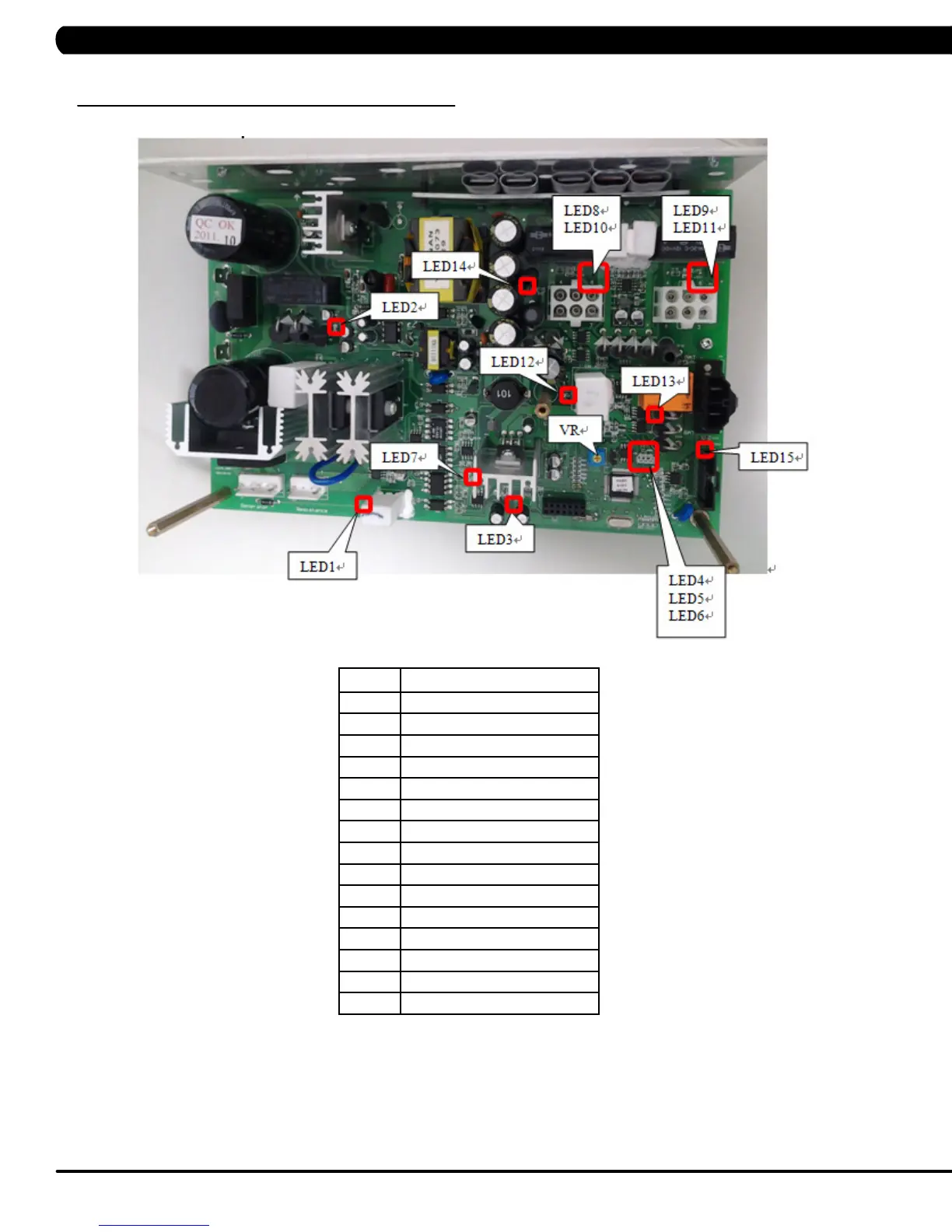

8.2 LCB LED INDICATORS
CHAPTER 8: TROUBLESHOOTING
LED # Description
1 Generator RPM
2 AC Plug-in
3 Vcc(5V)
4 System Status
5 Error Status
6 Error Status
7 Resistance
8 Incline 1 Forward
9 Incline 2 Forward
10 Incline 1 Rearward
11 Incline 2 Rearward
12 Charge
13 Discharge
14 12V/6A(main power)
15 Console Power
