CHAPTER 9: PART REPLACEMENT GUIDE
9.4 GENERATOR REPLACEMENT – CONTINUED

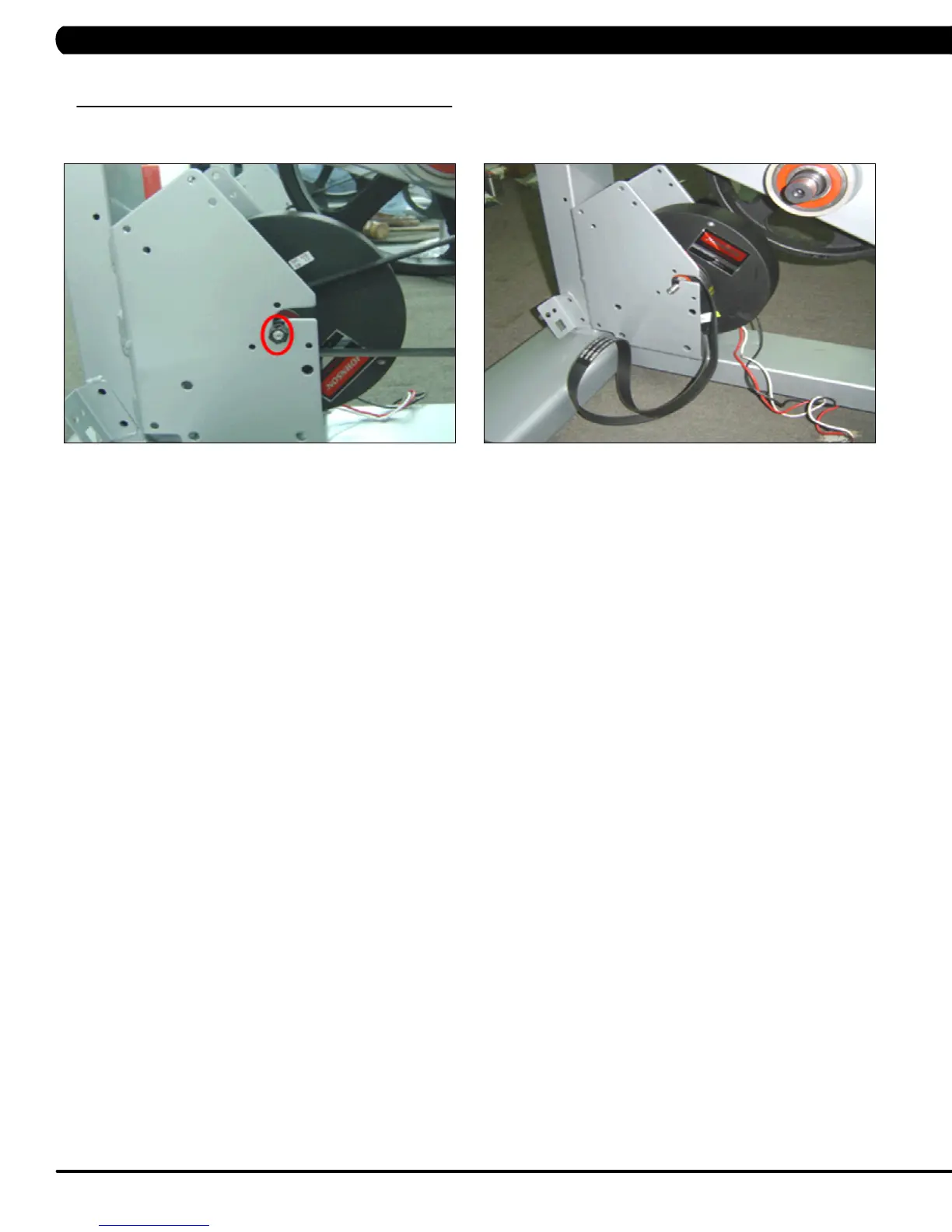

FIGURE E FIGURE F
8) Remove the nut from the other side of the generator bracket (Figure E).
9) Loosen and remove the generator belt (Figure F).
10) Remove the generator from the frame.
11) Reverse Steps 1-10 to install a new generator. Re-install the belts as outlined in Section 9.5. note: The 3 screws removed in Step 7
should be torqued to 8 N-m and the nut from Step 8 to 40 N-m.
12) Test the Ascent Trainer for function as outlined in Section 9.22.
