Matrix G7-S70 User Manual

11

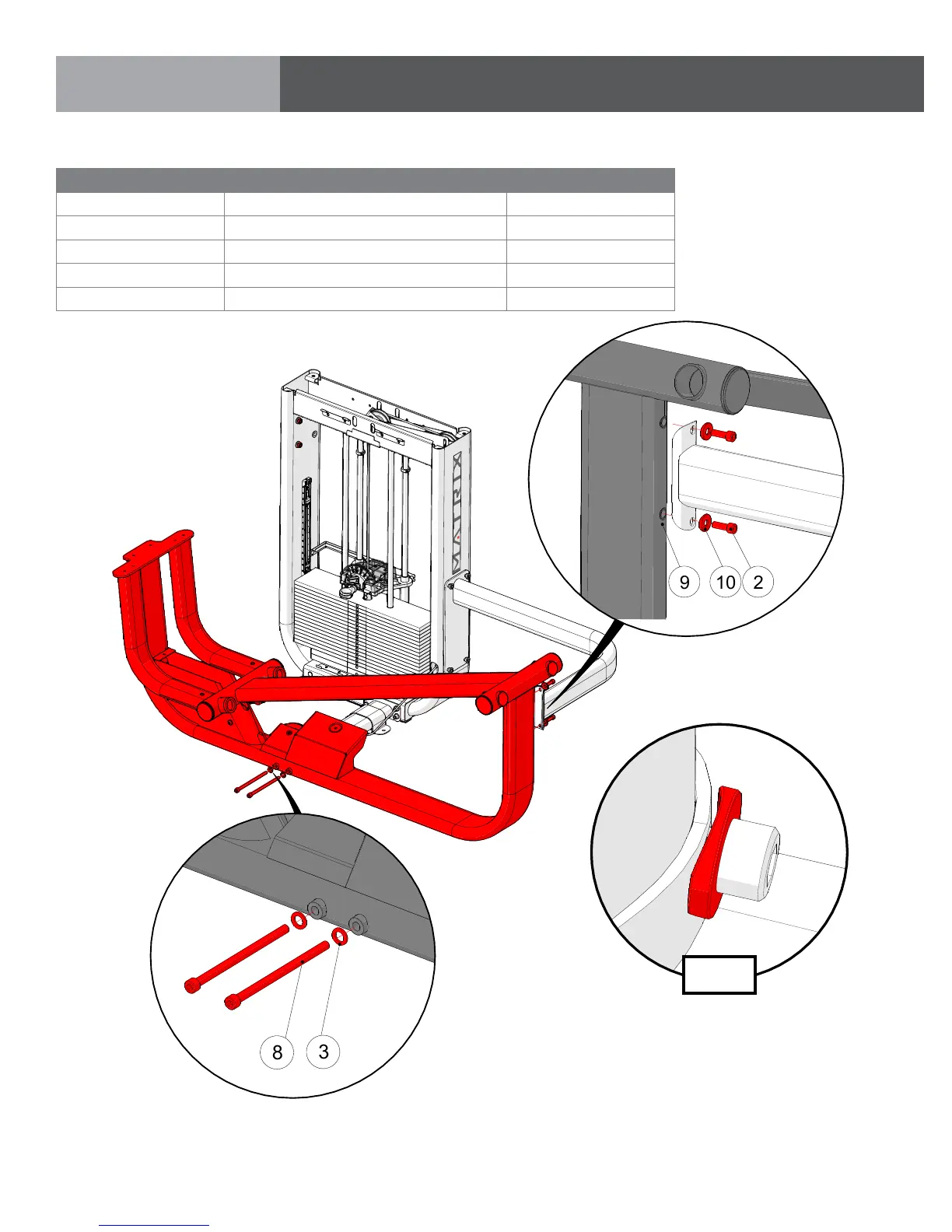

STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
2 M10 X 30L SHC 2
3 M10 Flat Washer (25 mm Diameter) 2
8 M10 X 170L SHC 2
9 User Frame 1
10 M10 Saddle Washer 2
ASSEMBLY
PART 1: USER FRAME ASSEMBLY
9
10
2
3
8
View A
• Ensurethattheframeislevelandthatalloorpadscontacttheoorequally
• Install the frame hardware as shown, orienting the saddle washers as shown in View A.
• TorqueallM10FrameHardwareonpages9&10to:77N-m/57ft/lbs.
