Matrix G7-S70 User Manual

18
ASSEMBLY

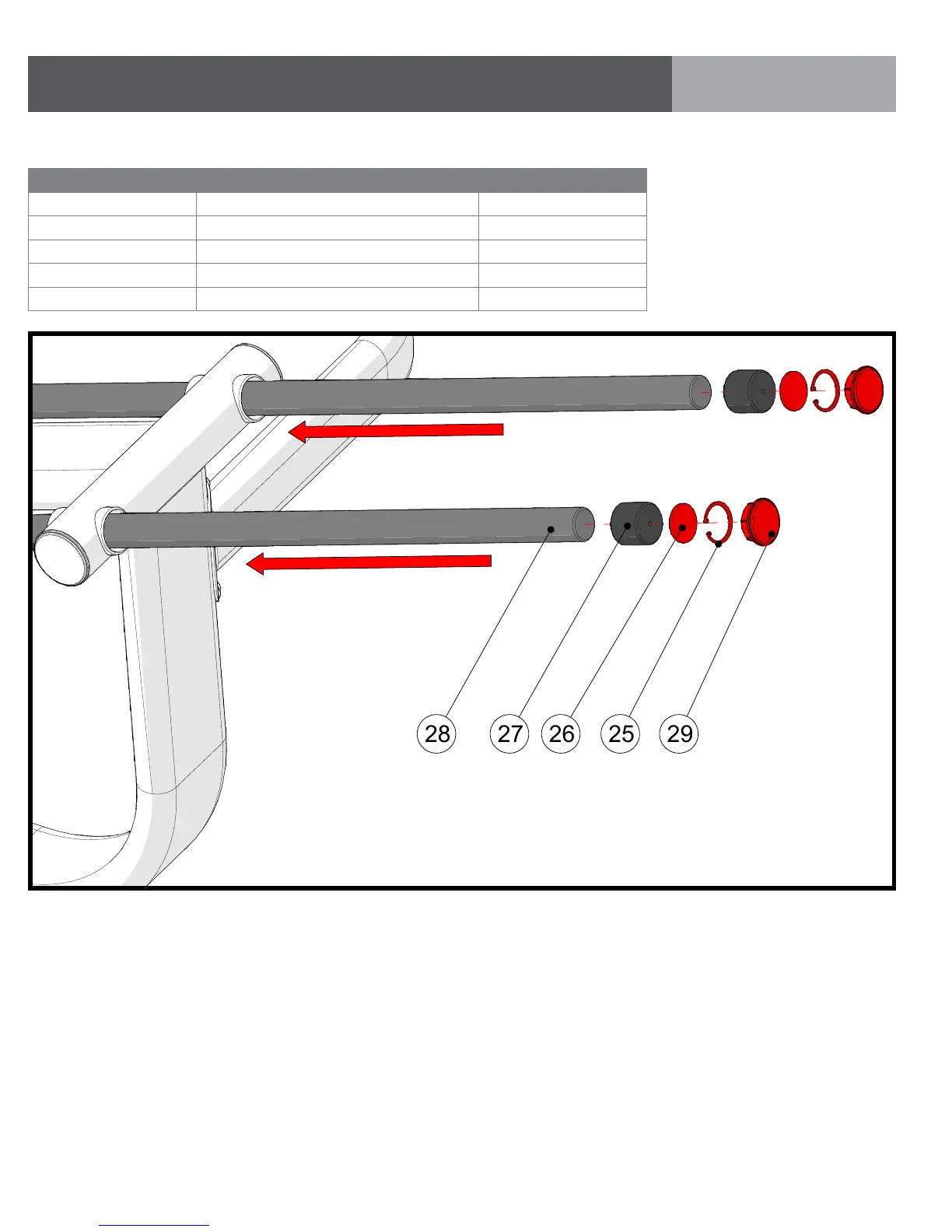

STEP 3 | SEAT GUIDE ROD ASSEMBLY INSTRUCTIONS & NOTES
PART 3: SEAT ASSEMBLY
ID DESCRIPTION QUANITY
25 Snap Ring 2
26 Disc (45 mm Diameter) 2
27 Guide Rod Sleeve 2
28 Guide Rod 2
29 End Cap 2
• Assemble components as shown
• Torquelinearbearingsfrompage15to77N-m/57ft-lbs.
28
27
26
25
29
