Assemblebearingstosledasshown-DONOTFULLYTIGHTEN
22
21
23
20
19

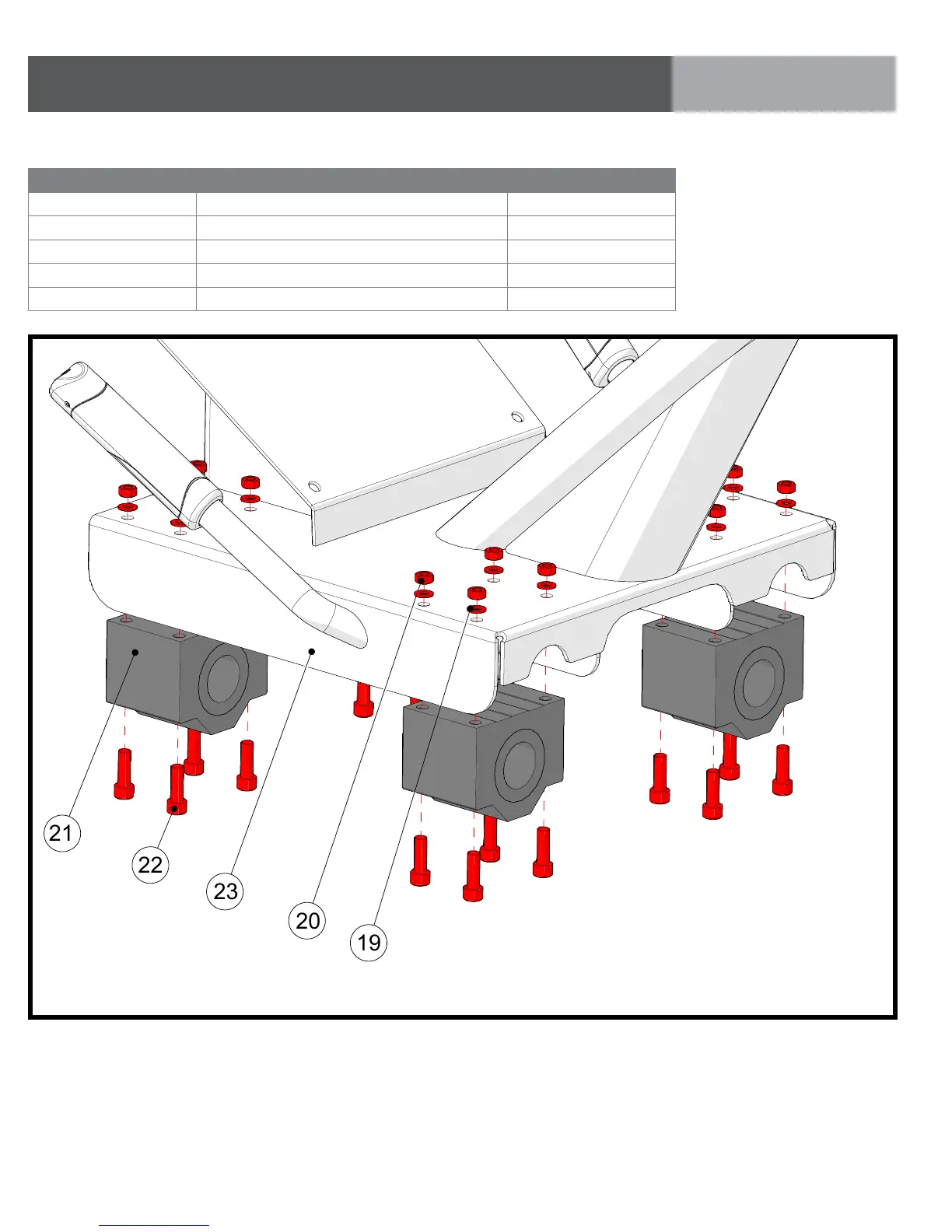

STEP 1 | SEAT SLED ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
19 M8 Flat Washer 16
20 M8 Nylock Nut 16
21 Linear Bearing Block 4
22 M8 X 30L SHC 16
23 Seat Sled 1
ASSEMBLY
PART 3: SEAT ASSEMBLY
