Matrix G7-S70 User Manual

12

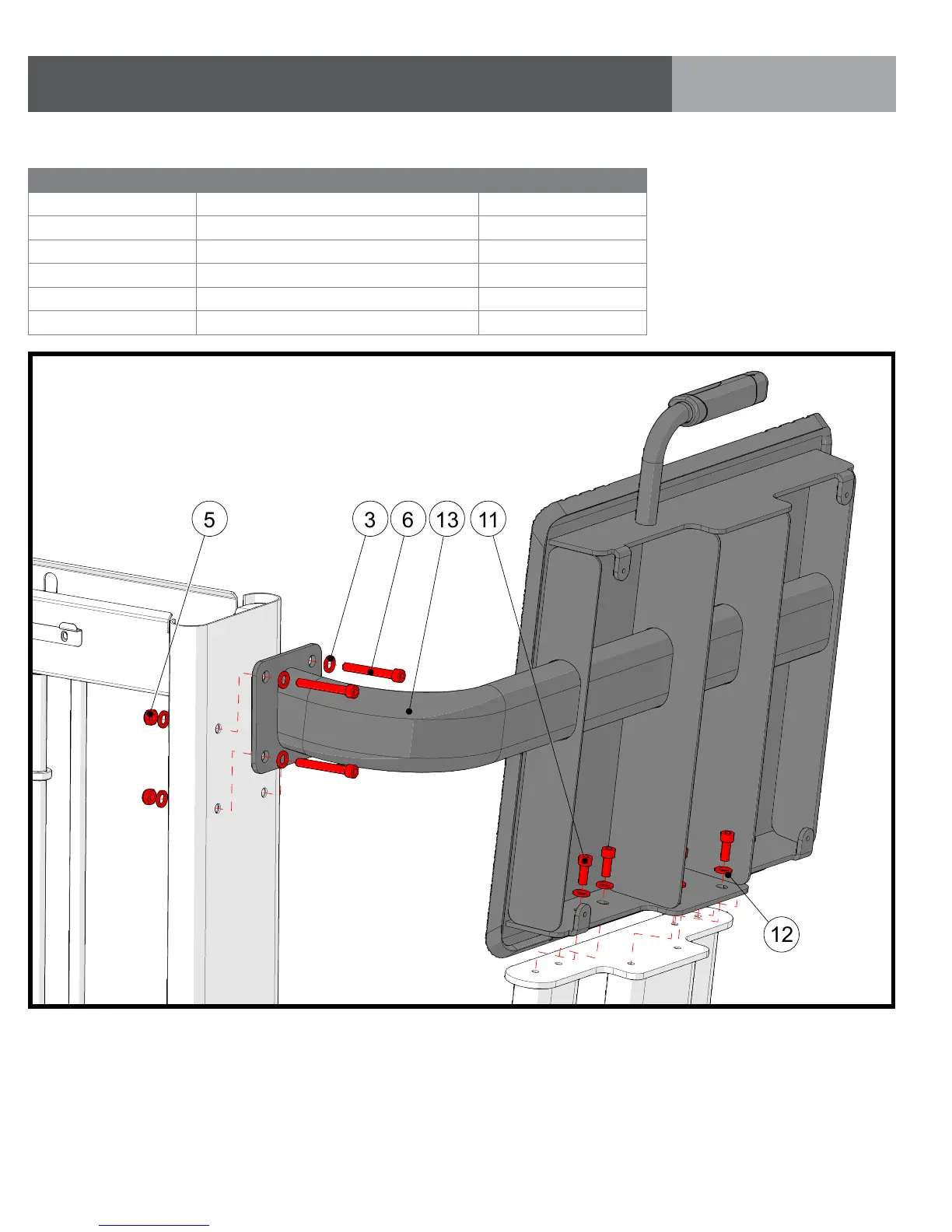

STEP 3 | FOOT PLATE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 Flat Washer (25 mm Diameter) 8
5 M10 Nylock Nut 4
6 M10 X 75L SHC 4
11 M10 X 25L SHC 6
12 M10 Flat Washer (22 mm Diameter) 6
13 Footplate Assembly 1
ASSEMBLY
PART 1: USER FRAME ASSEMBLY
11
5
3
6
13
12
Torqueto77N-m/57ft-lbs.

Matrix G7-S70 Specifications

General

Brand	Matrix
Model	G7-S70
Category	Home Gym
Language	English
