ASSEMBLY
STEP 2 | SLED AND GUIDE ROD ASSEMBLY INSTRUCTIONS & NOTES
PART 3: SEAT ASSEMBLY
24
25
26
27
23
28

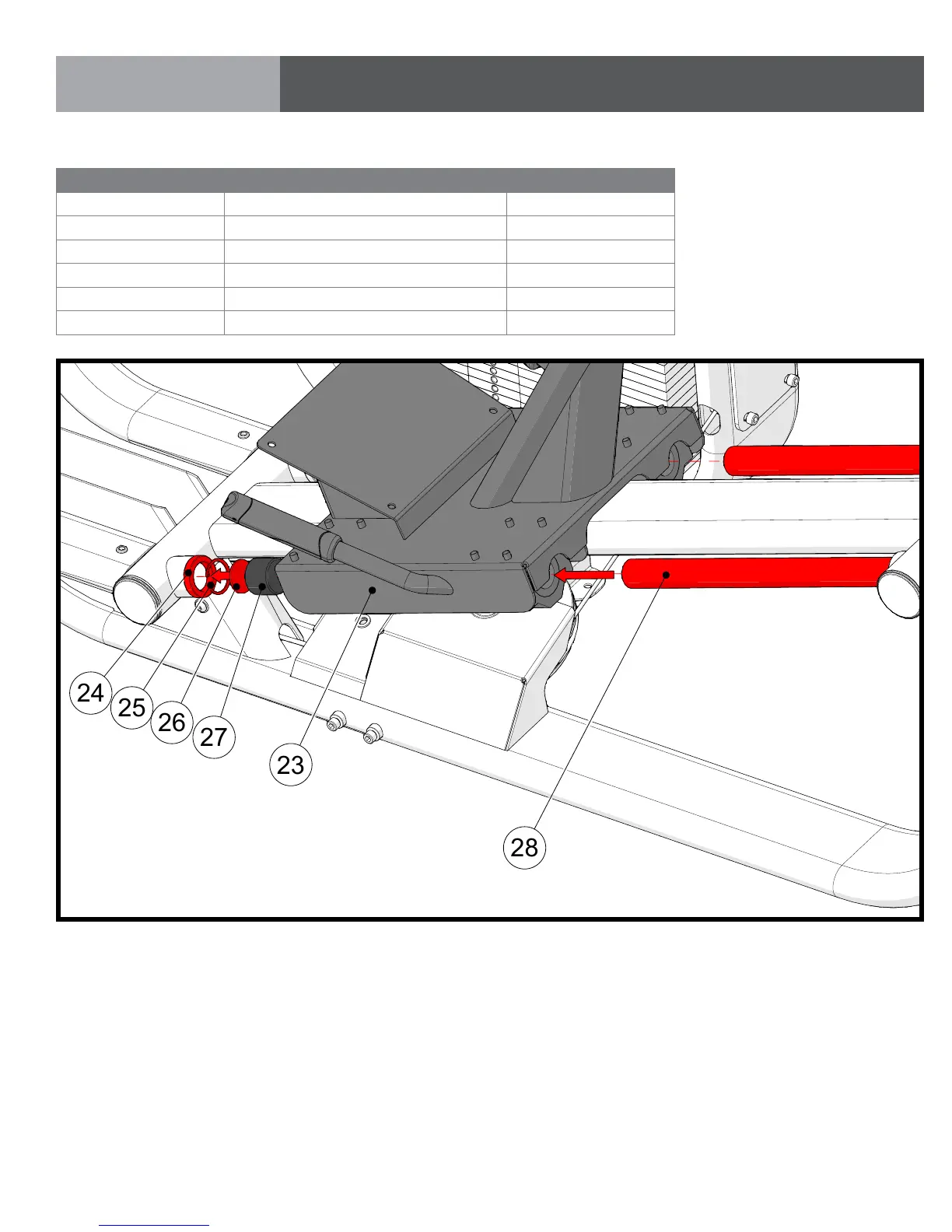

Assemble guide rods onto sled as shown
ID DESCRIPTION QUANITY
23 Seat Sled 1
24 Rubber Bumper Stop 2
25 Snap Ring 2
26 Disc (45 mm Diameter) 2
27 Guide Rod Sleeve 2
28 Guide Rod 2
