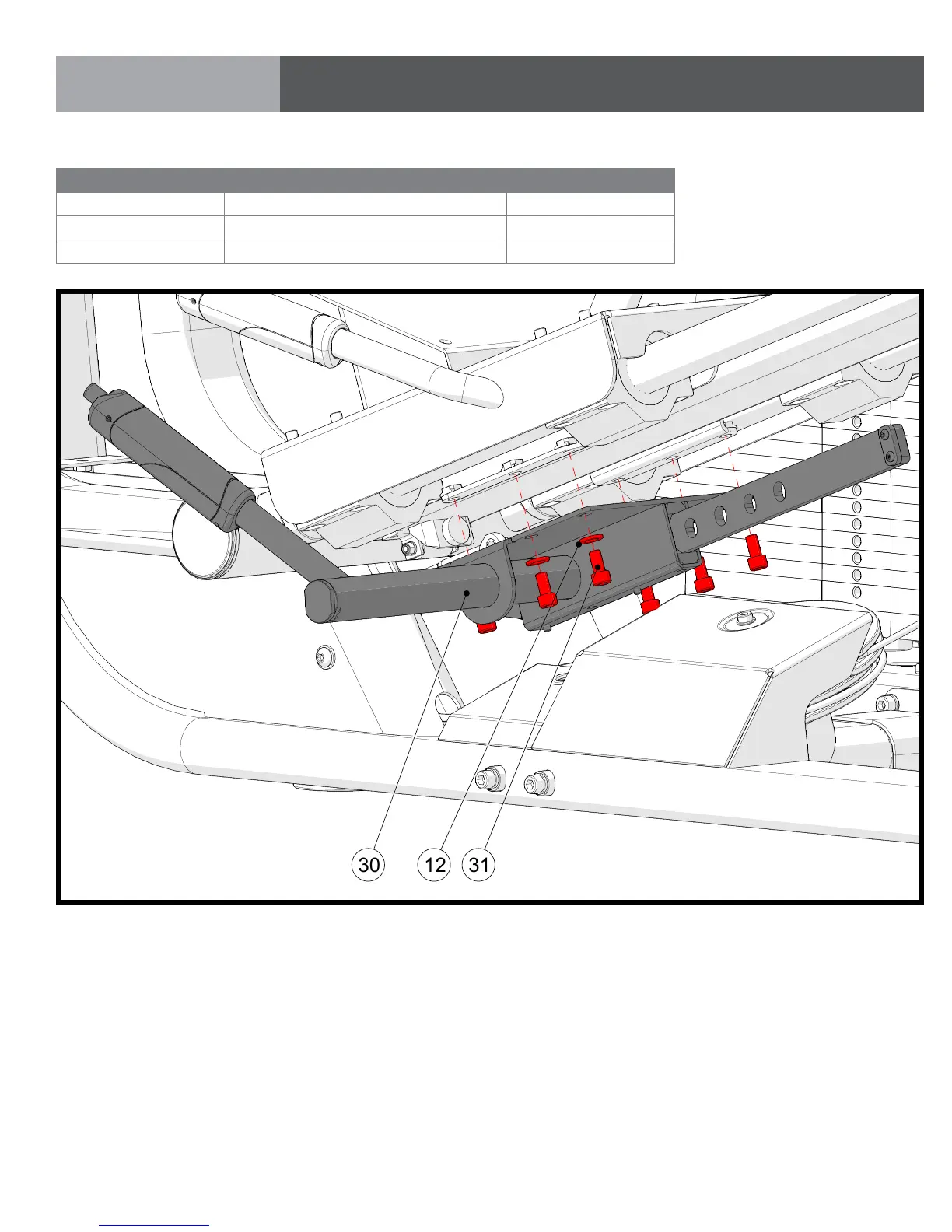

Assemble ROM assembly as shown.
Tightento77N-m/57ft-lbs.
ASSEMBLY
STEP 4 | ROM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: SEAT ASSEMBLY
ID DESCRIPTION QUANITY
12 M10 Flat Washer (22 mm Diameter) 6
30 ROM Assembly 1
31 M10 X 20L SHC 6
12
30
31
