Matrix G7-S70 User Manual

20
ASSEMBLY

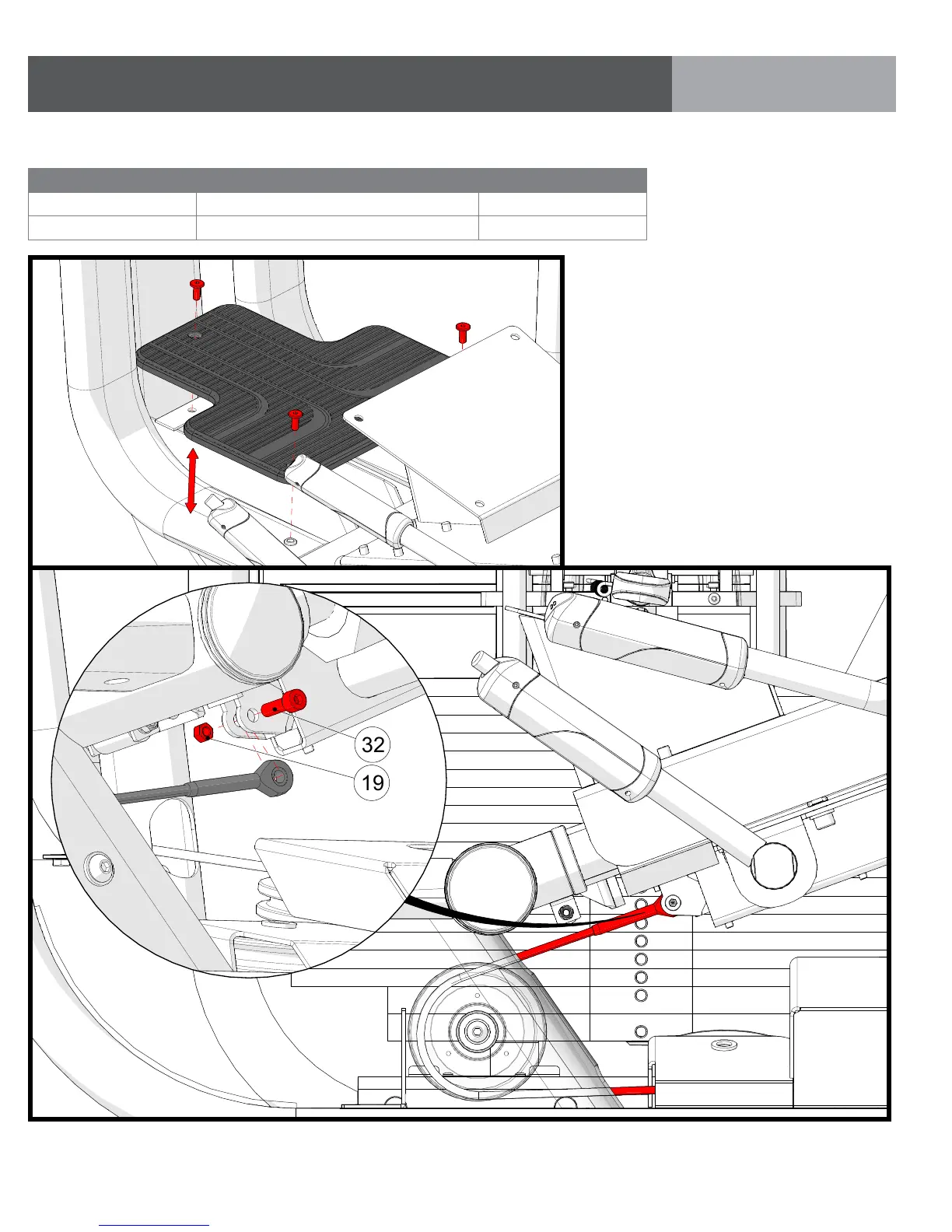

STEP 5 | CABLE TO SEAT SLED ASSEMBLY INSTRUCTIONS & NOTES
PART 3: SEAT ASSEMBLY
ID DESCRIPTION QUANITY
19 M8 Nylock Nut 1
32 M8 Shoulder Bolt 1
19
32
• Remove lower foot plate to
gain access to lower pulley and
cable end
• Assemble cable end as show
• Torqueshoulderboltto:16
N-m/142in-lbs.
• Reassemble foot plate
