Matrix G7-S70 User Manual

24
STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
41 M8 X 60L SHC 4
42 Top Cap 1
ASSEMBLY
PART 5: PL ASTICS ASSEMBLY

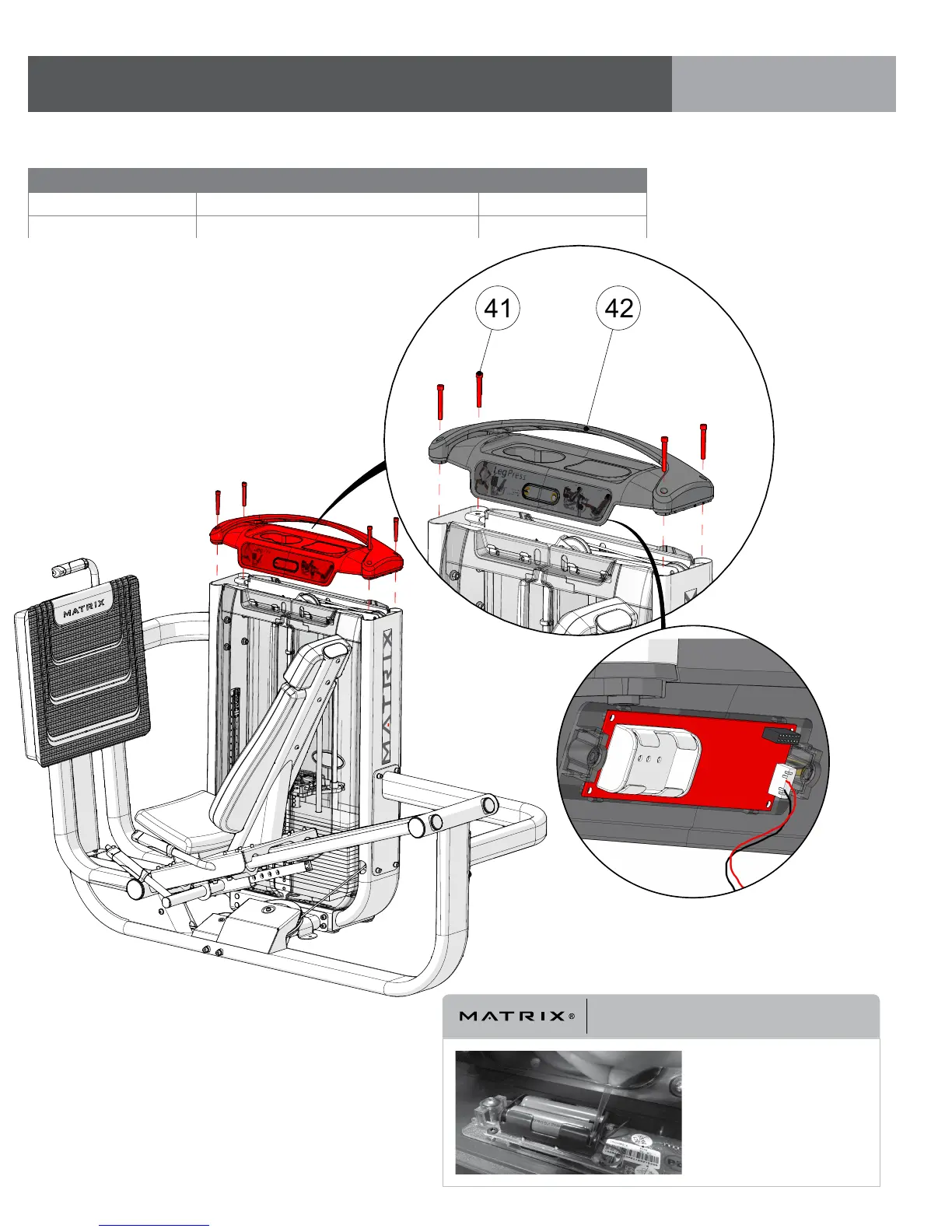

Position top cap so Rep Counter faces
the user.
41
42
Install the top cap and connect rep counter
plug as shown.
Torqueto17N-m/147in-lbs.
IMPORTANT NOTICE
PLEASE NOTE:
Be sure to remove the insulating
sheet when installing the
Rep Counter.
