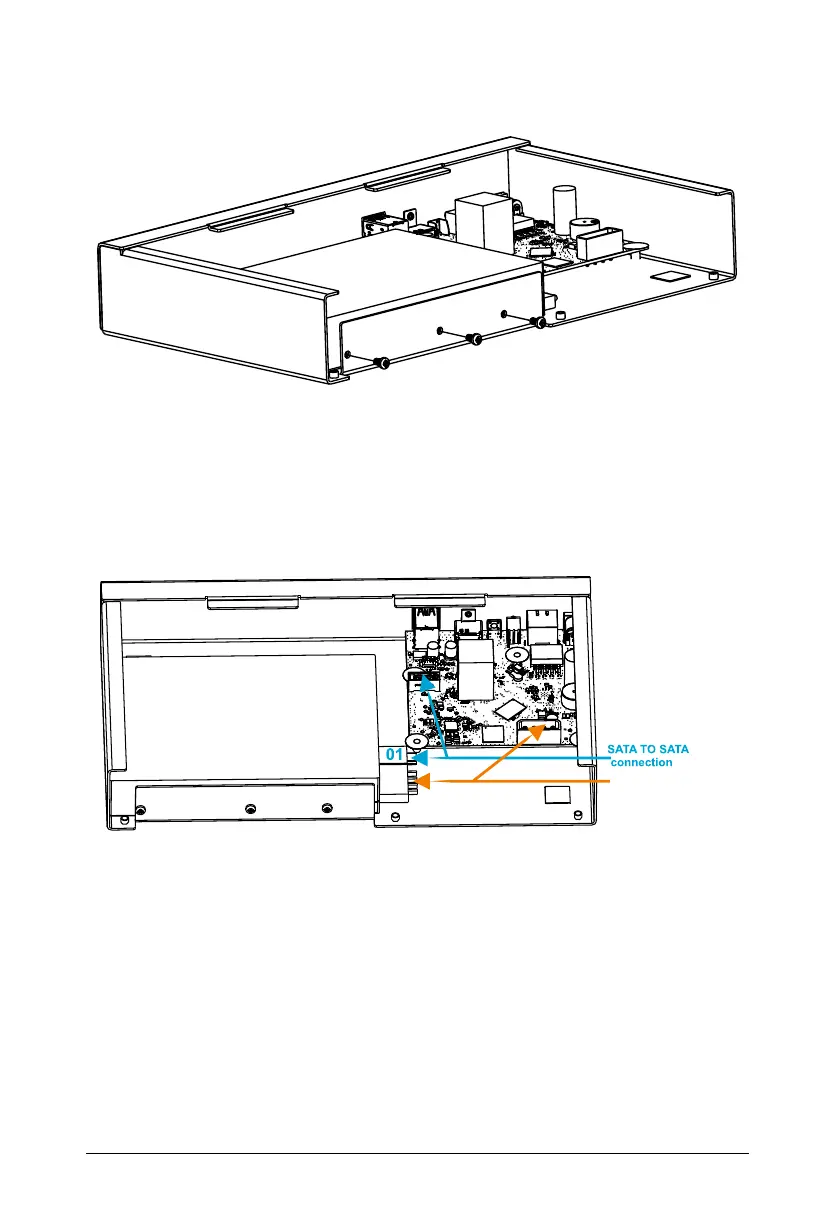

4. Affix the three screws provided into the aligned holes and tighten the same.
Hard Disk Cable Routing
5. Inside the package you will find one SATA cable for the hard disk and one Power cable.
6. Plug one end of the SATA cable(01) and Power cable (01) into the respective connectors on
the hard disk and the other ends (02) of the cable as shown below.
POWER TO SATA
connection
01
02
02
