24 Matrix SATATYA NVR Quick Start
7. Slide the top cover back in place and affix the three screws at the bottom of the enclosure.
NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2 and NVR1602X/NVR1602X P2/
NVR3202X/NVR3202X P2 HDD Installation
This section includes the common procedure of installing single Hard Disk in all the above
mentioned variants.
Hard Disk Mounting

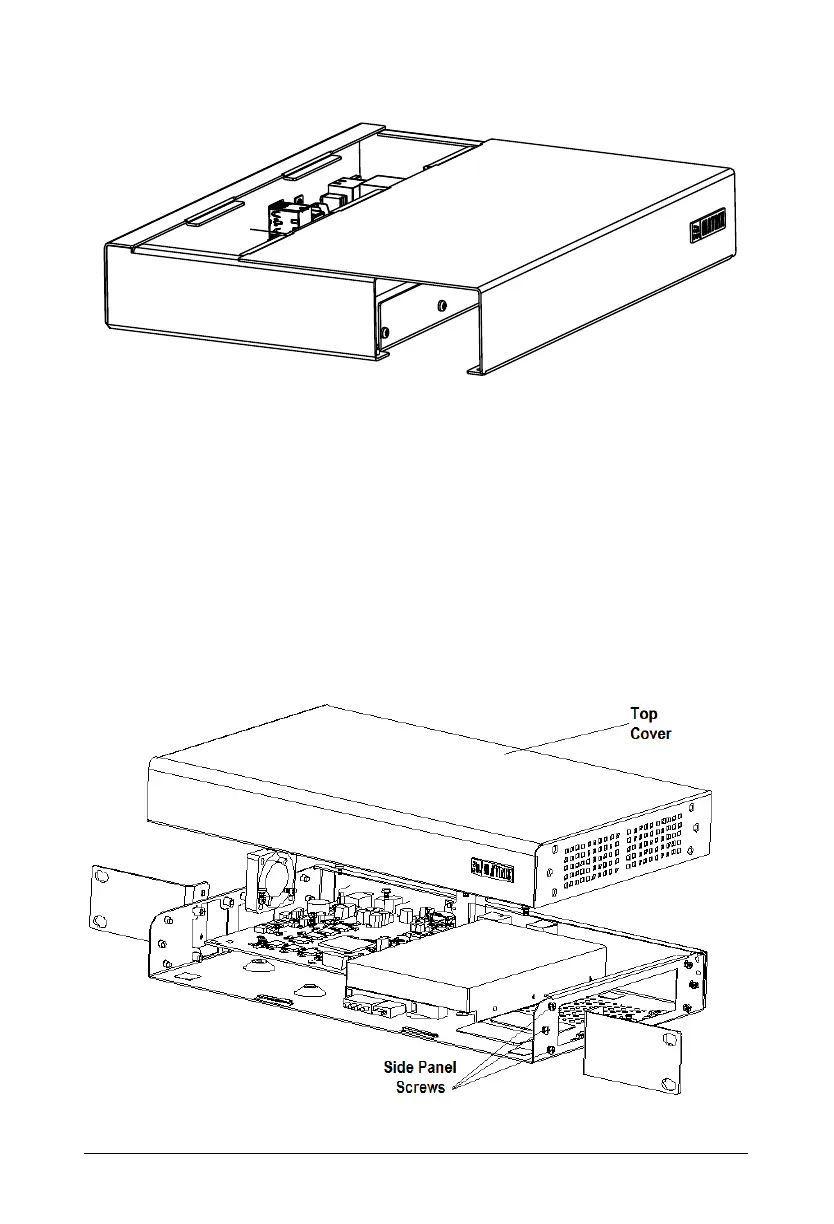

1. Loosen the screws at the side panel to remove the top cover.
2. Fix four screws in the HDD (Do not fit the screws completely, turn just two - three rounds).
NVR0801X/NVR1601X/NVR0801X P2/NVR1601X P2

Matrix SATATYA PARAM NVR8S Specifications

General

Brand	Matrix
Model	SATATYA PARAM NVR8S
Category	Security System
Language	English
