Matrix SATATYA NVR Quick Start 29

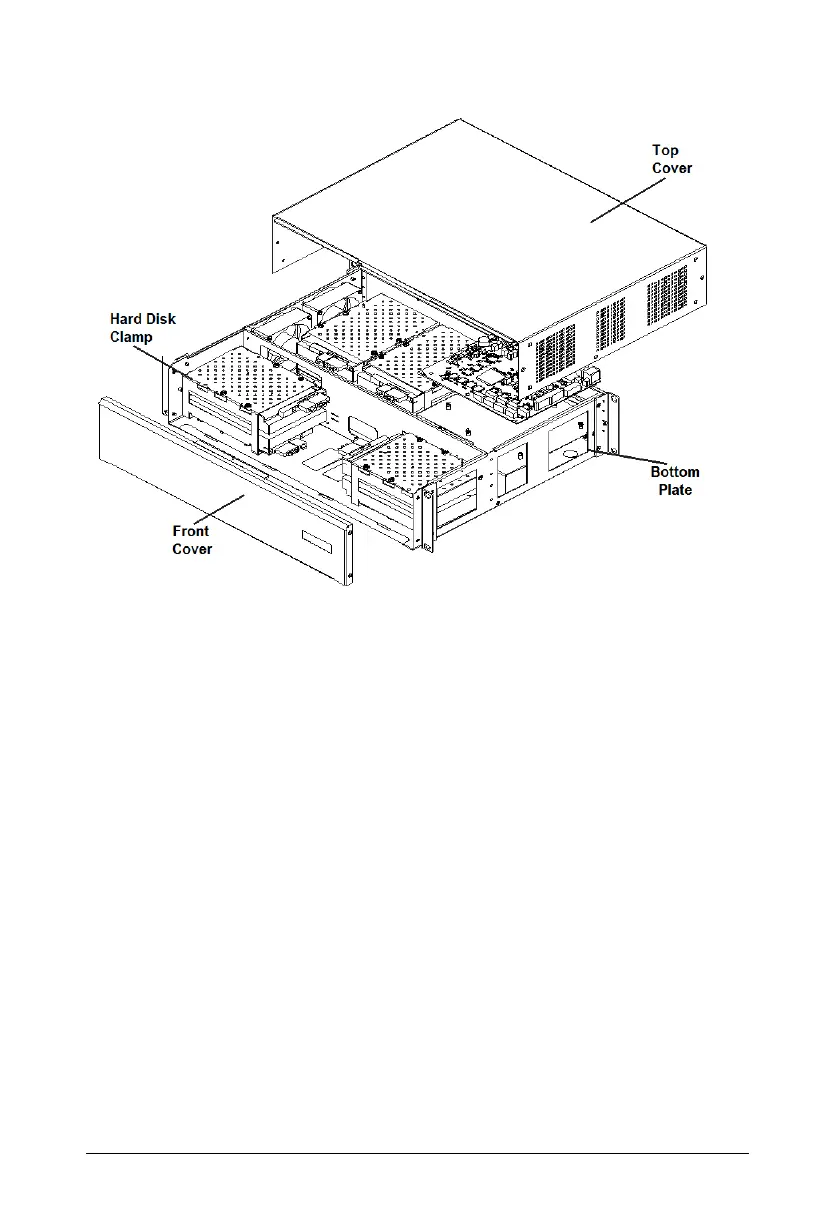

NVR6408X/NVR6408X P2/NVR9608X P2
Hard Disk Cable Routing
1. Inside the package you will find four SATA cable in NVR3204X/NVR3204X P2 and NVR6404X/
NVR6404X P2 and eight in NVR6408X/NVR6408X P2/NVR9608X P2 for each hard disk.
2. Plug the SATA cables and power cables into the respective connectors shown below on the
hard disk.
