The wire from the Mic must have an RCA connector. If the wire from the Mic has a stereo
connector, use an RCA to 3.5mm Stereo Converter cable. Connect the RCA end of the
cable to the Audio IN of the NVRX.
Audio Output
Not applicable to NVRXS P2 variants.
• You may connect low impedance earphone, active sound box or an amplified speaker to the
Audio OUT port of your NVRX variants.
Alarm In
Not applicable to NVRXS P2 variants.

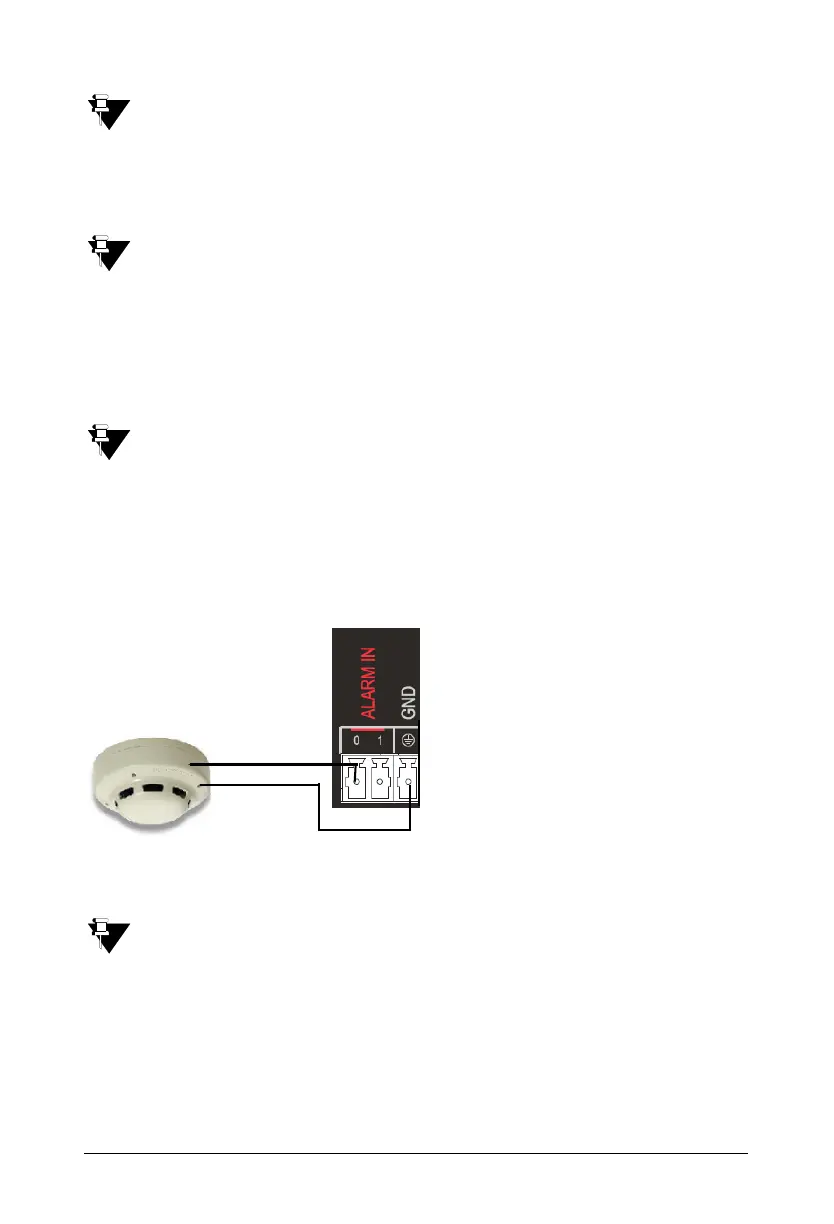

• You can connect upto 2 sensors to all the variants of NVRX. Connect the wires from the
Sensor device you have installed into the SENSOR IN/ALARM IN port on the rear panel.
Connect the NO/NC wire from the sensor into any pin (0 or 1) of Alarm IN. Connect the
ground wires from the sensor into any one of the “Ground” pins.
Alarm Devices
Not applicable to NVRXS P2 variants.
• You can connect 1 alarm device to NVRX variants. Connect the wires from the Alarm device
(Hooter or Siren) you have installed into the ALARM OUT port on the rear panel. The wires
must be fed into the terminal block plug provided to you.
NO/NC
GND
