10.3 ASSEMBLY INSTRUCTIONS - CONTINUED

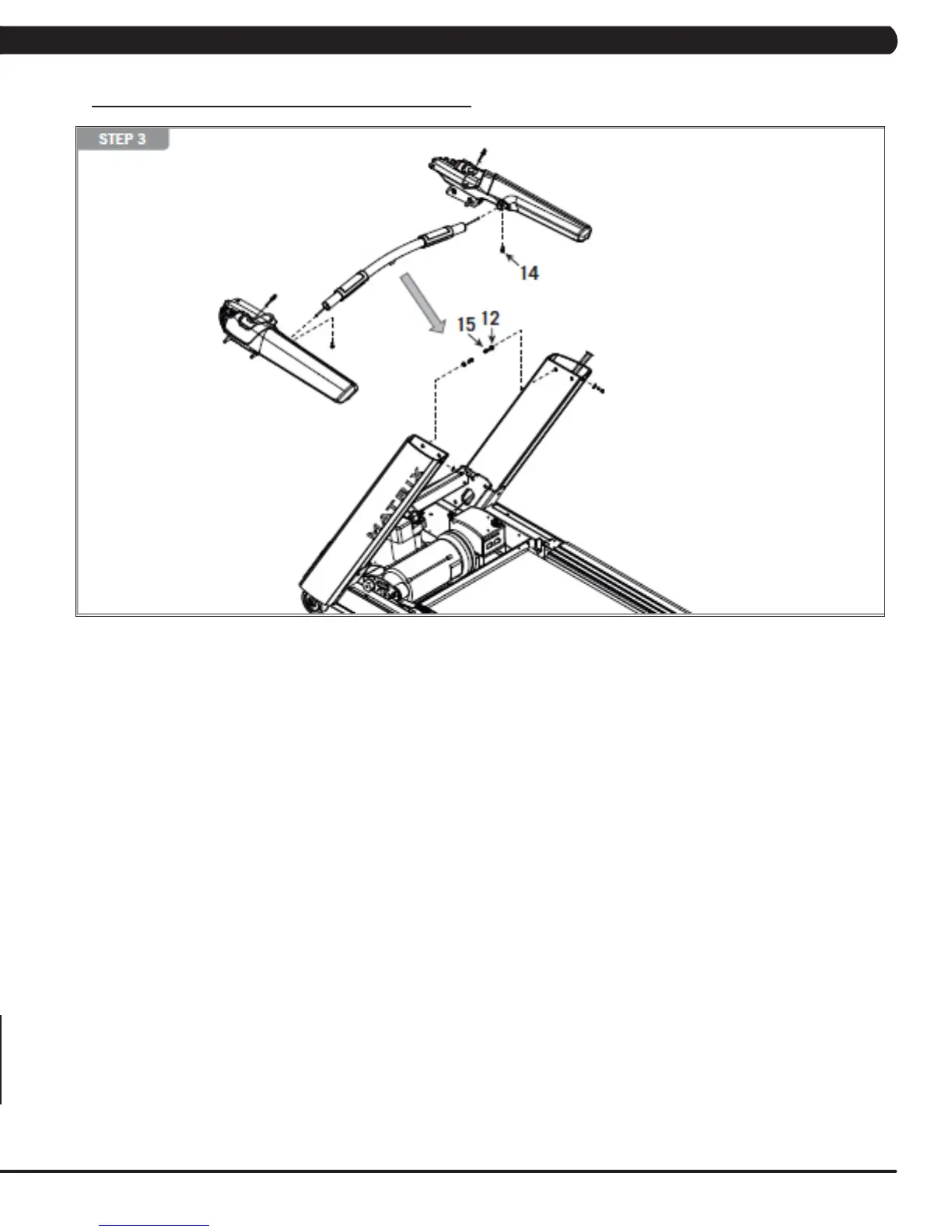

Open Black & White Assembly Bag. Assemble the HR handlebar to the left and right handlebars using item 14 - hex head cap screw. Fasten
the contact HR handlebar assembly to the console masts using item 15 - button head screw and item 12 - flat washer.
Pull the HR wires through the handlebar using the wire pull. Pull the mast wire through the handlebar.
Assembly tip: Look at the labels on the HR wire coming from the HR handlebar to ensure that contact with the left and right handlebars are
assembled in the proper orientation.
