10.3 ASSEMBLY INSTRUCTIONS - CONTINUED

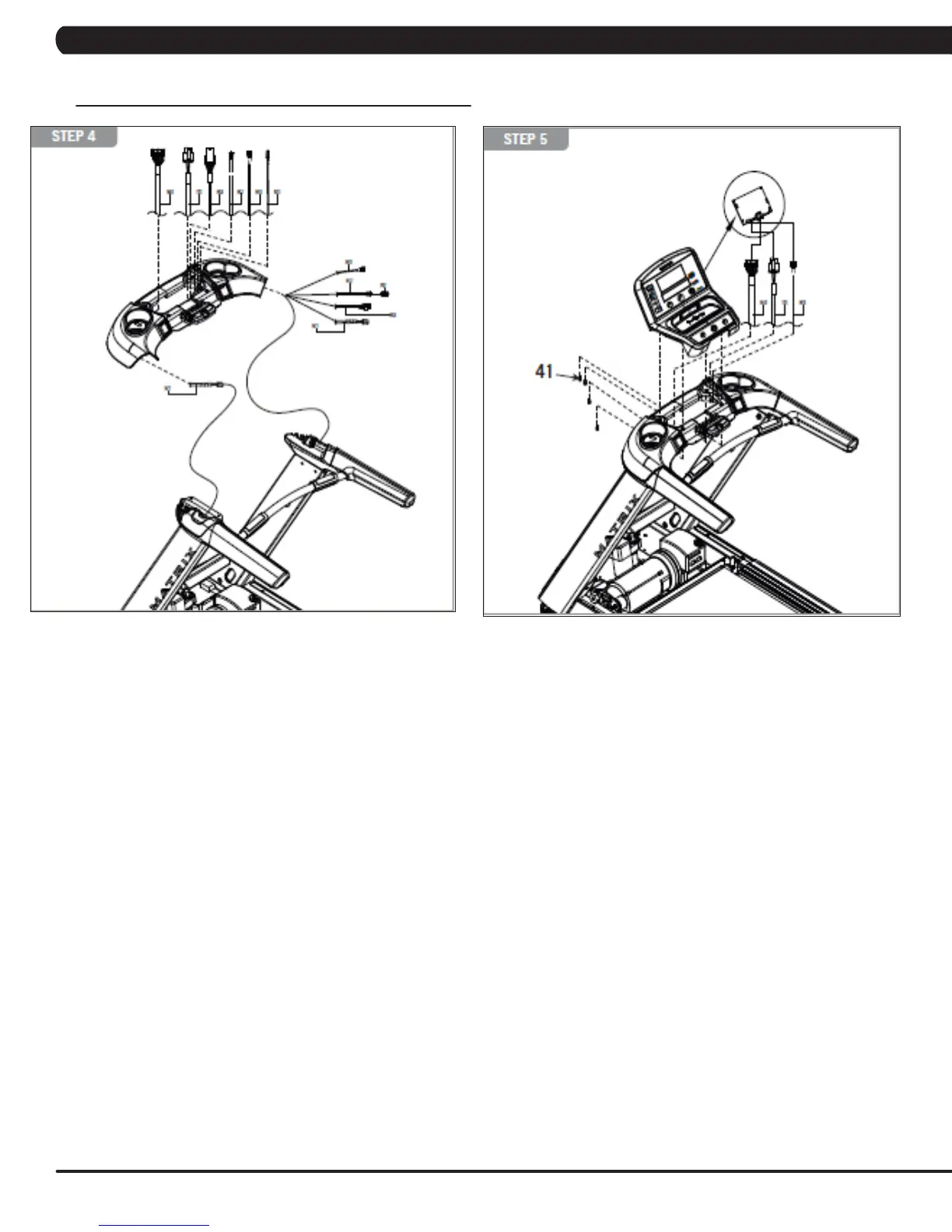

Open Black Assembly Bag. Assemble the console frame to the
handlebars using item 14 - hex head cap screw. Be sure to route
the console cables down the console mast and connect the HR
handlebar wires. Make all appropriate wire connections within the
motor compartment.
NOTE: For the T1xe, only two connections need to be made in the
motor compartment.
Open Yellow Console Assembly Bag. Make the appropriate color
coded wire connections to the faceplate then assemble to the
console frame using item 41 - hex head cap screw.
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
To Next Page
