10.4 MYE TV BRACKET INSTALLATION INSTRUCTIONS - CONTINUED
CHAPTER 10: TREADMILL SPECIFICATIONS AND ASSEMBLY GUIDE
13) Connect the coax extension cable to the cable coming from the base of the unit (Figure M).
14) Mount the TV to the bracket using 4 screws sent with the TV (Figure N).
15) Make sure that the tabs on the front plate are tucked behind the console faceplate to create a seamless look (Figure O).
16) Plug the coax cable into the port on the TV (Figure P).
17) Plug the power wire into the port on the TV (Figure Q).
18) Remove the 4 screws holding the console onto the console frame (Figure R).

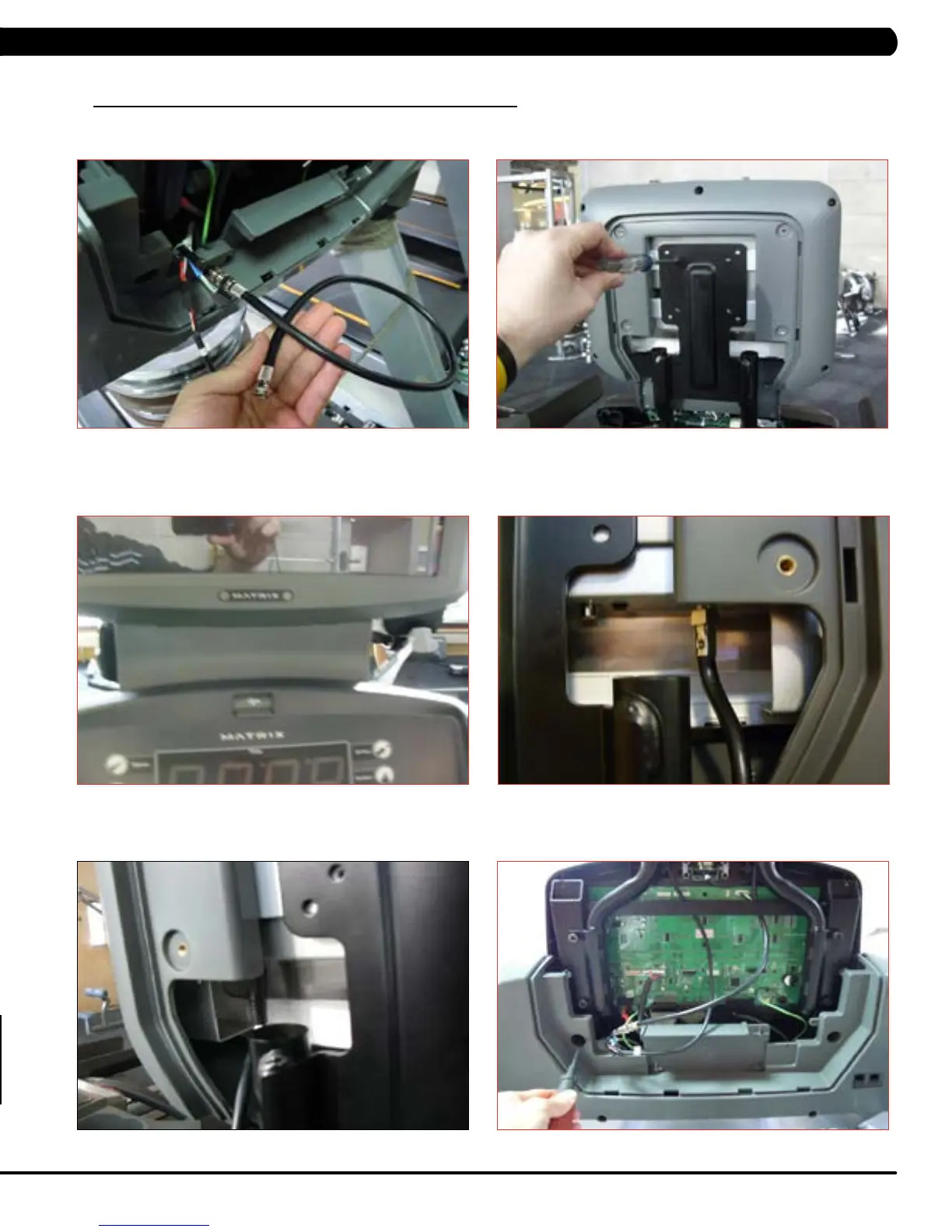

FIGURE O FIGURE P
FIGURE Q FIGURE R
FIGURE M FIGURE N
